18 meter steel cable
Roll-off safety
Automatic brake
Comes with a pulley
Product Code: HC0600E
EAN: 8720028059829
PRODUCT DESCRIPTION

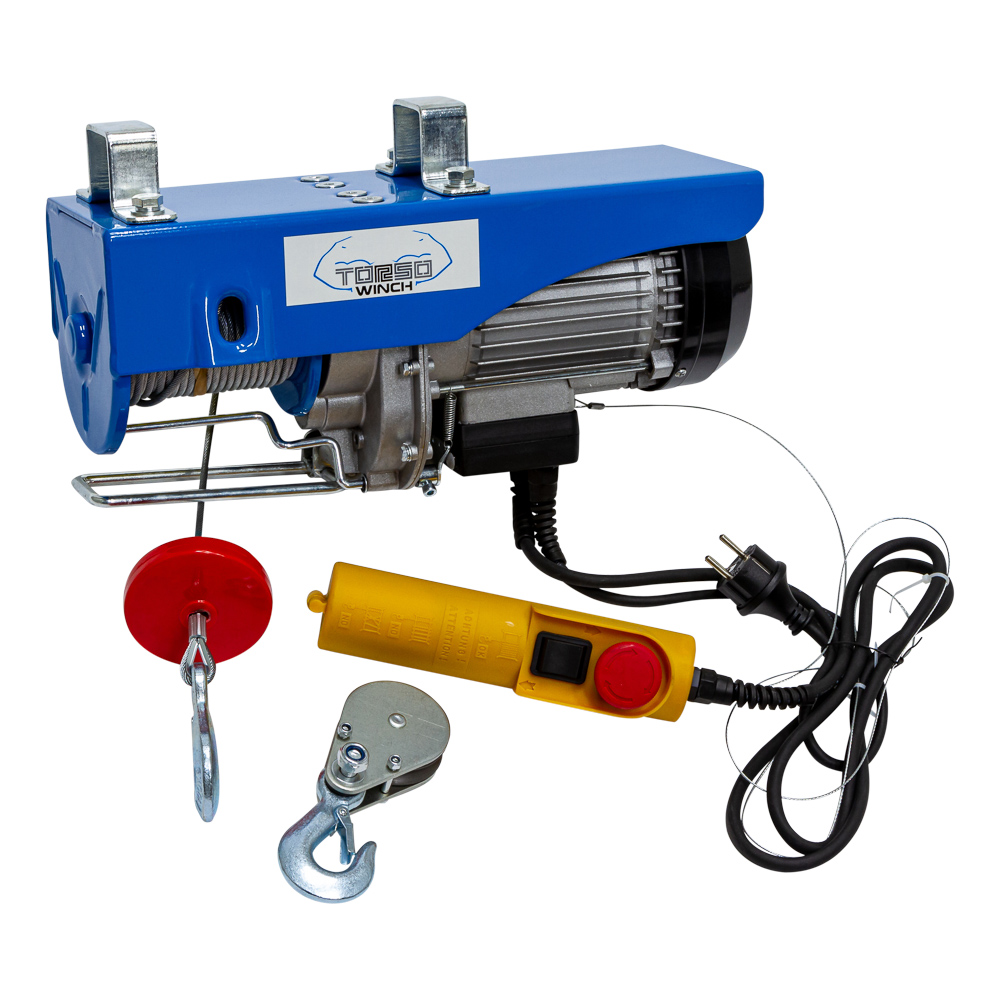

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 300kg / 600kg
lifting height = 18m / 9m
lifting speed = 8mpm / 4mpm
cable length = 18m
cable diameter = 4,5mm
length control cable = 1,5m
cable break resistance = 1500kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 1050W
bolt to bolt length = 190mm
bolt to bolt width = 100mm
Technical specifications
Dimensions and weights
- Weight =18.36Kg
- Product weight =18.0Kg
- Length =470.0mm
- Width =260.0mm
- Height =150.0mm
- Product Length =445.0mm
- Product Width =145.0mm
- Product Height =210.0mm
