PRODUCT DESCRIPTION

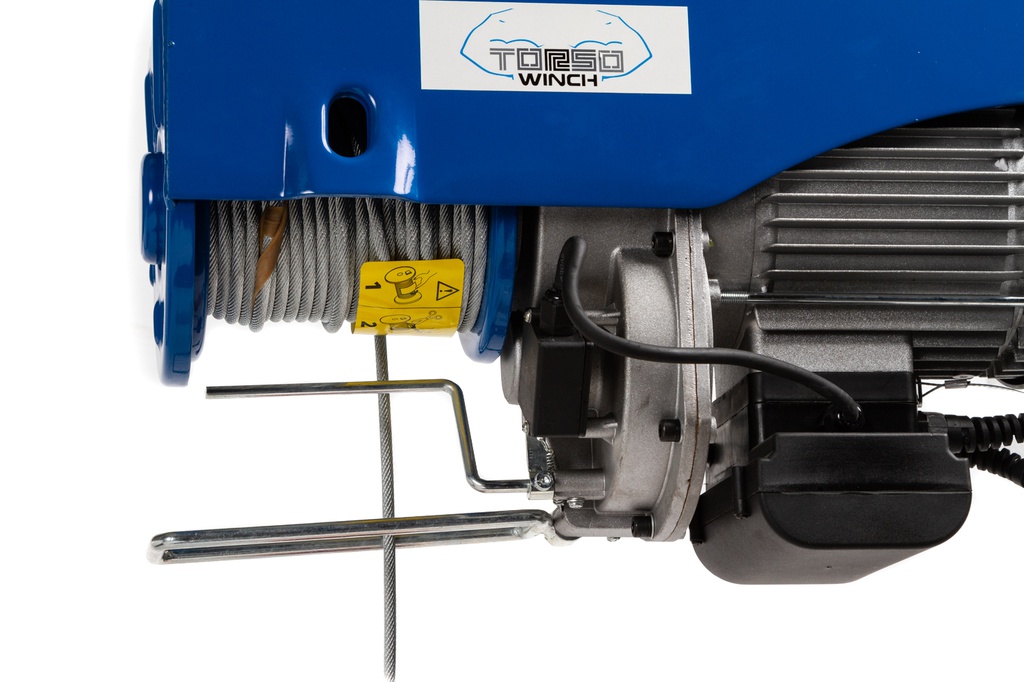

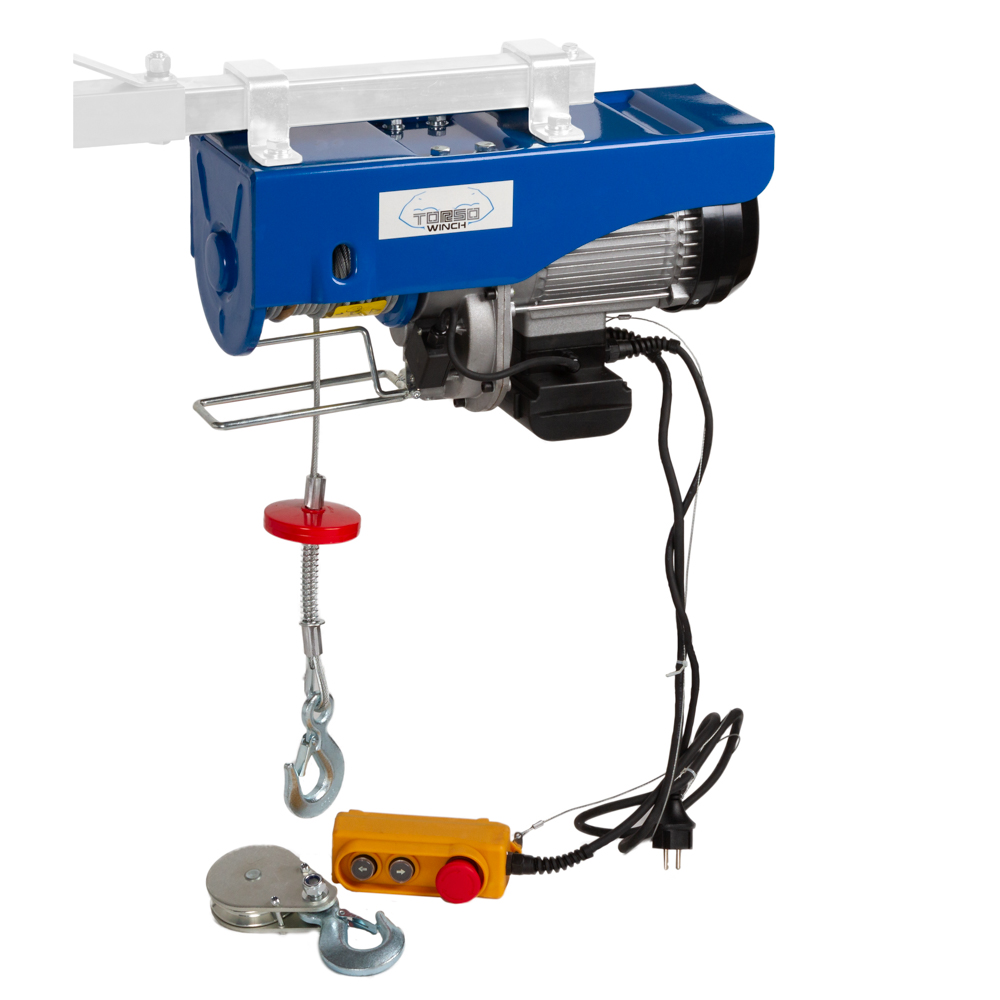

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 500kg / 990kg
lifting height = 18m / 9m
lifting speed = 8mpm / 4mpm
cable length = 18
cable diameter = 5,6mm
length control cable = 1,5m
cable break resistance = 2500kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 1600W
bolt to bolt length = 250mm
bolt to bolt width = 110mm
Technical specifications
Dimensions and weights
- Weight =34.0Kg
- Product weight =33.0Kg
- Length =550.0mm
- Width =260.0mm
- Height =120.0mm
- Product Length =500.0mm
- Product Width =175.0mm
- Product Height =270.0mm
