Wireless control up to +/- 35 meters
18 meter steel cable
Roll-off safety
Automatic brake
Comes with a pulley
Product Code: HC0990W
EAN: 8720028091515
PRODUCT DESCRIPTION

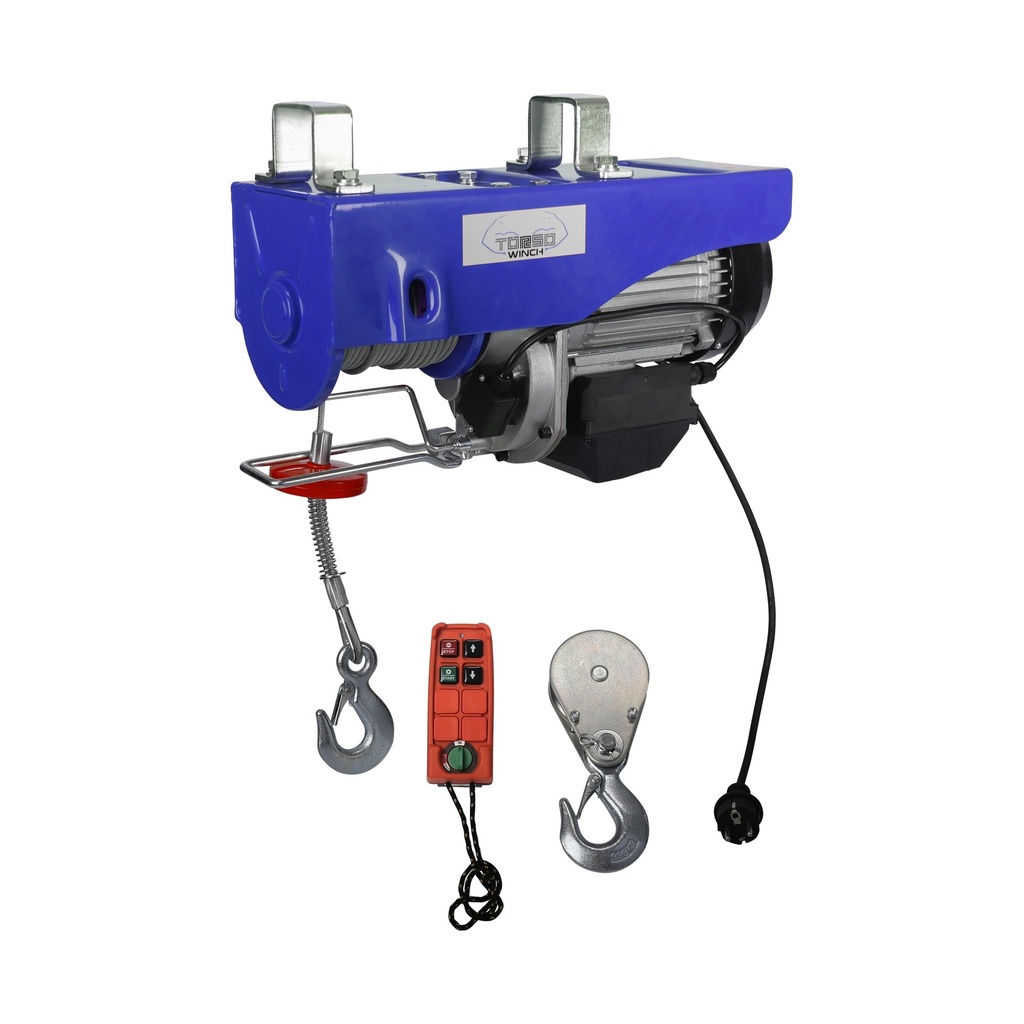

Electric hoist / hoisting winch / electric winch
This Torso lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
Using the wireless control, all the problems which usually occur due to the short operating cable, are history.
Technical specifications:
load capacity = 500kg / 990kg
lifting height = 18m / 9m
lifting speed = 8m/min / 4m/min
cable length = 18m
cable diameter = 5,6mm
cable break resistance = 2500kg
motor power = 1600W
voltage = 230V - 50Hz
mounting size center to center length = 250mm
mounting size center to center width = 110mm
Technical specifications
- Lifting capacity = 500 kg / 990 kg
- Voltage = 230V / 50 Hz
- Lifting height max. = 18 m / 9m
- Lifting speed loaded = 8m/min. / 4m/min
- Rope diameter = 5.6 mm
- Cable length = 18 m
- Mounting size center to center width / length = 110 mm / 250 mm
- Motor power = 450 W
- Cable break resistance = 2500 kg
Dimensions and weights
- Weight =32.0Kg
- Product weight =30.5Kg
- Length =550.0mm
- Width =250.0mm
- Height =335.0mm
- Product Length =480.0mm
- Product Width =180.0mm
- Product Height =270.0mm
