MIG welding machine 140A
Product Code: HDMIG140
EAN: 8720028142767
PRODUCT DESCRIPTION

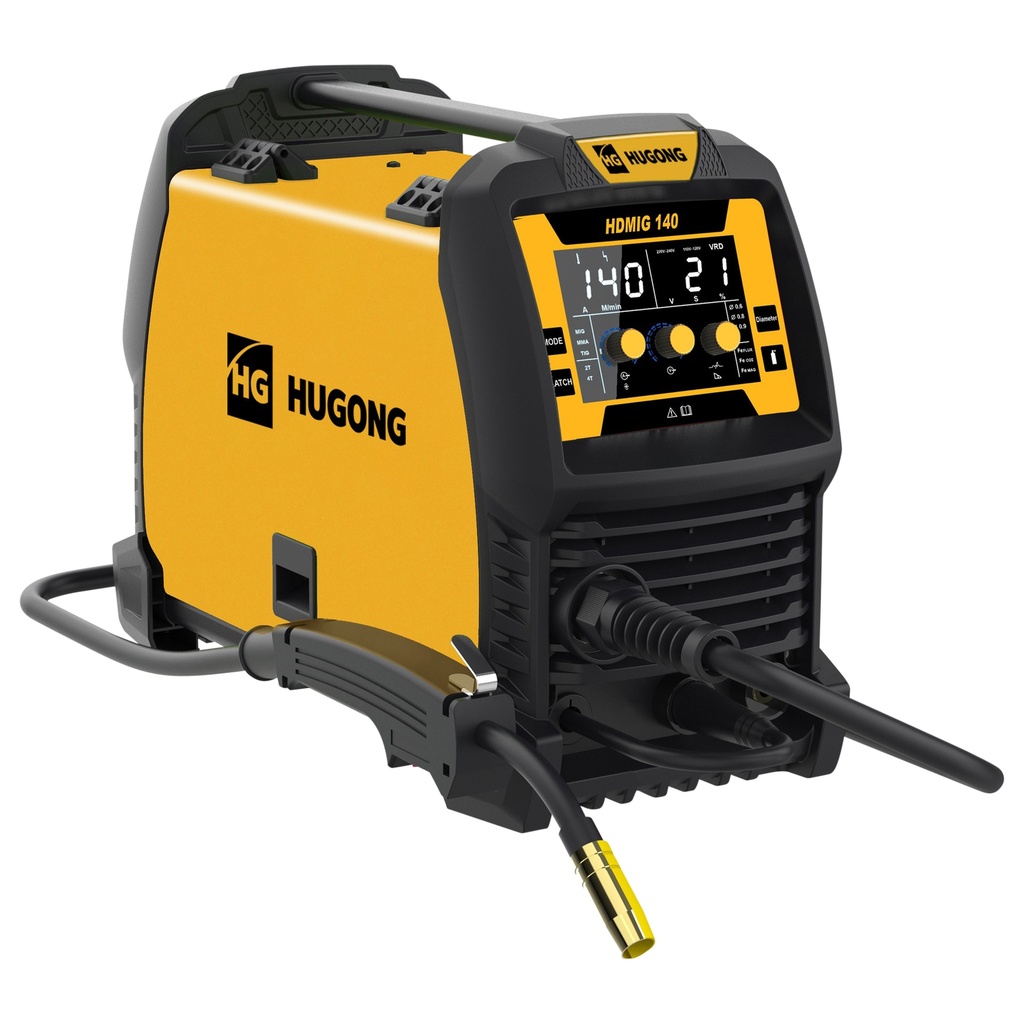

The Hugong HDMIG140 is a compact 3-in-1 inverter welder suitable for MIG/MAG, MMA (stick), and Lift-TIG welding. Its lightweight and portable design makes it ideal for mobile use.
Equipped with IGBT waveform technology and a clear HD LED display, this machine allows precise adjustment of arc settings. The HDMIG140 can weld steel, stainless steel, aluminium, and flux-cored wire, and is especially well-suited for thin sheet metal work.
- 3-in-1 welding process: MIG, MMA, and Lift-TIG
Versatile for different environments with multiple welding modes in one machine.
- Compact design
Lightweight and portable, perfect for on-site welding or tight spaces.
- HD LED display with digital waveform control
User-friendly interface with stable arc performance thanks to digital control.
- ABS shock-resistant housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty upon registration
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- MIG torch EP1500 – 2 meters
- Ground clamp with 3-meter cable (16 mm², 10–25 DINSE)
- 4-meter gasinlet hose with NW5 coupling
- Wire feed rollers 0.8V/0.9K (flux-cored) - 0.8K/0.9K - 0.8V/1.0V (solid)
- Contact tips: 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm
Technical specifications
- Frequency = 50/60 Hz
- Voltage = 230V - 1 Phase
- No load voltage = 60V
- Input power = 4.37kVA
- Rated input current = 19A
- Duty cycle @20C = 40% - 140A
- Duty cycle @40C = 20% - 140A
- Welding current range = MIG 30 - 140A / MMA 30 - 115 / TIG 25 - 140A
- Isolation class = IP21S
Dimensions and weights
- Weight =13.85Kg
- Product weight =10.5Kg
- Length =600.0mm
- Width =320.0mm
- Height =450.0mm
- Product Length =495.0mm
- Product Width =217.0mm
- Product Height =380.0mm
