Product Code: HMJ08TJ
EAN: 8720028063147
PRODUCT DESCRIPTION

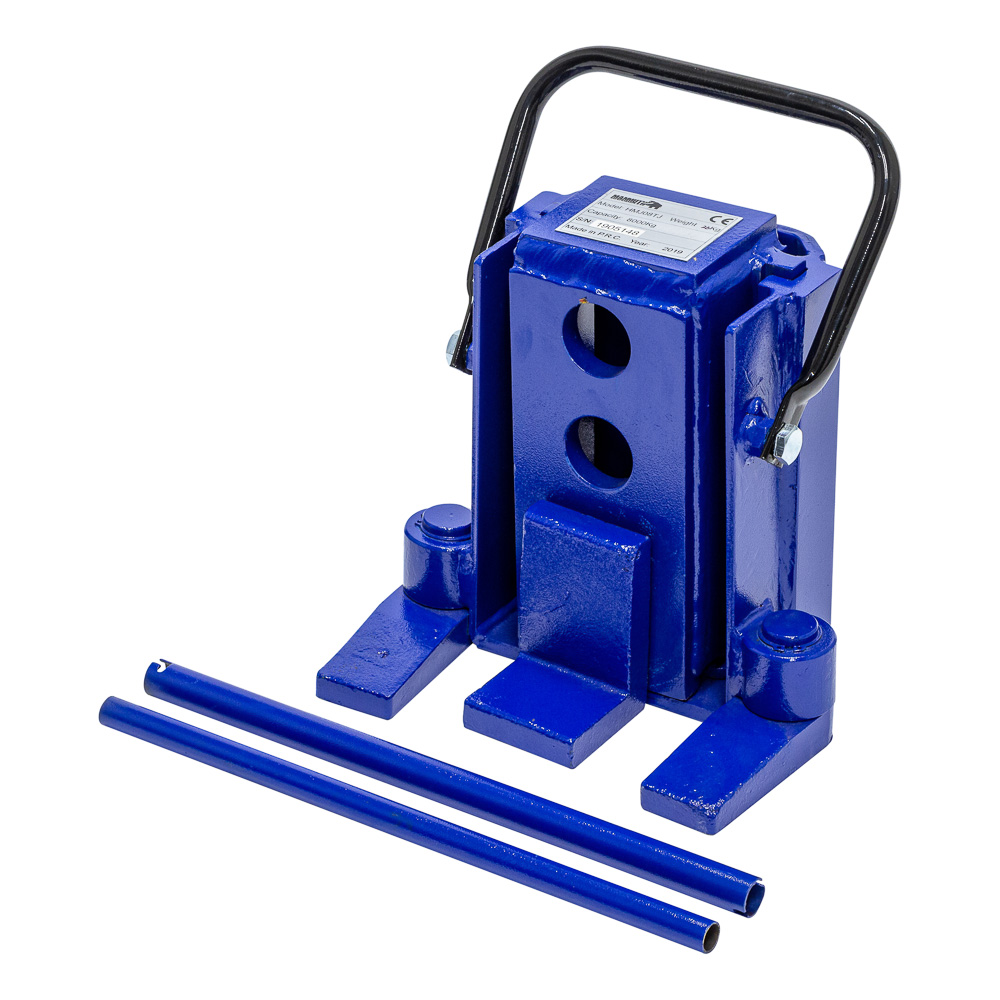

Hydraulic machine toe jack
swivel foot
capacity head = 10 ton
capacity foot = 8 ton
lifting stroke = 140mm
lifting range head = 269-409mm
lifting range foot = 20-160mm
claw height = 20mm
Technical specifications
Dimensions and weights
- Weight =29.0Kg
- Product weight =28.5Kg
- Length =310.0mm
- Width =300.0mm
- Height =280.0mm
- Product Length =250.0mm
- Product Width =270.0mm
- Product Height =420.0mm
