PRODUCT DESCRIPTION

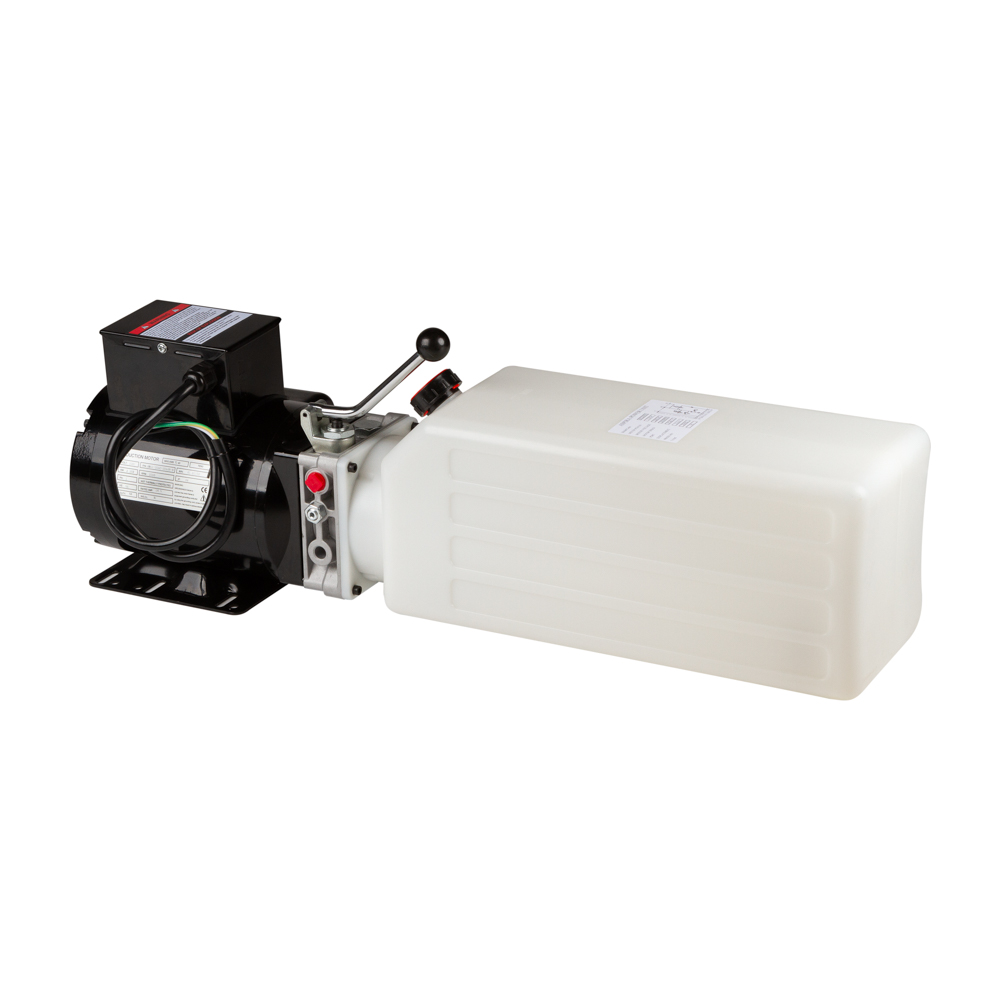

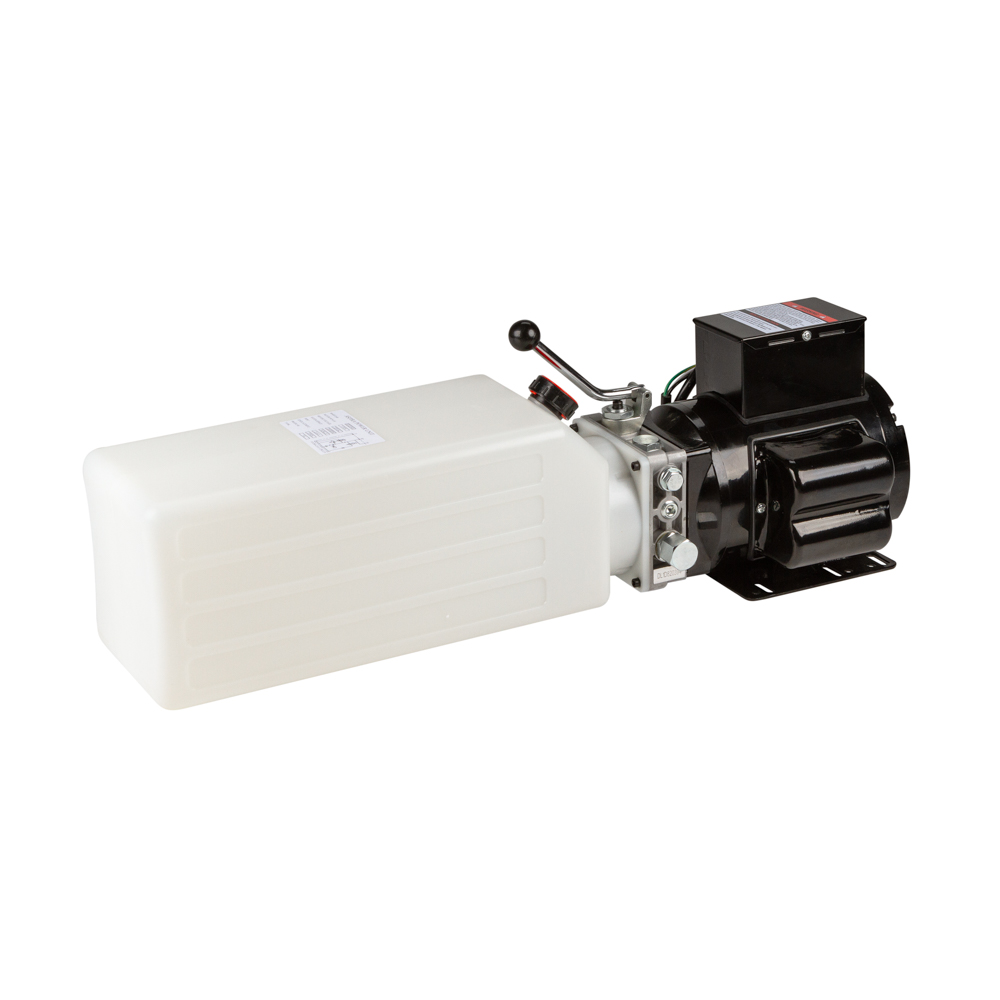

Hydraulic pump unit / hydraulic power pack
motor power = 2,2kW
voltage = 230V AC
displacement = 2.1 cc/r
max. pressure = 200bar (20MPa)
tank capacity = 10L
motor speed = 2850rpm
output = M14 x 1,5
Technical specifications
Dimensions and weights
- Weight =22.0Kg
- Product weight =21.0Kg
- Length =875.0mm
- Width =275.0mm
- Height =320.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
