Product Code: HP24VD
EAN: 8720028075928
PRODUCT DESCRIPTION

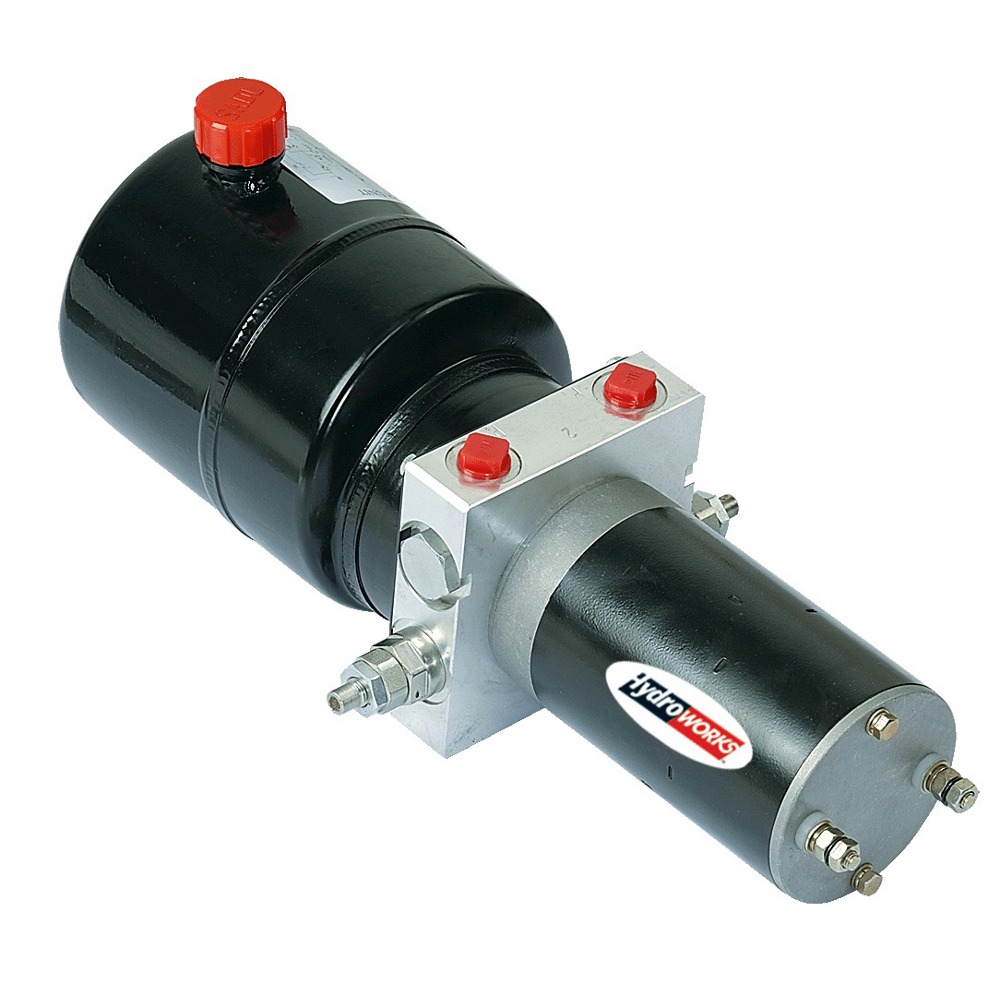

Bi-directional power unit
bi-directional motor design eliminates the need for a directional control valve
- motor voltage = 24V DC
- motor power = 0,8kw
- flow = 4 LPM
- pressure range = 35 - 200bar
- relief presetting = 170bar
- tank size = 1,4L
Technical specifications
Dimensions and weights
- Weight =10.2Kg
- Product weight =8.7Kg
- Length =460.0mm
- Width =200.0mm
- Height =165.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
