Product Code: HP2A10
EAN: 8720028075911
PRODUCT DESCRIPTION

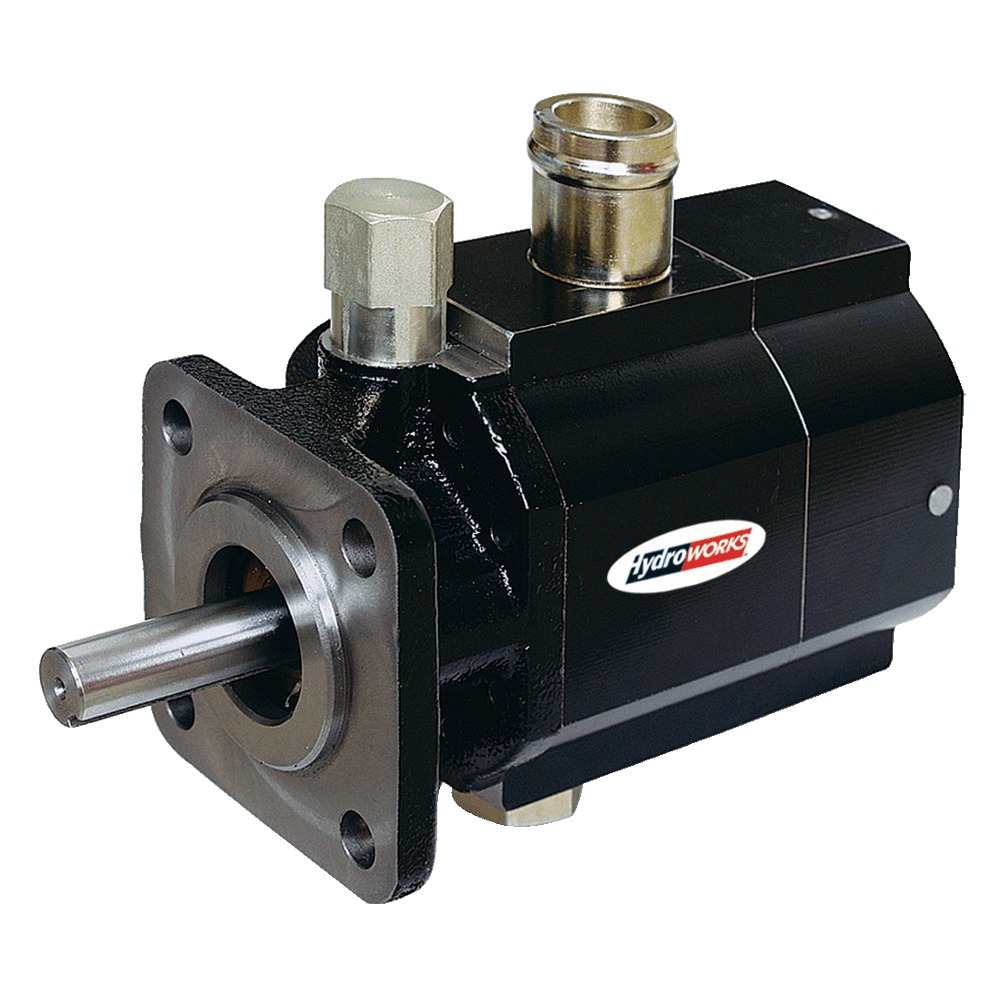

Gear pump 2 stage
aluminum contstruction
large displacement at low pressure, small displacement at high pressure
max. pressure is 200bar
range is 500 - 3600RPM
excellent for log splitters, pressers and trash compactors
- gear displacement:
low pressure = 60LPM
high pressure = 15LPM
- required power = 11PK
- shaft = 12,5mm
- inlet = 1'' NPT
- outlet = 1/2'' NPT
Technical specifications
Dimensions and weights
- Weight =5.0Kg
- Product weight =4.3Kg
- Length =0.0mm
- Width =0.0mm
- Height =0.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
