Bend angle up to 200 degrees
Ergonomic working height
Product Code: HPB38
EAN: 8720028045037
PRODUCT DESCRIPTION

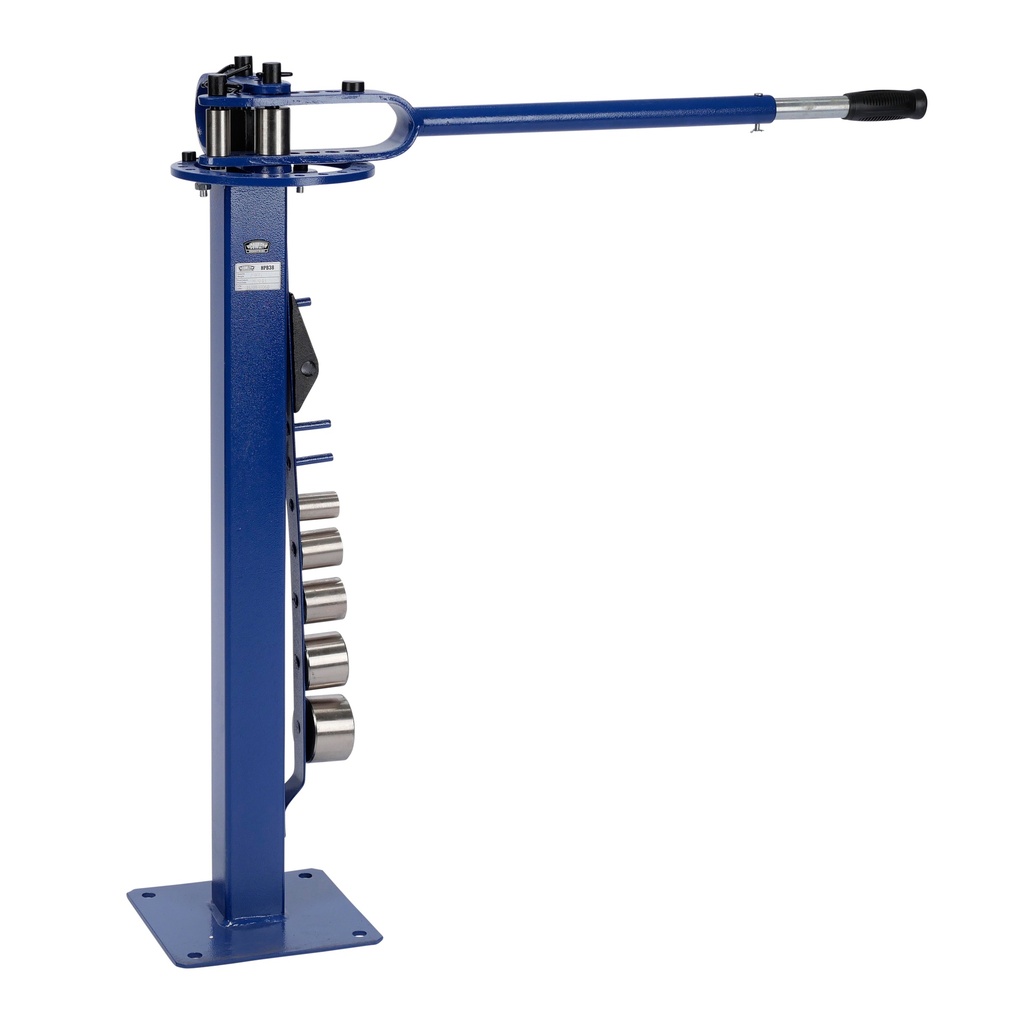

Manual metal bender / bending machine
This manual bender is suitable for bending flat, round and square materials. Comes with 7 bending rolls.
Technical specifications:
capacity steel = 8 x 32mm / 6 x 50mm
bending angle = 0 - 200 degrees
handle length = 610mm
Diameter of the 7 rolls:
25.4mm / 1"
31.8mm / 1-1/4"
38.1mm / 1-1/2"
44.5mm / 1-3/4"
50.8mm / 2"
63.5mm / 2-1/2"
76.2mm / 3"
Technical specifications
Dimensions and weights
- Weight =24.0Kg
- Product weight =22.5Kg
- Length =880.0mm
- Width =260.0mm
- Height =260.0mm
- Product Length =980.0mm
- Product Width =215.0mm
- Product Height =980.0mm
