[ICC105B] Cable cutter Body 105mm 120kN guillotine jaws

€ 0.00 € 1,000.00

  • Voltage
  • Battery voltage
  • Stroke
  • Cutting cycle
  • Cutting force
  • Ambient temperature
  • Cutting range
  • Cable type
  • Charging time
  • Oil capacity
  • Oil type
  • OLED screen
  • One-button operation
  • Swivel head 350°
  • Hard steel cutting jaws
  • Guilotine scissors

Shop equipment / Handtools / Pliers / Cable cutters

Product Code: ICC105B

EAN: 8720028111466

PRODUCT DESCRIPTION

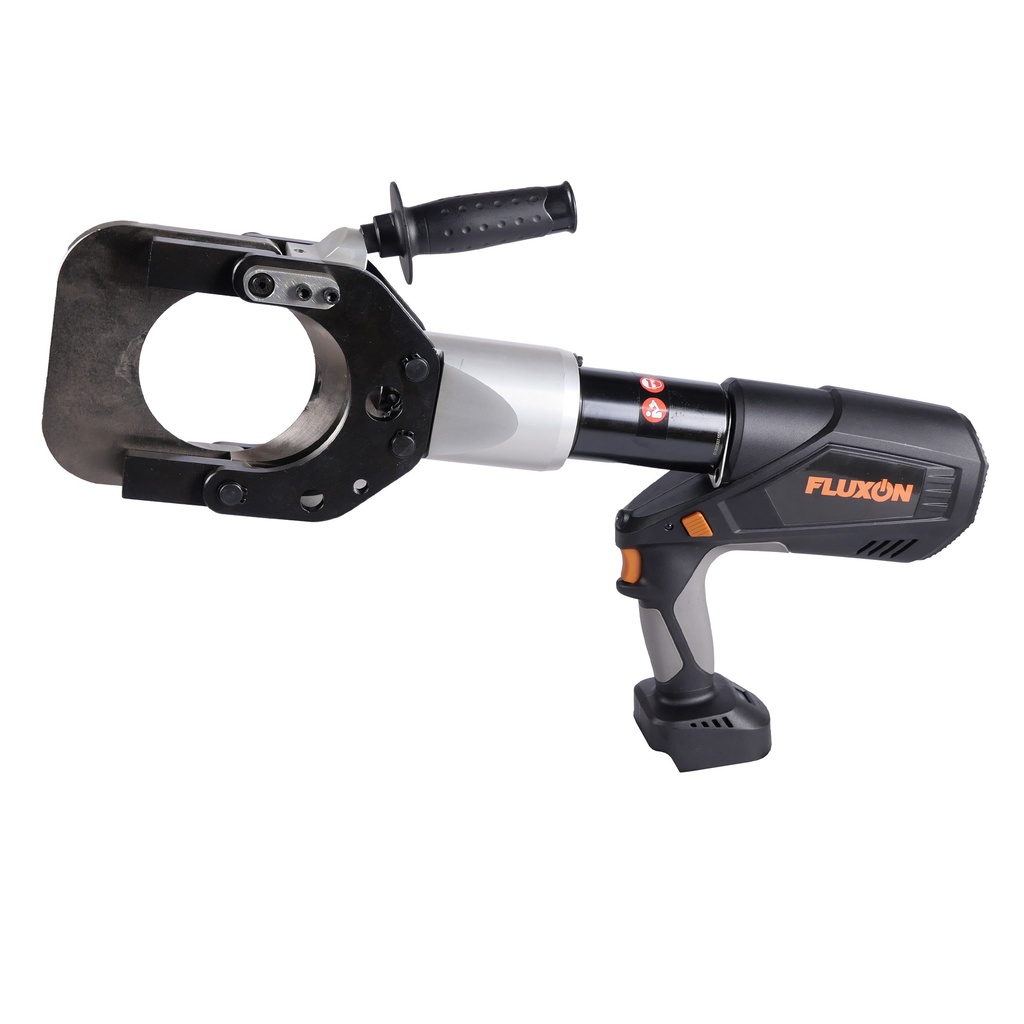

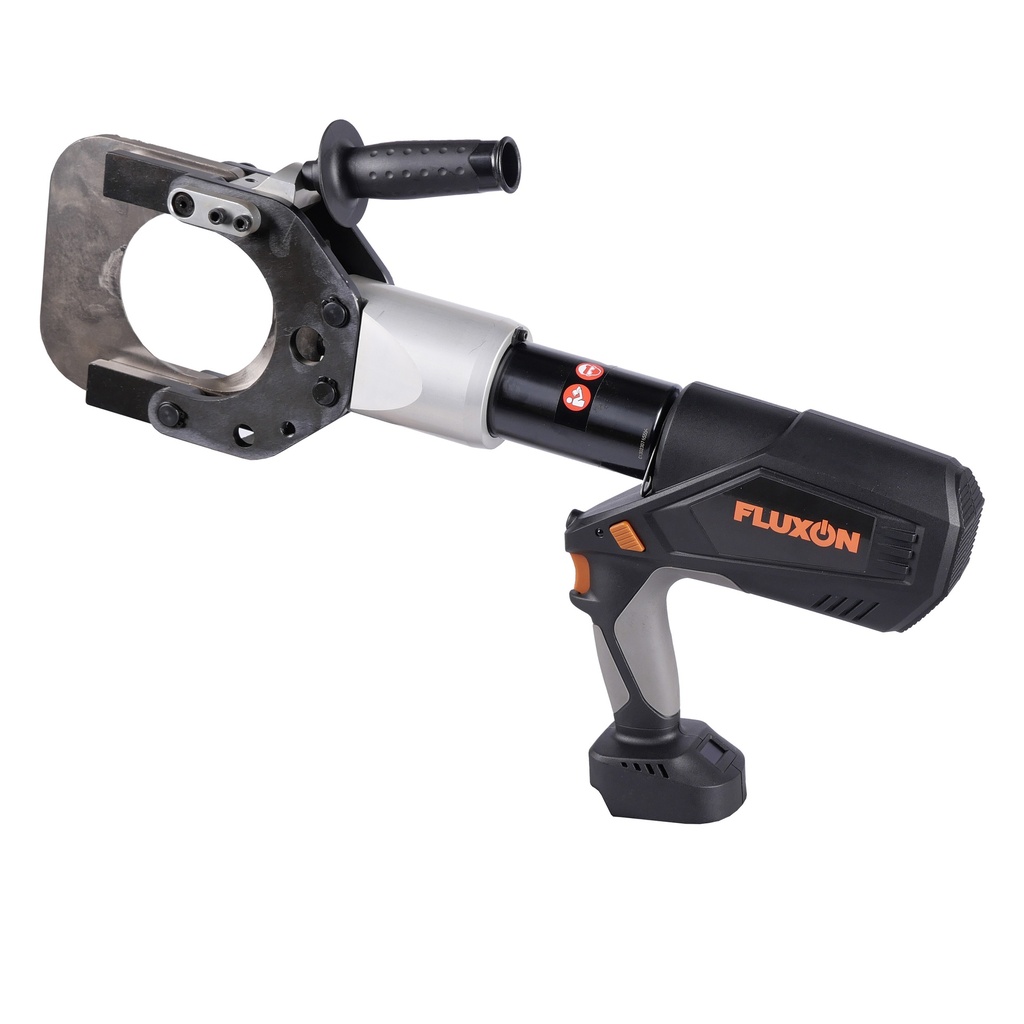

This powerful Cable cutter tool Body 120kN from Fluxon can effortlessly cut threw a diverse range of material including single Cu and Al core cables, light weight armored Cu and Al cables.

The tool has a closed  cutting head with interlockable bolt for added safety.

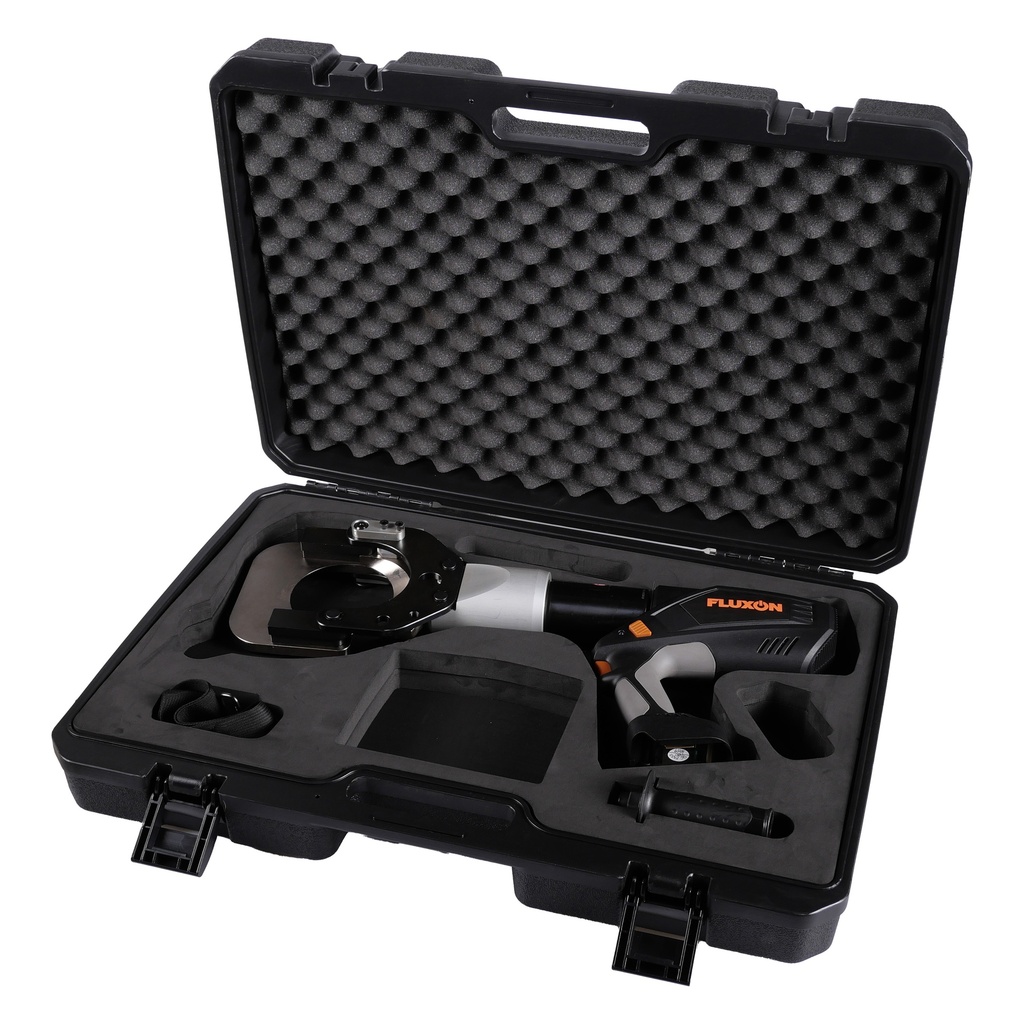

This body is supplied  in a sturdy storage case which has the space to add battery's and chargers and complete the kit.
This body is supplied in a sturdy storage case which has the space to add batteries and chargers and complete the kit.
With its OLED display and one-button operation,  you can easily control and monitor the tool's performance. The swivel head rotates 350°, allowing you to use the cable cutter in any direction with ease. The automatic retracting feature ensures quick and effortless retraction of the tool. And with its built-in LED light, you can work in low-light conditions without any hassle.
The unit is filled with oil type CH15 so It can operate in an ambient temperature range of -10~40°C, making it suitable for a wide range of working environments.
Set contains:
- 1x Cable cutter tool
- 1x O-ring set
- 1x Handle
- 1x Shoulder strap
- 1x Sturdy storage case.

Technical specifications

  • Voltage = 18V DC
  • Battery voltage = 18V / 4.0Ah
  • Stroke = 60 mm
  • Cutting cycle = 15 - 30 sec.
  • Cutting force = 120 kN
  • Ambient temperature = -10~40°C
  • Cutting range = 105 mm
  • Cable type = Cu/ Al cable, light weight armored cable
  • Charging time = ± 100 min.
  • Oil capacity = 0.25 L
  • Oil type = CH15

Dimensions and weights

  • Weight =16.95Kg
  • Product weight =9.413Kg
  • Length =715.0mm
  • Width =530.0mm
  • Height =170.0mm
  • Product Length =605.0mm
  • Product Width =65.0mm
  • Product Height =490.0mm
