PRODUCT DESCRIPTION

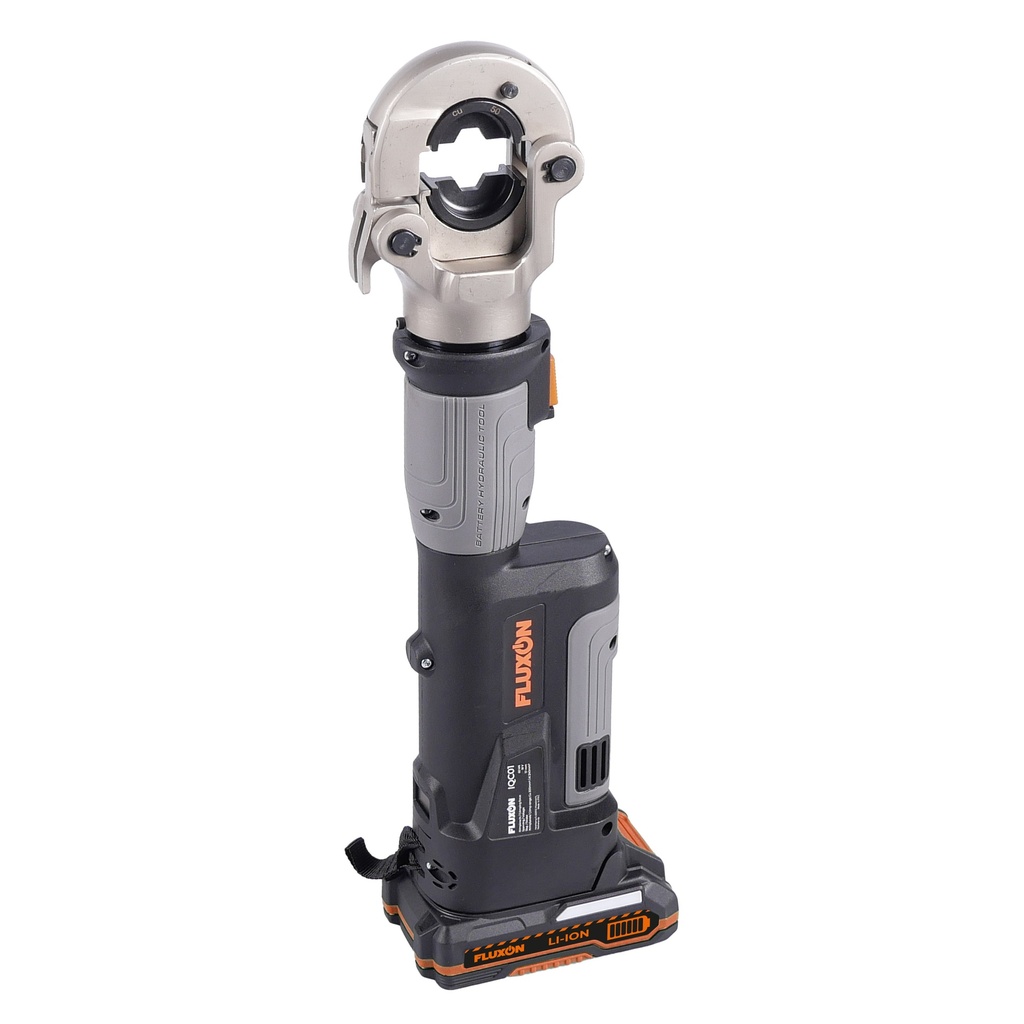

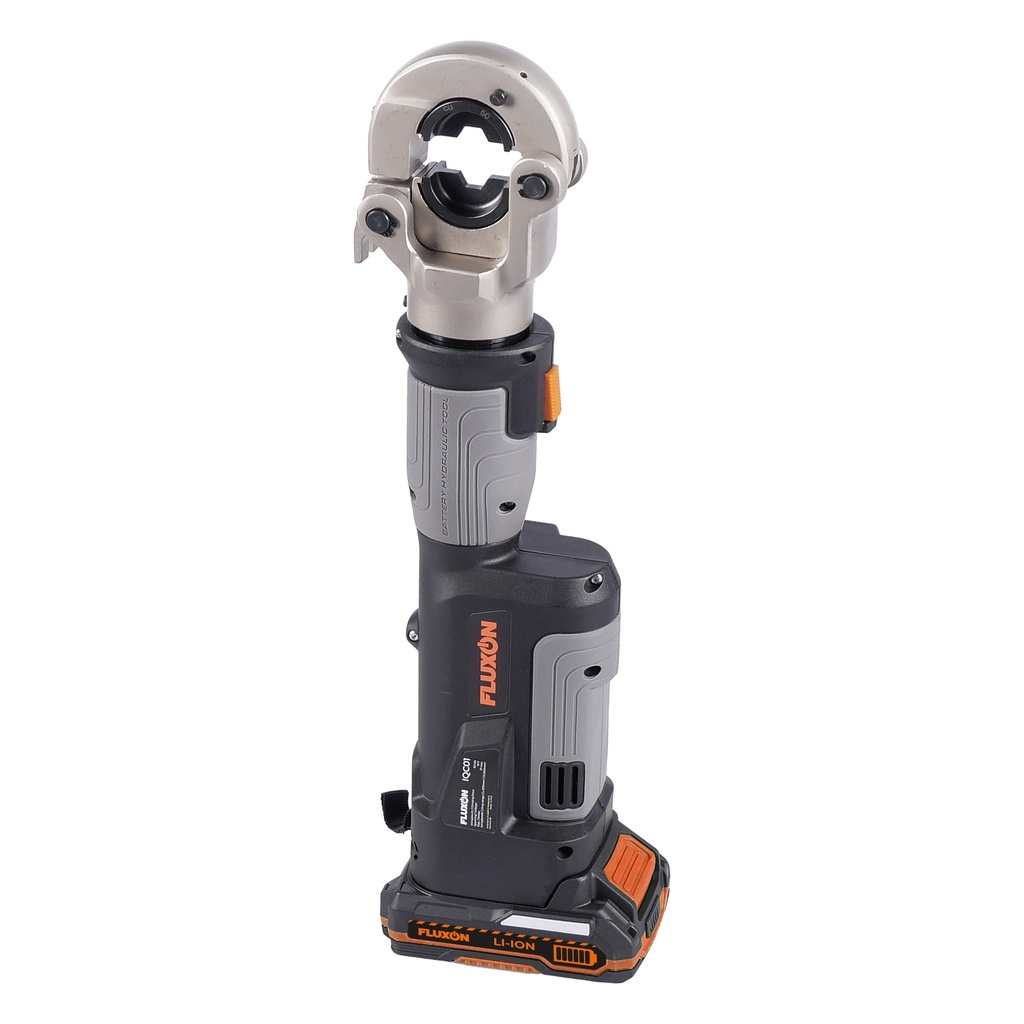

The Battery-powered cable crimping tool 60kN from Fluxon is a versatile tool that makes crimping cables easy. With features like an OLED display, one button operation, and a swivel head that can rotate 180 degrees, this tool is designed to make your job easier.

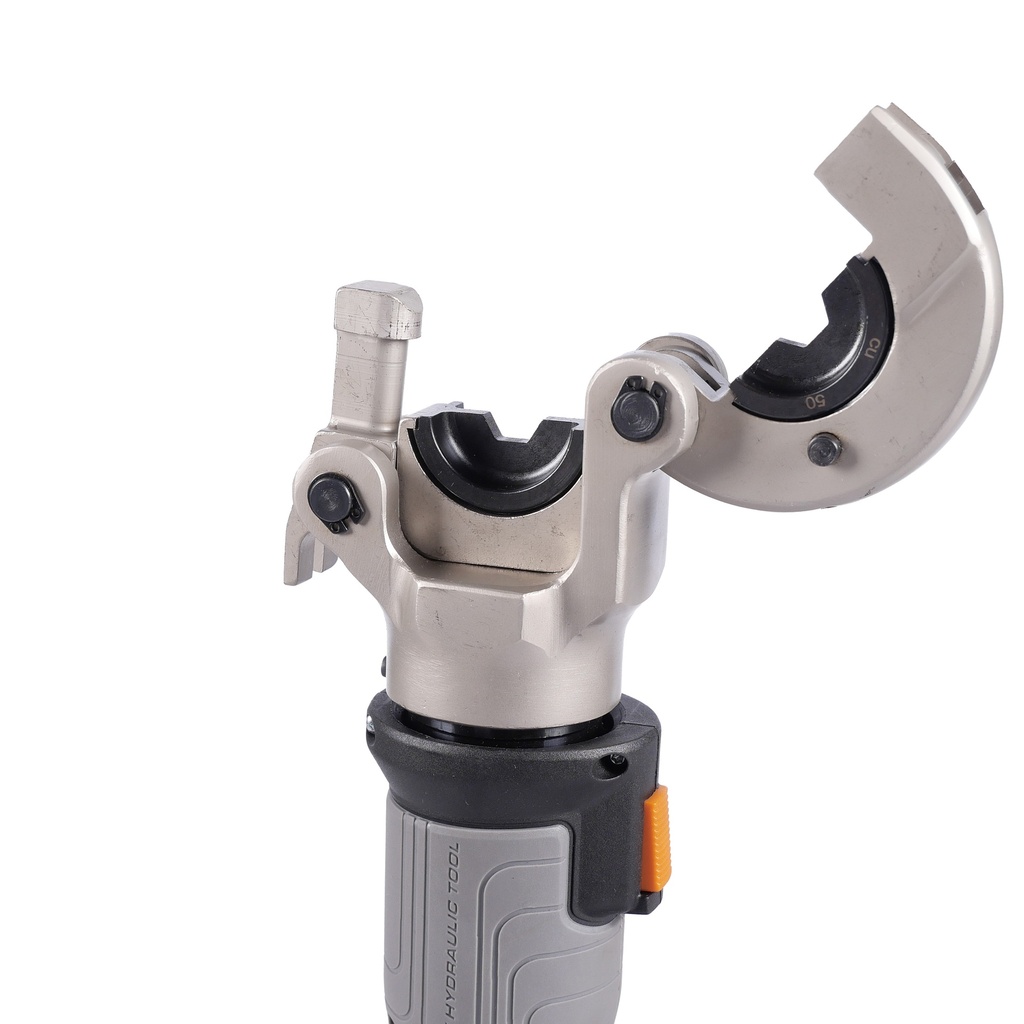

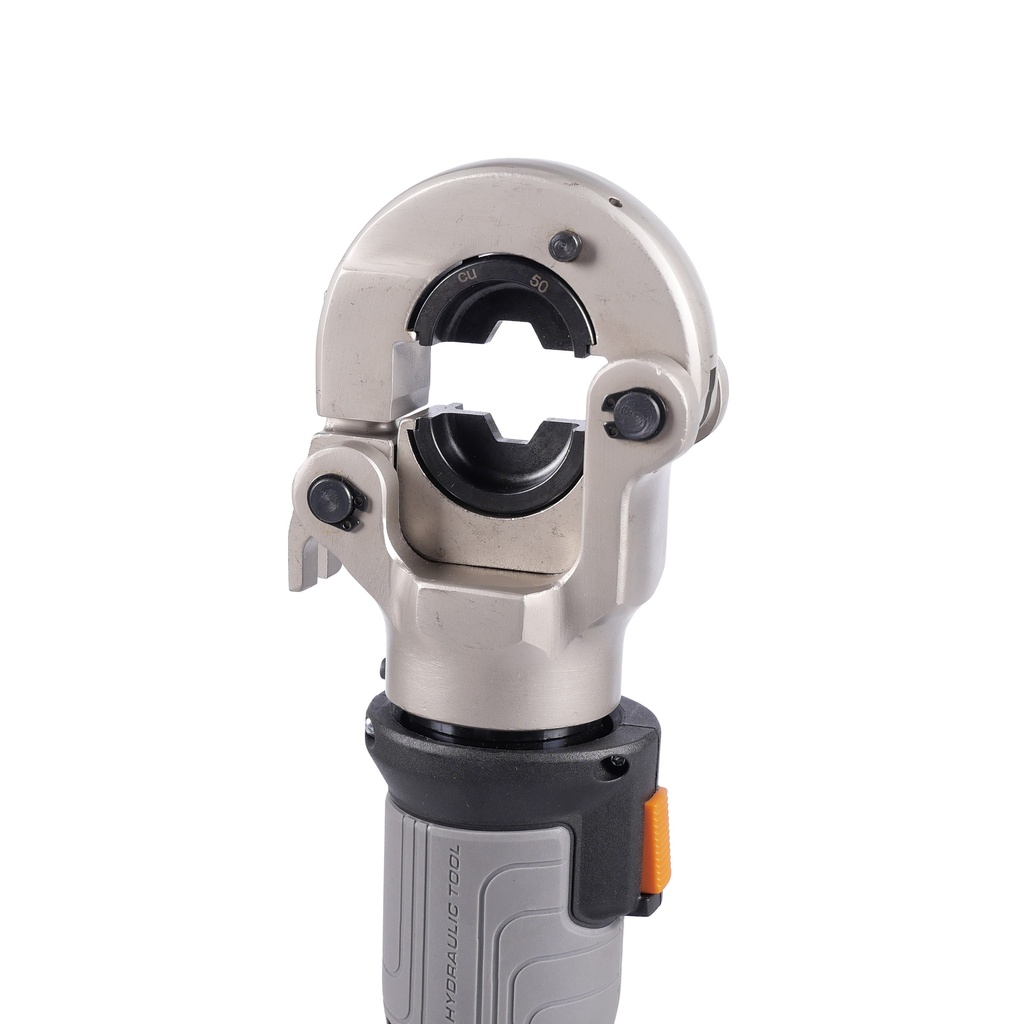

Not only does it have automatic retraction for quick and easy crimping, but it also allows for quick crimp dies change, saving time and effort. The tool uses CH15 oil type, with a stroke of 17 mm and a crimping force of 60kN. It can handle a crimping range of 300 mm² for Al cables and 240 mm² for other cables.
With a crimping cycle of 2.5 to 4 seconds, depending on the size of the cable, this tool offers fast and efficient crimping. The crimping dies included range from 16 to 300 mm², ensuring that you have the right size for any job.
Set contains:
- 1x Cable crimping pliers

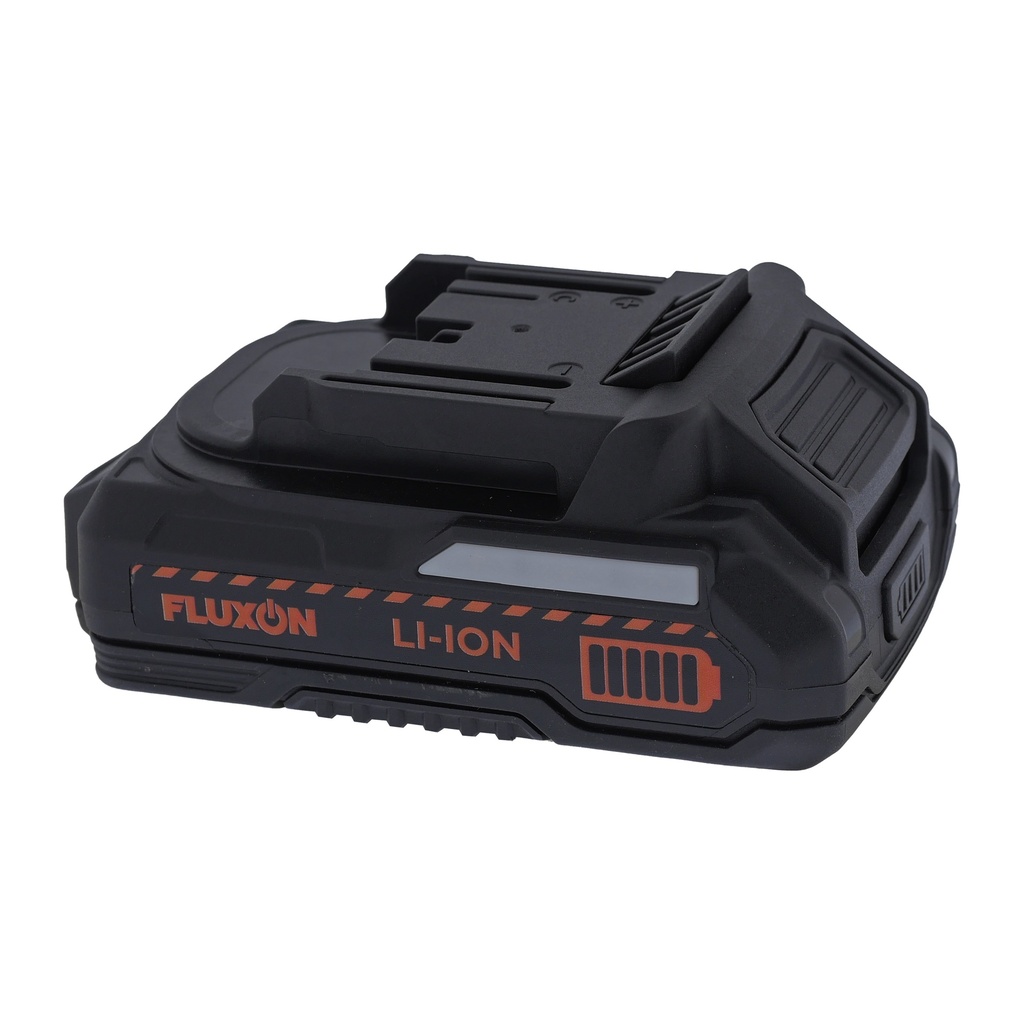

- 2x Batteries 18V 2.0Ah Li-Ion

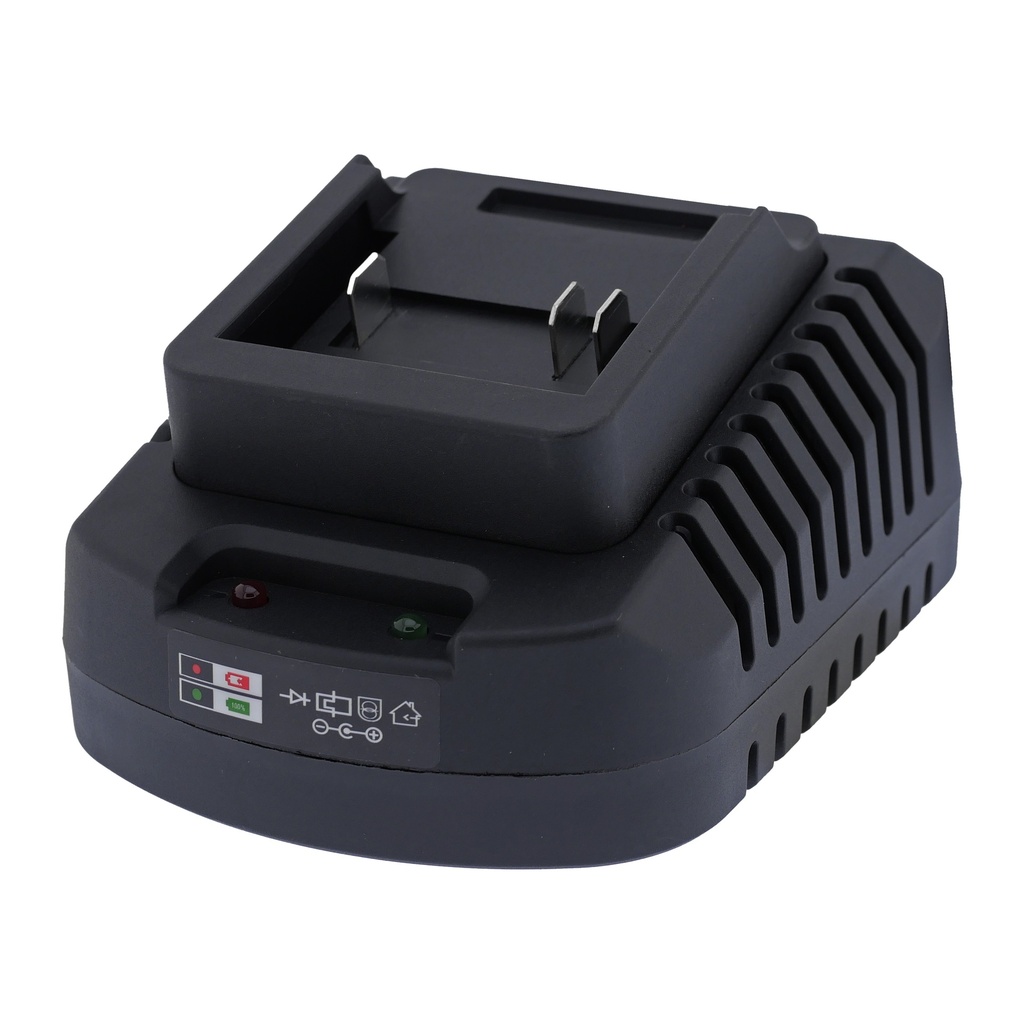

- 1x Battery charger
- 1x O-ring set
- 1x Shoulder strap

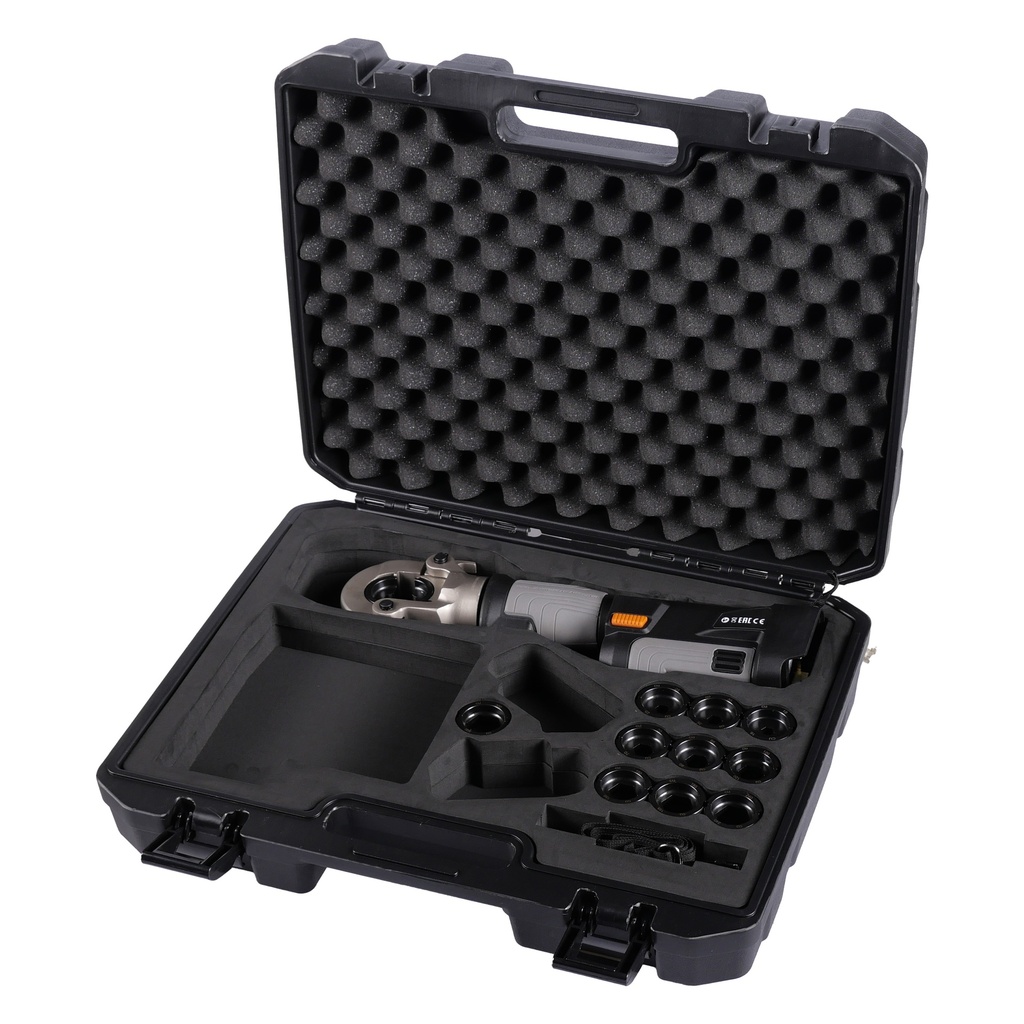

- 1x Sturdy storage case.
Technical specifications
- Voltage = 18V DC
- Battery voltage = 18V / 2.0Ah
- Stroke = 17 mm
- Ambient temperature = -10~40°C
- Crimping force = 60 kN
- Crimping range = 300 mm²/ Al 240 mm²
- Battery technology = Lithium-ion
- Charging time = ± 40 min.
- Crimping cycle = 2.5 - 4 sec. (depending on the cable size)
- Battery type = Sliding battery

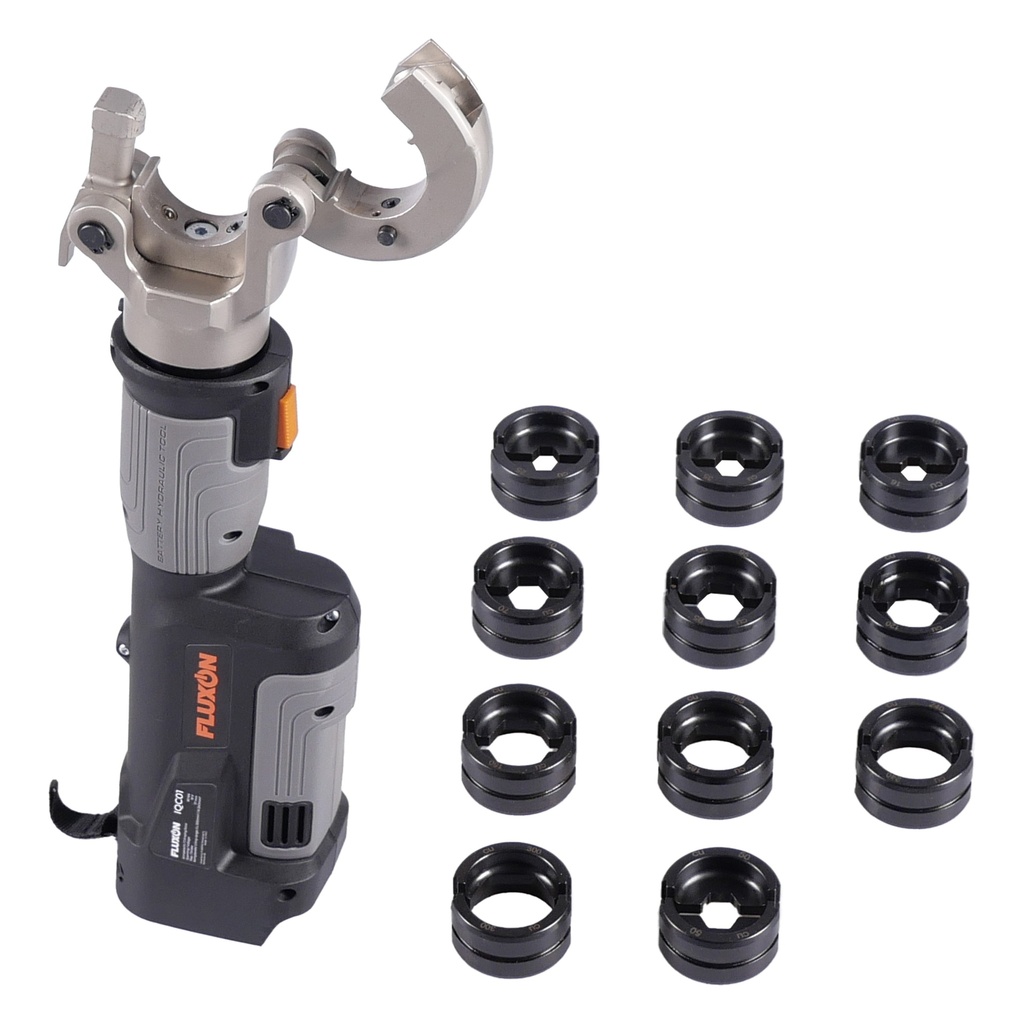

- Crimping dies = 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²
- Oil capacity = 0.06 L
- Oil type = CH15
- Charger = 230V / 2.3A
Dimensions and weights
- Weight =8.94Kg
- Product weight =3.58Kg
- Length =415.0mm
- Width =530.0mm
- Height =155.0mm
- Product Length =400.0mm
- Product Width =75.0mm
- Product Height =120.0mm
