PRODUCT DESCRIPTION

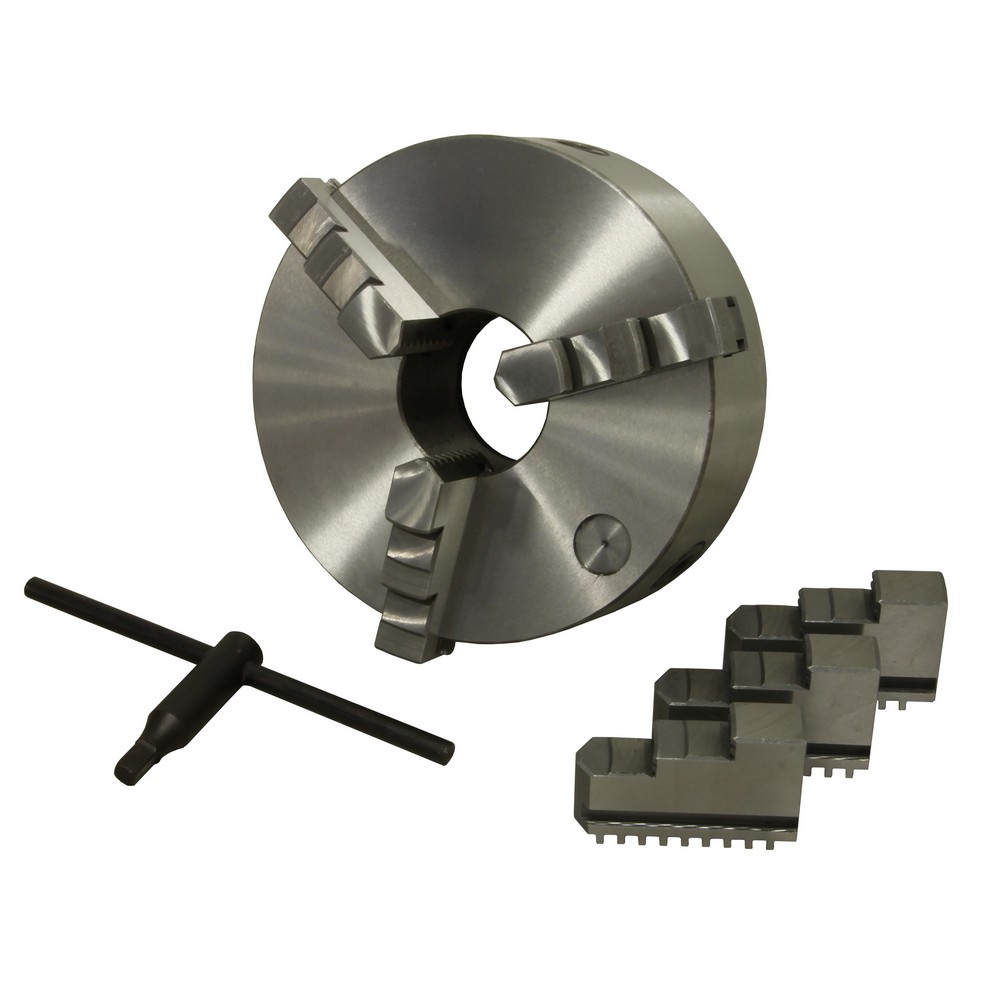

Self-centering three-jaw chuck
The metal workpiece is clamped using this chuck. The chuck is self-centering, so the claws are tightened all three at the same time. It is important that the material has a round, triangular or hexagonal profile.
diameter = 125mm
cylindrical fitting edge
comes with inside and outside set of claws
Technical specifications
Dimensions and weights
- Weight =5.0Kg
- Product weight =4.7Kg
- Length =165.0mm
- Width =165.0mm
- Height =160.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
