PRODUCT DESCRIPTION

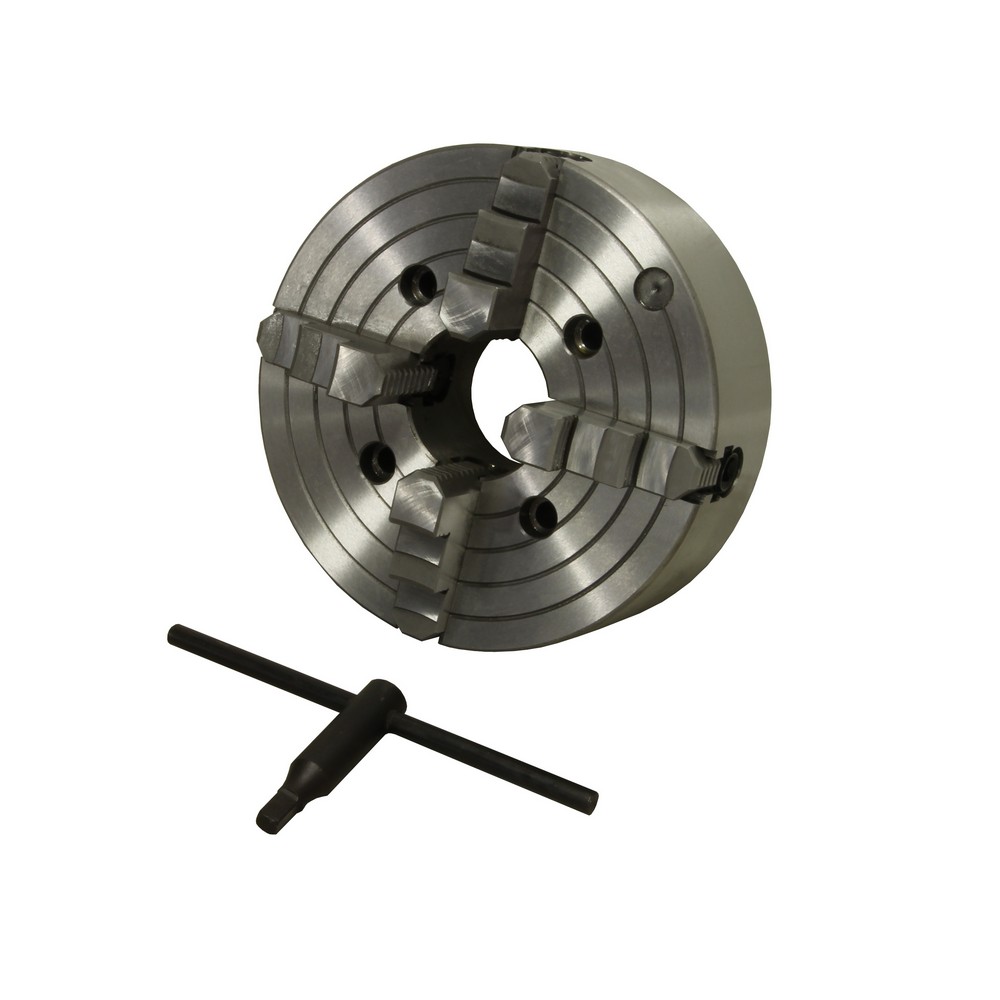

Independent four-jaw chuck
The metal workpiece is clamped using this chuck. The chuck is independent, so the claws can each be tightened separately and can also placed the other way around. This also allows material with a different shape to be clamped.
diameter = 125mm
cylindrical fitting edge
Technical specifications
Dimensions and weights
- Weight =5.0Kg
- Product weight =4.6Kg
- Length =140.0mm
- Width =140.0mm
- Height =100.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
