- High quality 3mtr extraction arm
- Disposable filter with high dust collection capacity
- H13 class HEPA filter Compliant with IFA W3 requirements
- Made in Europe
- Filter full indicator
Product Code: LDA01
EAN: 8720028116058
PRODUCT DESCRIPTION

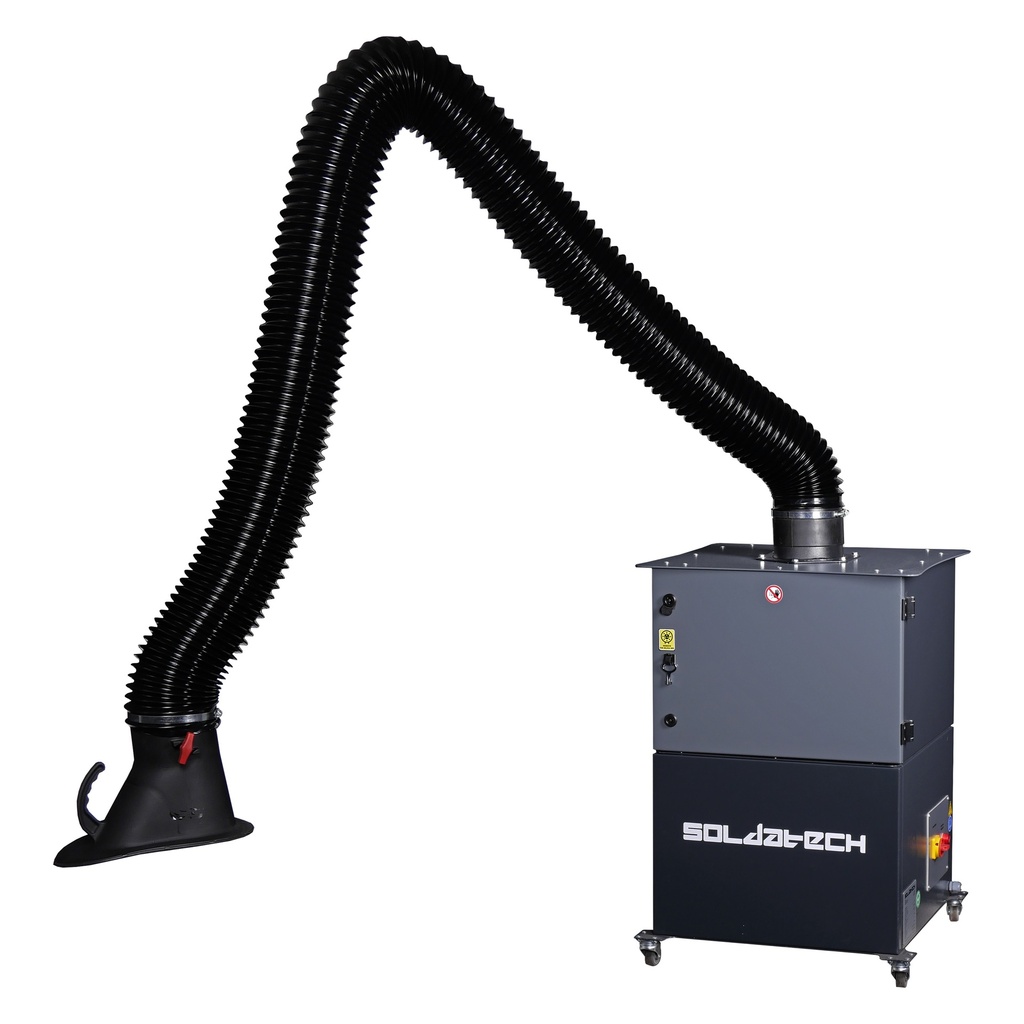

This mobile welding fume extractor from Soldatech is a reliable solution for maintaining a safe and healthy working environment. With its efficient 0.75 kW motor capable of handling 1950 m³/h of air flow, this extractor is designed to effectively capture and remove welding fumes.

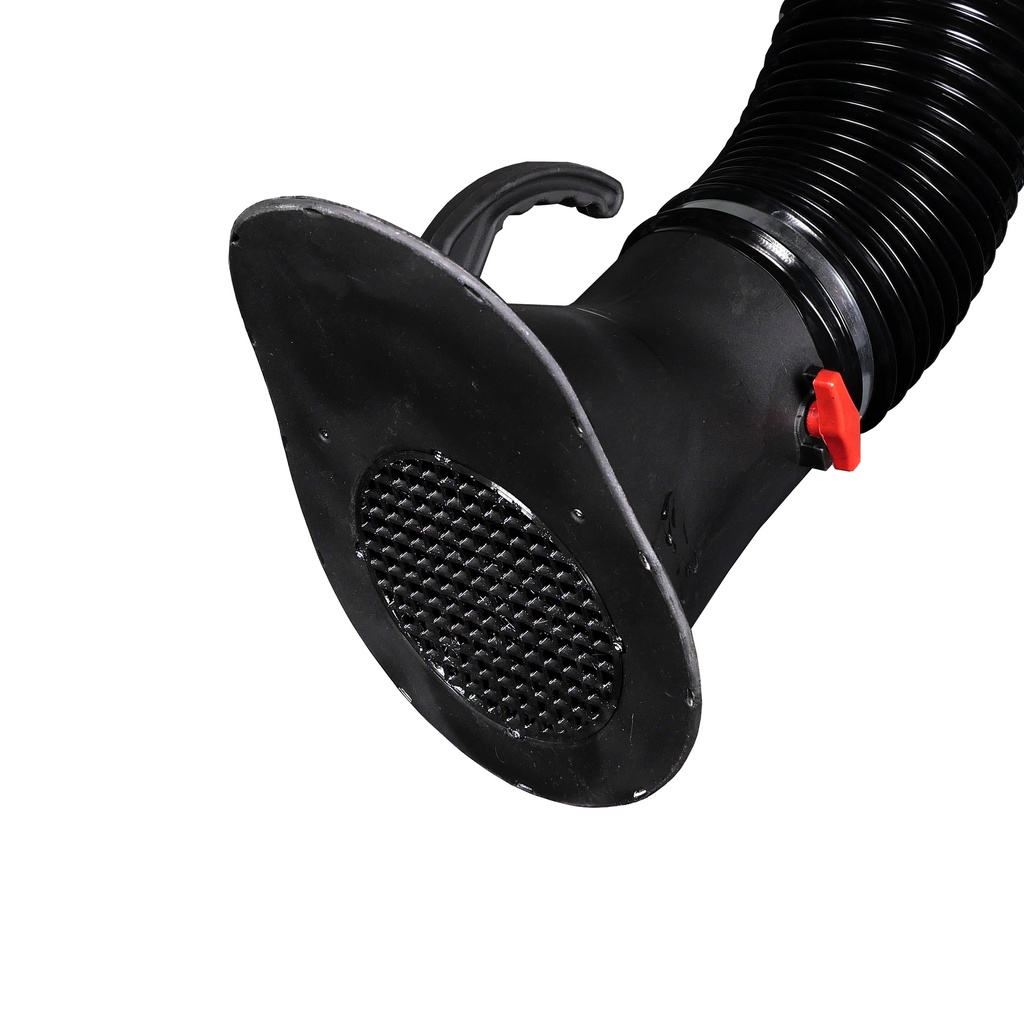

The inclusion of a high-quality 3mtr extraction arm ensures precise positioning for targeted fume extraction, while the disposable filter with high dust collection capacity guarantees clean and breathable air in your workspace.
What sets this fume extractor apart is its H13 class HEPA filter, which is compliant with IFA W3 requirements. This advanced filtration system ensures that even the smallest particles are effectively captured, providing you with peace of mind knowing that the air you breathe is free from harmful contaminants.
Made in Europe, the Welding Fume Extractor upholds the highest standards of quality and performance. Its durable construction and reliable operation make it a valuable asset for any welding workshop or industrial setting.
Thanks to the interchangeable filter it's possible to purchase additional active carbon filters to remove more harmful fumes as Chrome 6 which make this fume extractor suitable for aluminium and stainless steel welding.
Technical specifications
- Motor power = 0.75 kW
- Cleaning system = Disposable filter
- Extraction capacity = 1000 m³/h
- Fan capacity = 1950 m³/h
- Hose diameter = 160 mm
- Filter material = H13 HEPA
- Power supply = 230V / 50Hz
- Arm length = 3 meters
- Noise level = 75 dB
- Filter stage = 2
- Filtration area = Main filter 13 m²
- Filter efficiency = H13 Class (EN 1822)
Dimensions and weights
- Weight =105.0Kg
- Product weight =98.0Kg
- Length =670.0mm
- Width =715.0mm
- Height =1070.0mm
- Product Length =700.0mm
- Product Width =600.0mm
- Product Height =1097.0mm
