PRODUCT DESCRIPTION

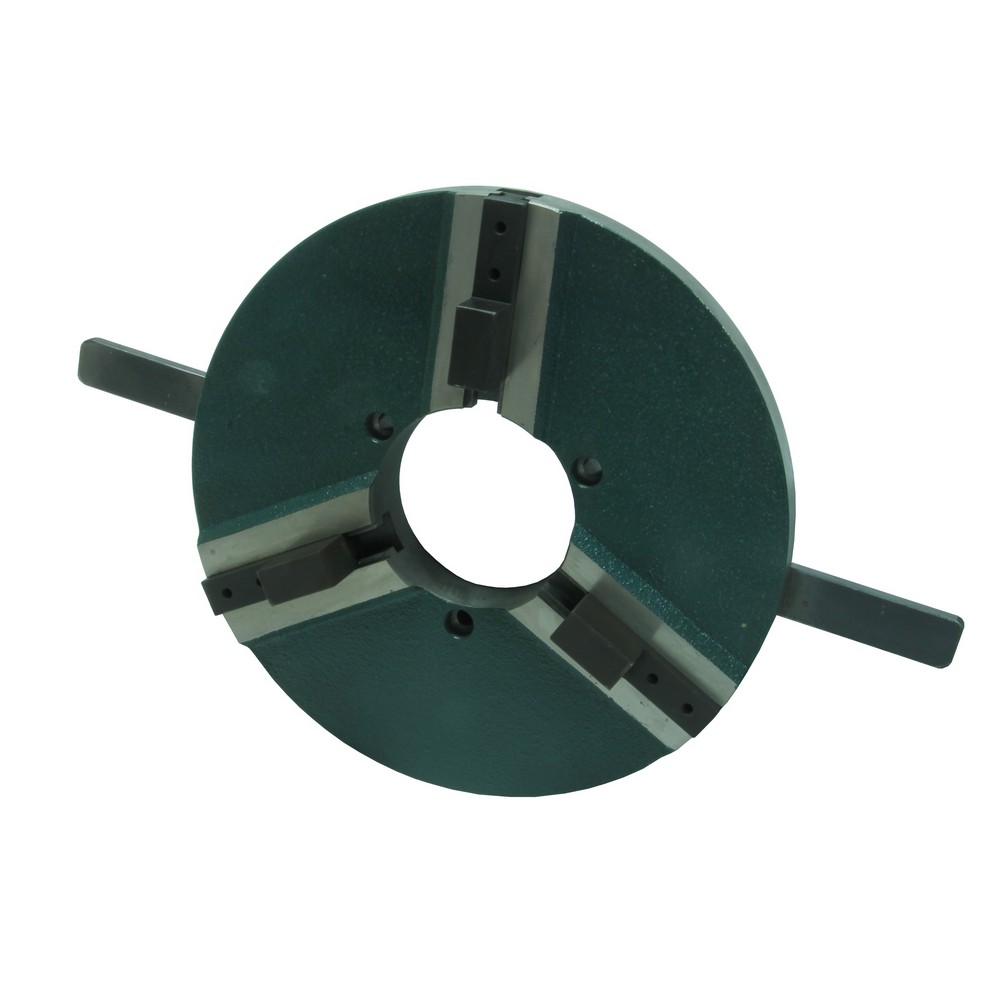

Welding chuck
This welding chuck 3-jaw is ideal for the use on a welding positioner. This secures the workpiece to the welding manipulator so that an excellent welding connection is realized.
Especially suitable for series production. Many of the same work pieces can easily be changed, resulting in a shorter production time.

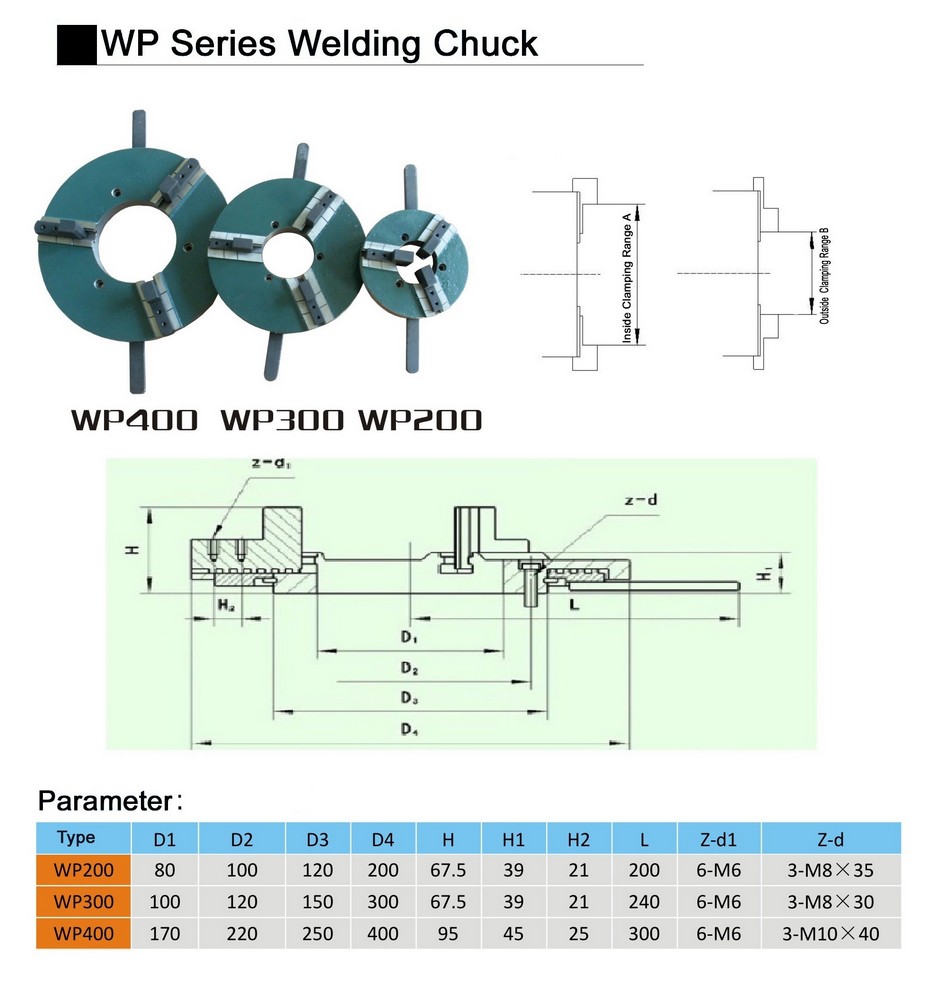

- diameter = 300mm
- reach round = 80 -280mm
- clamping force = 250kg
- capacity = 120g
- reach outside jaws = 170 - 280mm
- reach inside jaws = 80 - 190mm
Suitable for the welding positioner 100kg (LM10)
Technical specifications
Dimensions and weights
- Weight =12.4Kg
- Product weight =11.8Kg
- Length =420.0mm
- Width =320.0mm
- Height =100.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
