PRODUCT DESCRIPTION

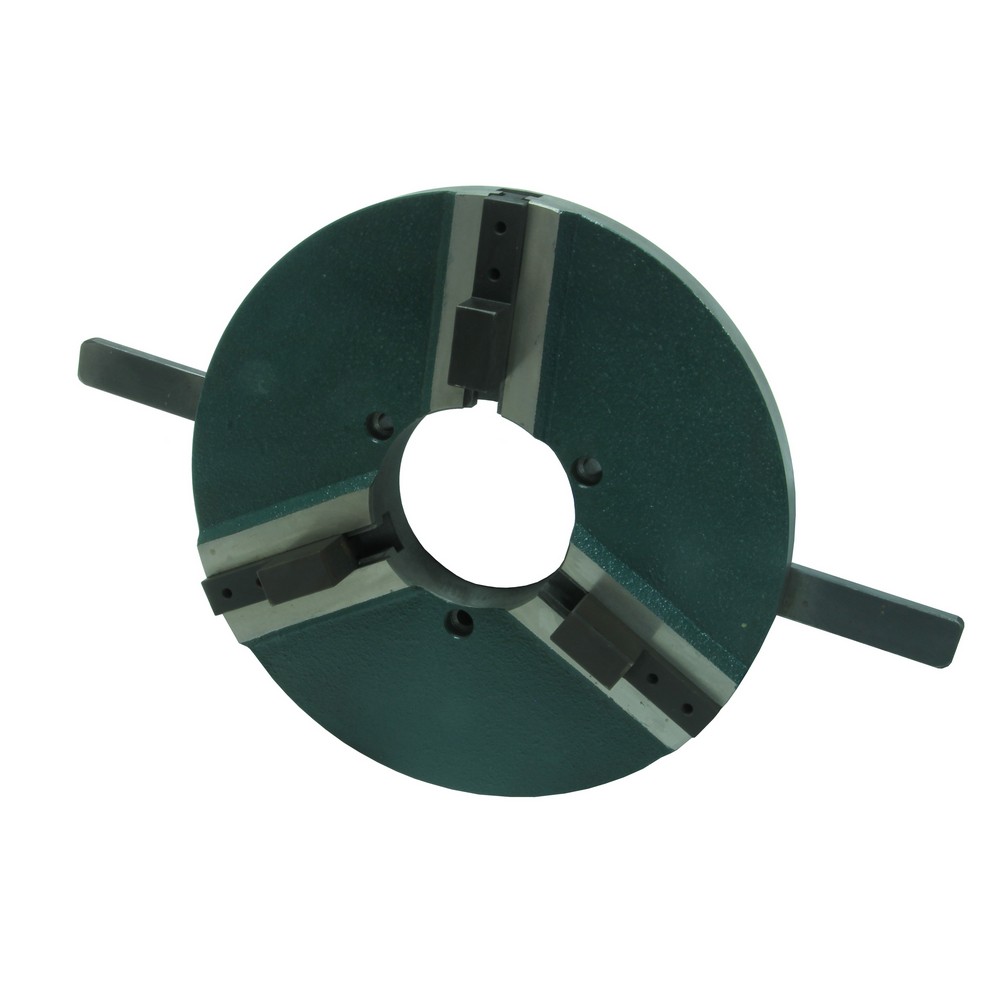

Welding chuck
This welding chuck 3-jaw is ideal for the use on a welding positioner. This secures the workpiece to the welding manipulator so that an excellent welding connection is realized.
Especially suitable for series production. Many of the same work pieces can easily be changed, resulting in a shorter production time.
diameter = 400mm
reach round = 120 -380mm
clamping force = 350kg
capacity = 240g
reach outside jaws = 250 - 380mm
reach inside jaws = 120 - 250mm
Suitable for the welding positioner 300kg (LM30)
Technical specifications
Dimensions and weights
- Weight =24.0Kg
- Product weight =22.9Kg
- Length =490.0mm
- Width =420.0mm
- Height =120.0mm
- Product Length =590.0mm
- Product Width =400.0mm
- Product Height =95.0mm
