PRODUCT DESCRIPTION
Welding turning roll

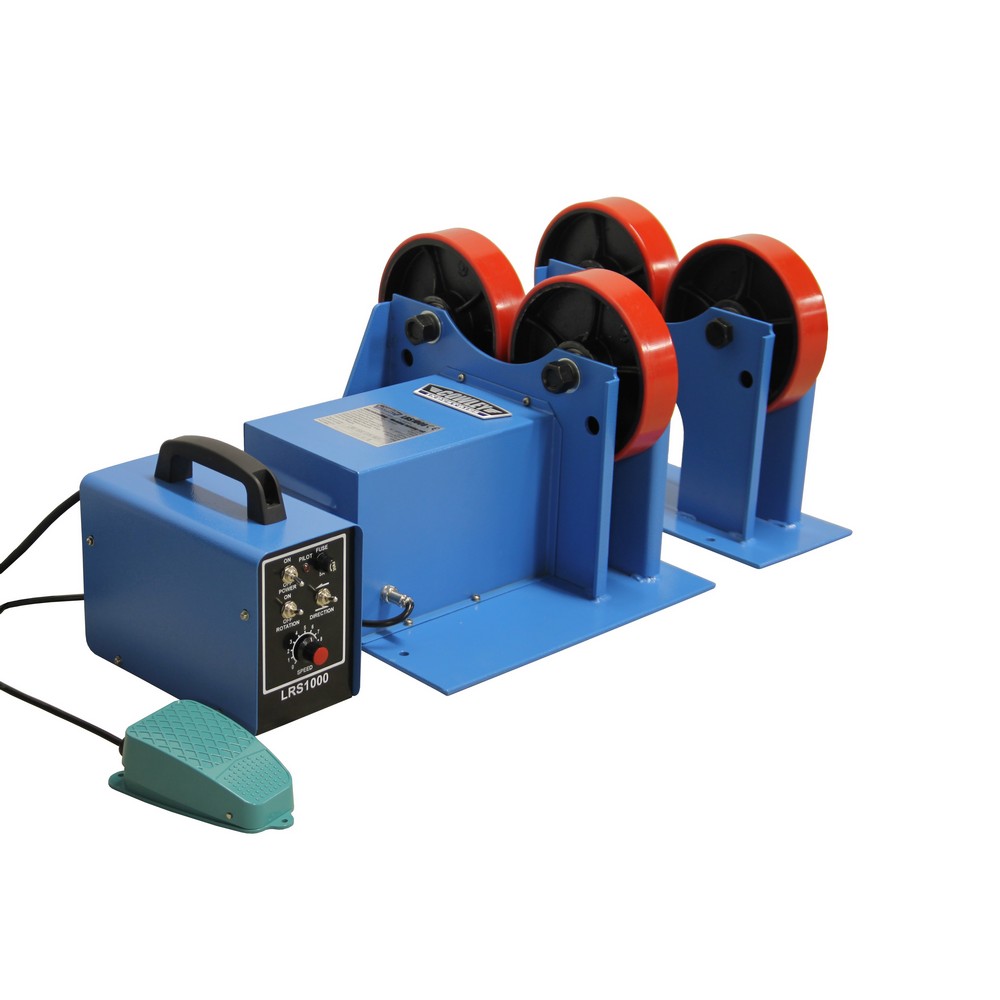

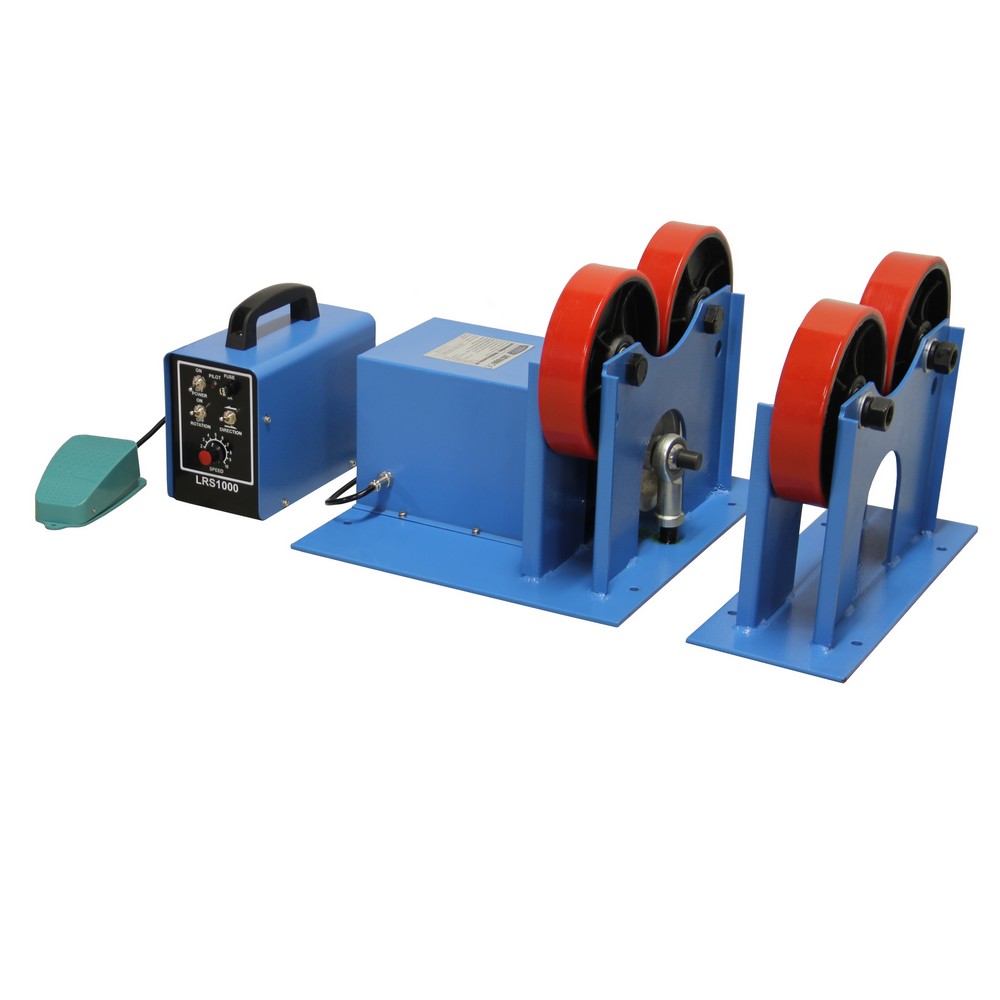

This Cowley welding turning roll is used for placing and rotating round workpieces, such as pipes, under a welding head. By setting the desired rotational speed you can weld extremely precisely. Therefore the machine contributes to the improvement of the safety, precision, effectiveness and speed of the welding work.

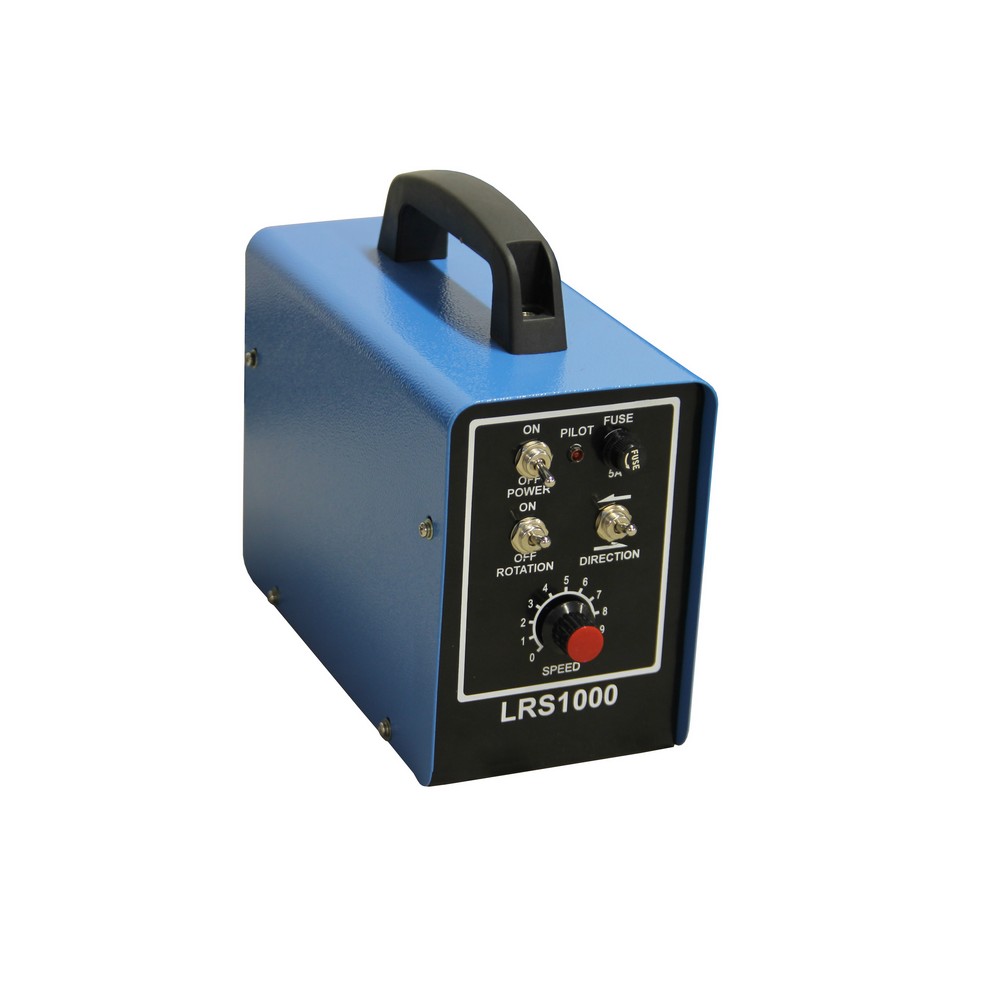

With the help of the control box it is easy to set the rotation on/off, rotation direction left/right and rotation speed. Finally, the machine is operated with the foot pedal.
Technical specifications:
power supply = 230V
frequency = 50/60 Hz
power = 230W
load capacity = 1000kg
rotation speed = 80 - 1600mm/min
diameter range = 20 - 800mm
diameter rollers = 200mm
width rollers = 50mm
measurements control box = 255 x 125 x 285mm
measurements machine = 550 x 450 x 315mm
Technical specifications
Dimensions and weights
- Weight =60.0Kg
- Product weight =53.0Kg
- Length =665.0mm
- Width =560.0mm
- Height =475.0mm
- Product Length =550.0mm
- Product Width =450.0mm
- Product Height =315.0mm
