PRODUCT DESCRIPTION

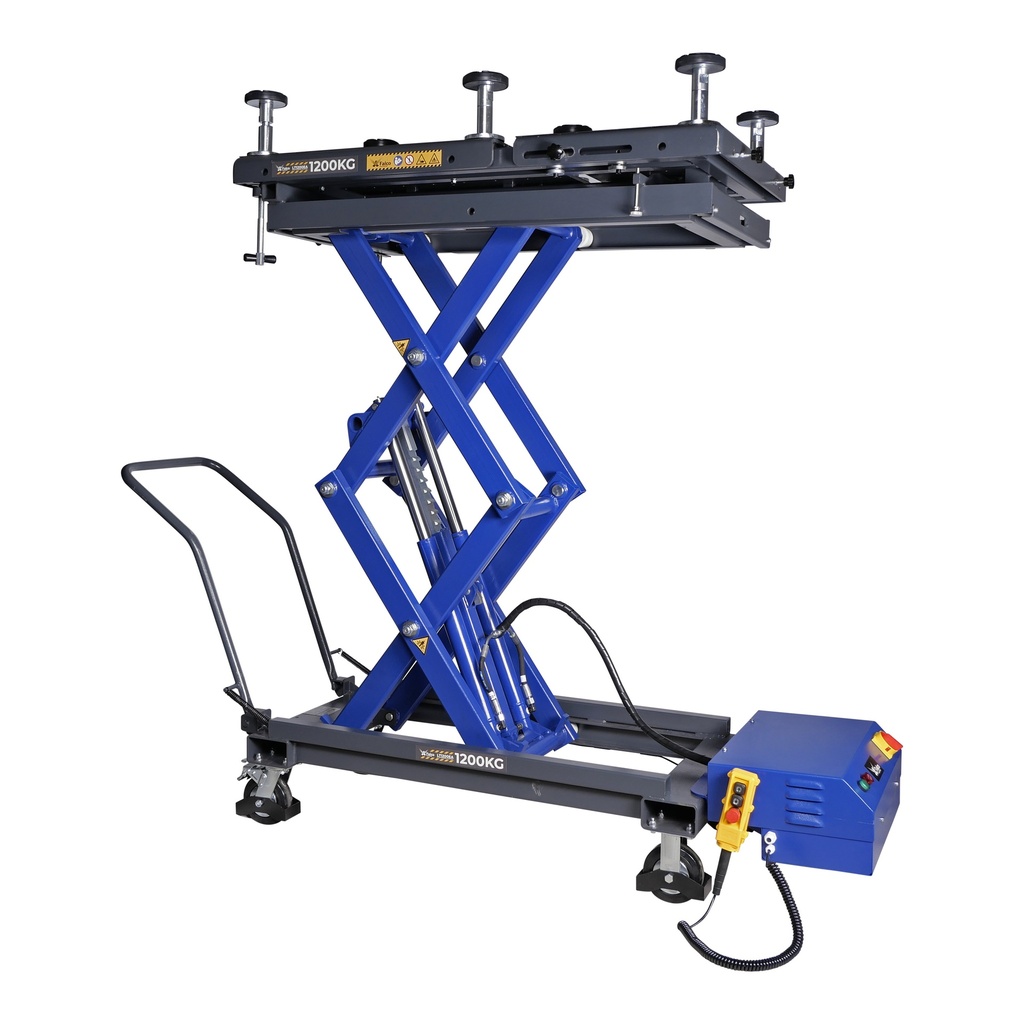

Mobile scissor lift table / scissor lift / lift table / electro hydraulic scissor table lift table
The Falco LT1200EA electro hydraulic battery has been specially developed for electric vehicles and is ideal for (dis)assembling engines, gearboxes, lithium-ion car battery packs and other chassis components. The lifting table is infinitely adjustable in height and length, so it has a flexible field of application.
Features:
- The table top has 104 M10 threaded holes with a hole pattern of 100 x 100 mm for easy mounting of tools and lifting adapters
- Lifting table is easily adjustable in length and transverse direction and can be tilted 5 degrees
- Swivel wheels including brake for free movement and safe operation
- Collapsible rod for optimal workspace
- Integrated, electro-hydraulic unit 230V

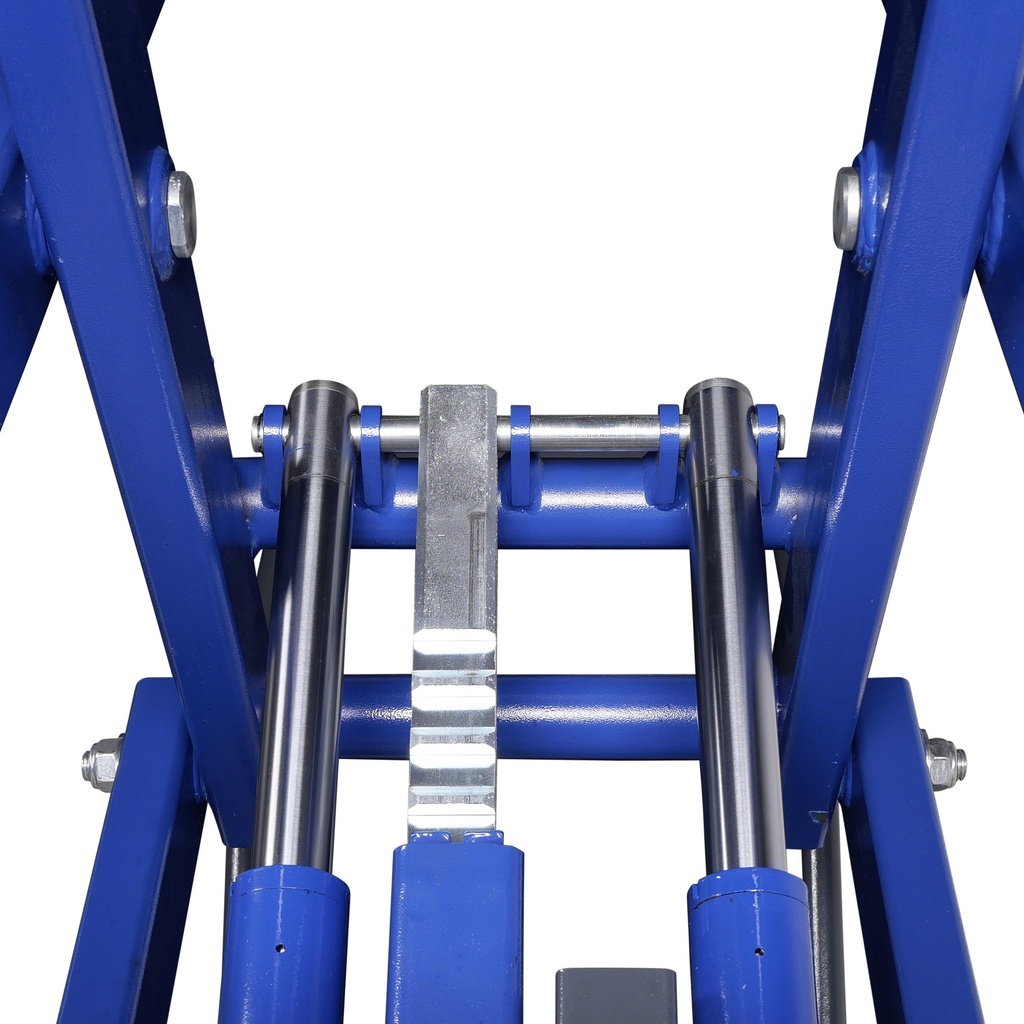

- Double hydraulic cilinder plus Electyro-mechanical lock for extra safety

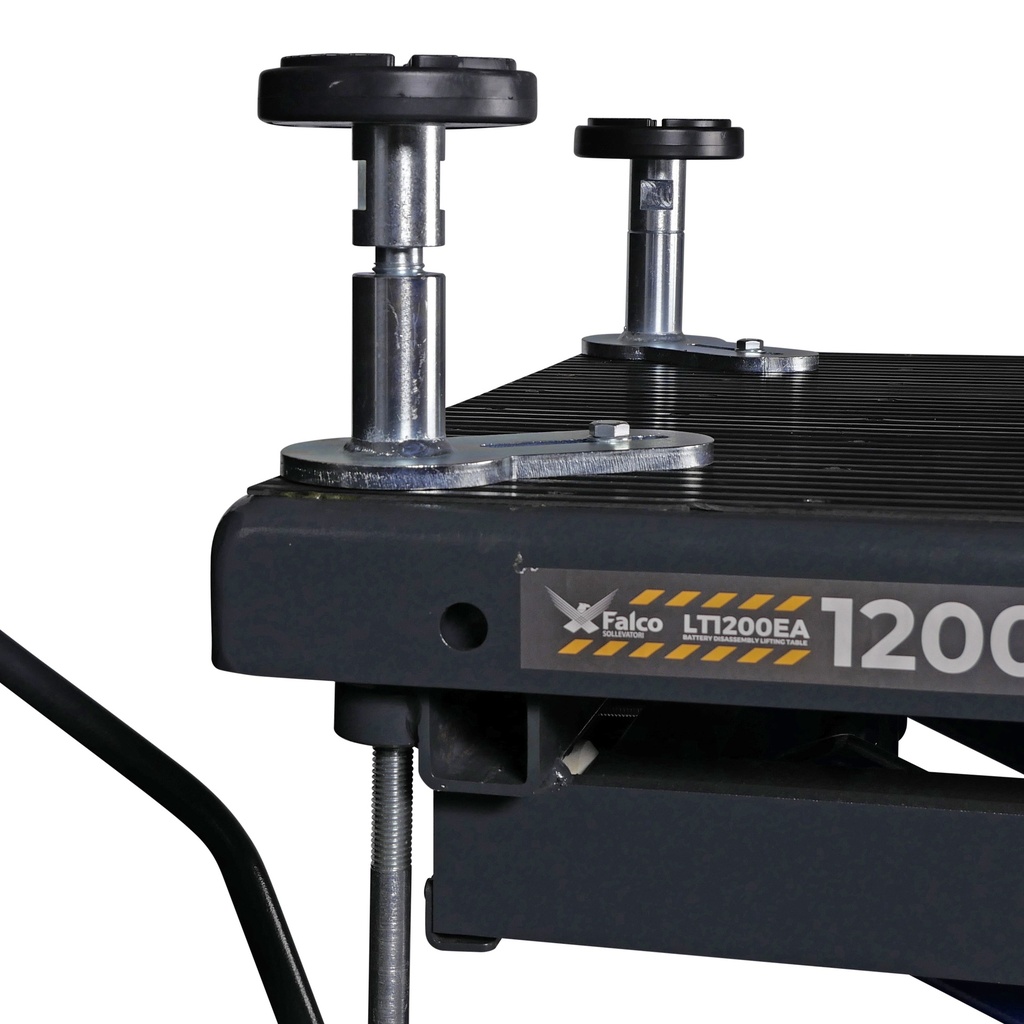

- Incl 6 lifting pads with adjustable spindles

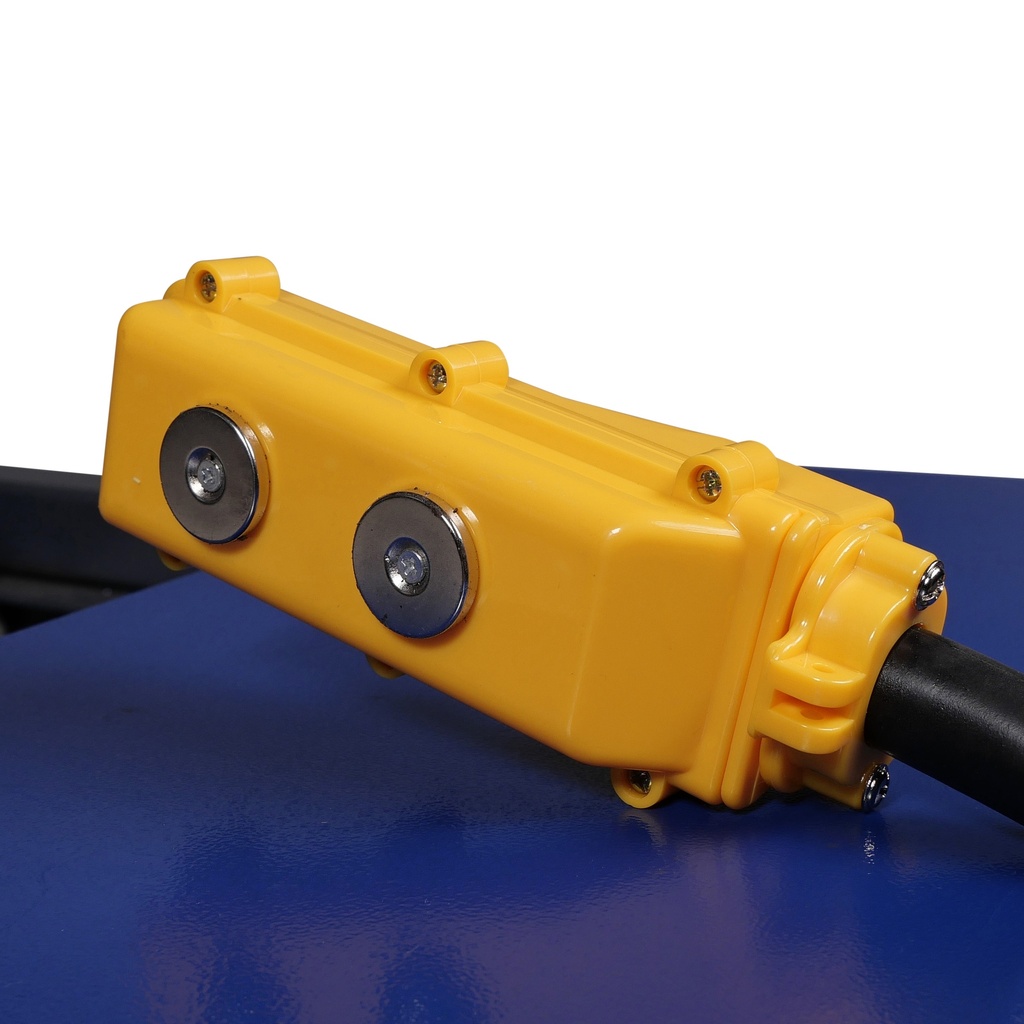

- Easy to use control unit incl magnetic holder for optimal postioning
- Insulated table top and lifting adapters for safety while working on electric cars
Technical specifications
- Lifting capacity = 1200 kg
- Voltage = 230V / 50 Hz
- Power = 0.75 kW
- Platform dimensions = 1300 x 760 mm
- Isolation class = IP44
- Platform height min. (without pads / with pads) = 640 / 800 mm
- Platform height max. (without pads / with pads middle position / with pads high position) = 1855 / 2015 / 2065 mm
- Adjustable lifting pads (min / max) = 160 / 210 mm
- Platform adjustable range = 1290 - 1400 mm
Dimensions and weights
- Weight =482.0Kg
- Product weight =440.0Kg
- Length =840.0mm
- Width =1820.0mm
- Height =680.0mm
- Product Length =770.0mm
- Product Width =2240.0mm
- Product Height =1010.0mm
