Both built-in and surface-mounted possible
Ergonomic working height
Stepless height adjustment
Equipped with safety edge
Fixed design, with single scissors
Product Code: LT22HE
EAN: 8720028087396
PRODUCT DESCRIPTION
Scissor lift table / scissor table / platform lift / lift table / fixed lift table

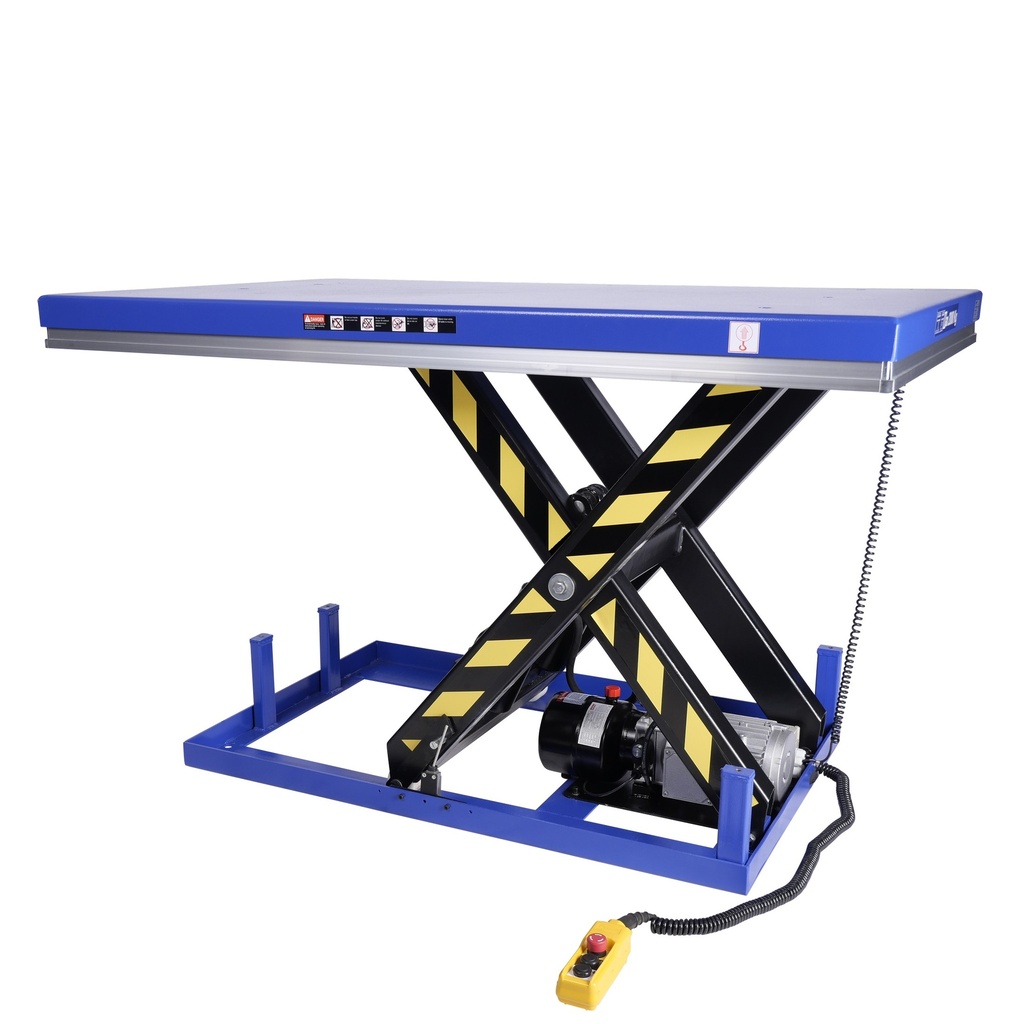

This Mammuth fixed, electric lift table is ideal for moving machines and goods up to 1000kg in height. The table can be used both as built-in and surface-mounted. The lift is equipped with a switch box that is mounted under the table and a safety edge. This edge ensures that the lift stops lowering when something gets underneath.
Due to the electrical operation, ergonomic work is guaranteed.
Technical specifications:
capacity = 2000kg
minimum height = 230mm
maximum height = 1000mm
platform size = 1600 x 1000mm
platform height = 60mm
lifting time unloaded = 17 sec.
cable control length = 3,7m
voltage = 400V
power = 2,2kW
oil capacity = 3L
Note: The lifting table is supplied without a plug!
Technical specifications
- Lifting capacity = 2000 kg
- Lifting height min. = 230 mm
- Voltage = 400V
- Lifting height max. incl. pads = 1000 mm
- Platform height = 60 mm
- Cable control length = 3.7 m
- Lifting time = 17 sec.
- Oil capacity = 3 L
Dimensions and weights
- Weight =285.0Kg
- Product weight =268.0Kg
- Length =1630.0mm
- Width =1030.0mm
- Height =340.0mm
- Product Length =1600.0mm
- Product Width =1000.0mm
- Product Height =1000.0mm
