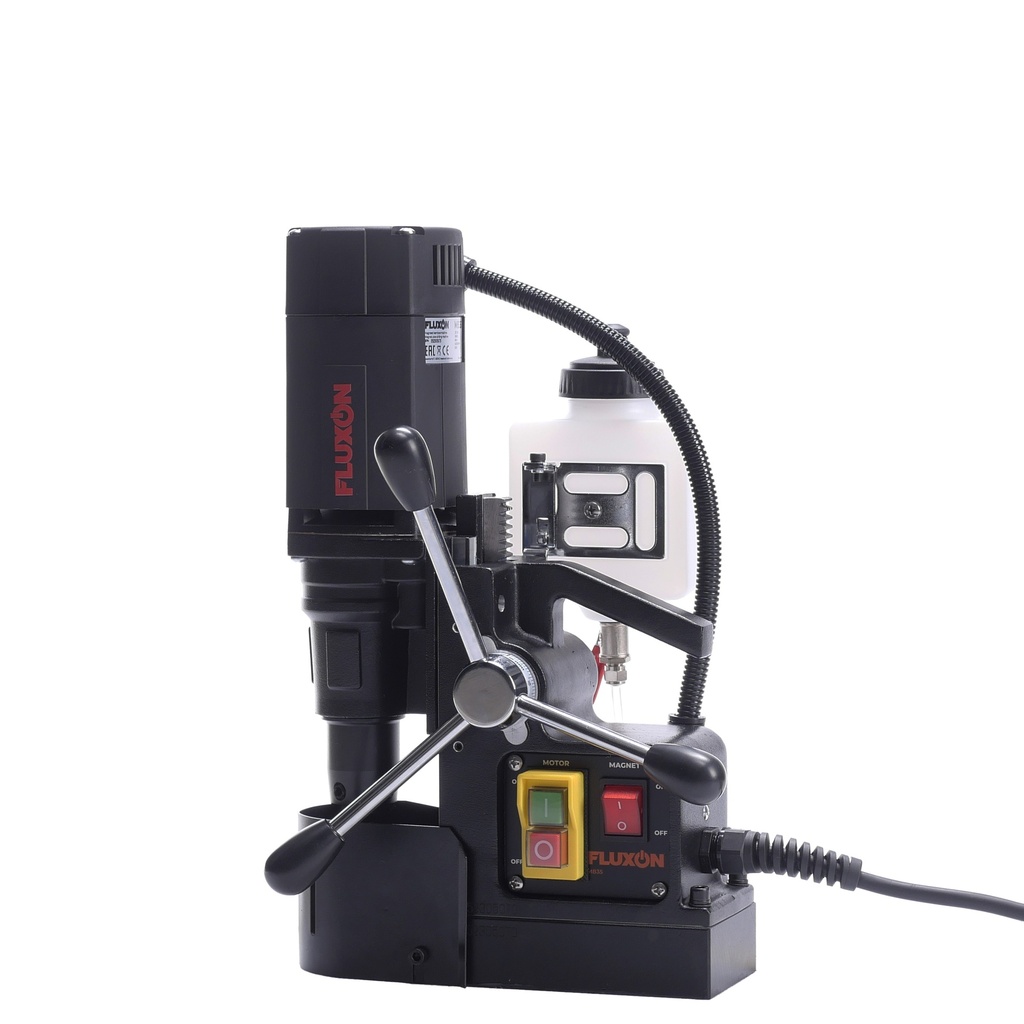

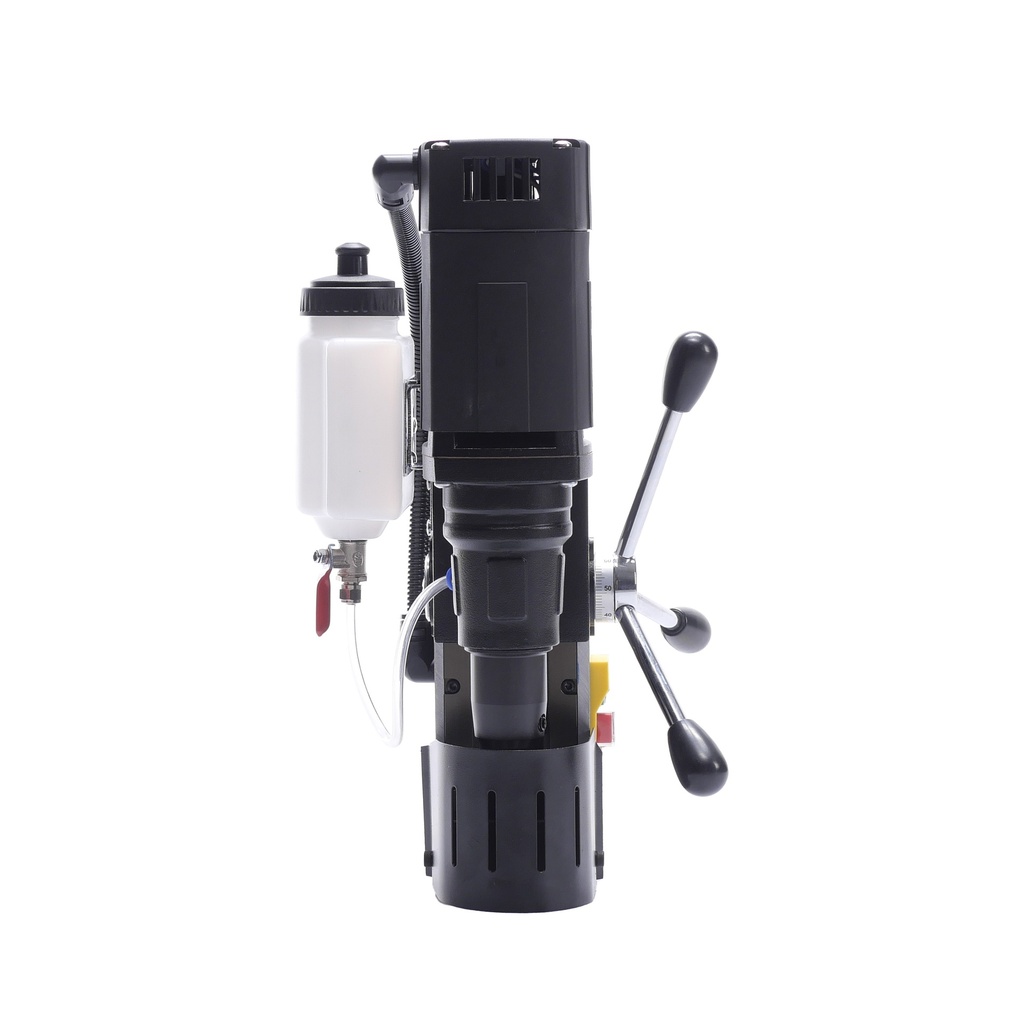

[MB35] Magnetic drilling machine 35 mm

€ 0.00 € 365.00

  • Motor power
  • Voltage
  • Frequency
  • Stroke
  • Speed loaded
  • Speed unloaded
  • Total power
  • Annular cutters
  • Twist drills
  • Countersinking
  • Magnet (L x W x H)
  • Magnetic force
  • Spindle (Weldon)
Add to cart
Add to wishlist
Contact Us
  • Powerful motor
  • Integrated cooling system
  • Compact and lightweight

Wood and Metal working / Metal working machinery / Magnetic drilling machines / Magnetic drilling machines

Product Code: MB35

EAN: 8720028108213

PRODUCT DESCRIPTION

Crafted for power and efficiency, the Fluxon Magnetic Drilling Machine stands out for your heavy-duty drilling needs.The Magnetic Drilling Machine is designed with a powerful motor, integrated cooling system and a compact, lightweight structure. Perfect for a variety of heavy-duty applications that require precision and power.

Technical specifications

  • Motor power = 850 W
  • Voltage = 220 - 240V
  • Frequency = 50/60 Hz
  • Stroke = 90 mm
  • Speed loaded = 400 rpm
  • Speed unloaded = 750 rpm
  • Total power = 900 W
  • Annular cutters = Ø 12 - 35 mm
  • Twist drills = Ø 1 - 13 mm
  • Countersinking = Ø 10 - 35 mm
  • Magnet (L x W x H) = 160 x 80 x 37 mm
  • Magnetic force = 1.000 kg
  • Spindle (Weldon) = 19.05 mm

Dimensions and weights

  • Weight =13.0Kg
  • Product weight =8.9Kg
  • Length =420.0mm
  • Width =560.0mm
  • Height =175.0mm
  • Product Length =250.0mm
  • Product Width =100.0mm
  • Product Height =380.0mm
