PRODUCT DESCRIPTION

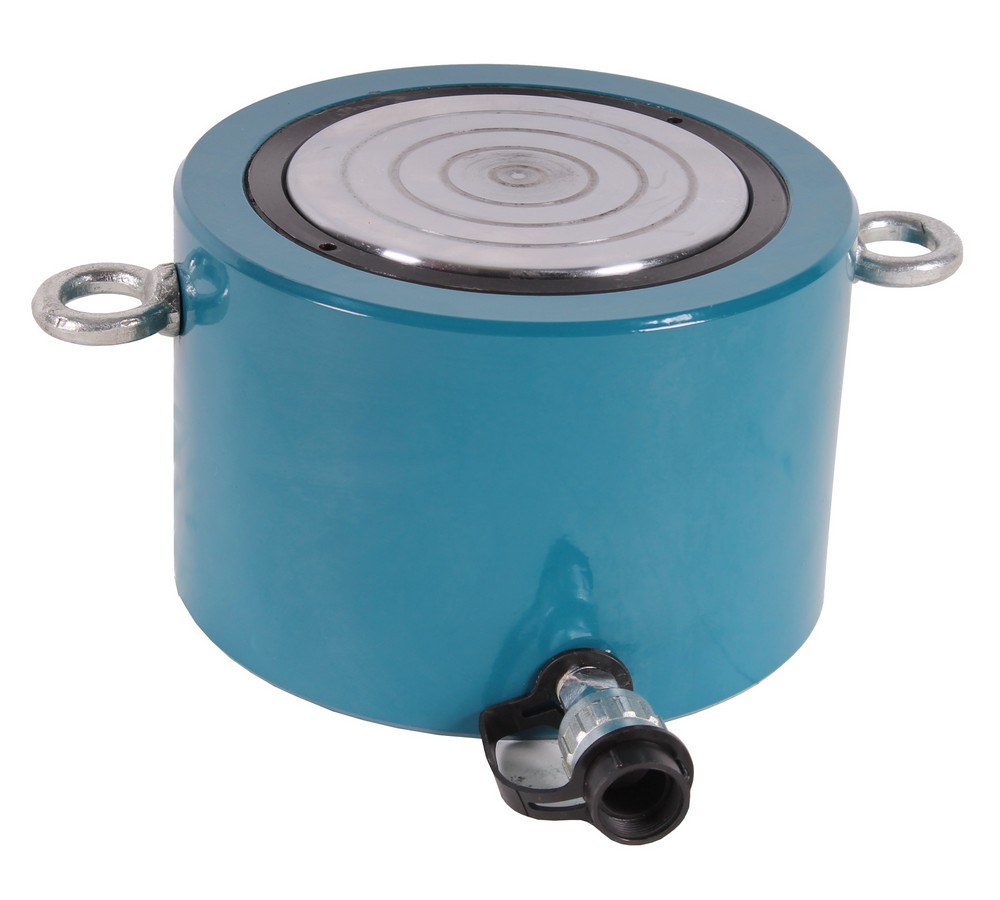

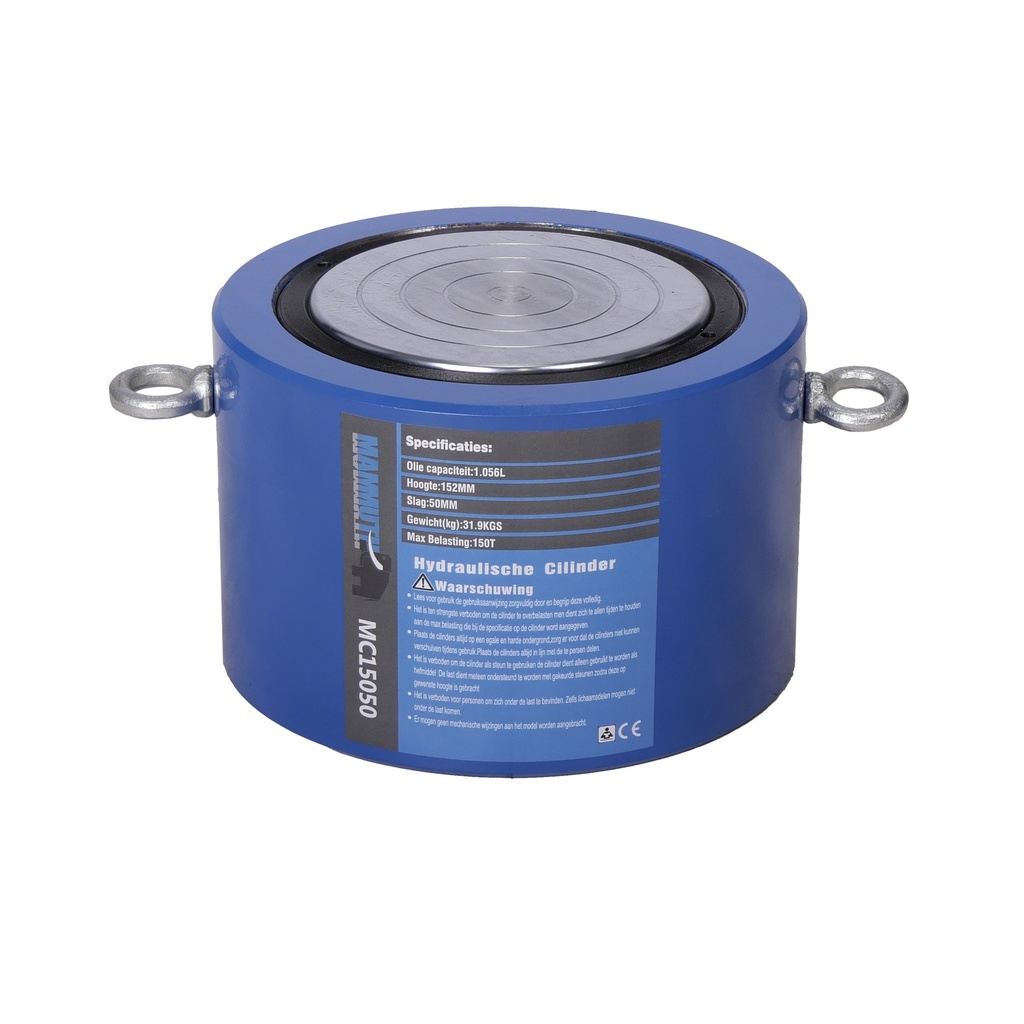

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
output = 150 ton
stroke = 50mm
effective area = 162,8cm^2
oil capacity = 1,056 L
height of product = 152mm
extended height = 202mm
outside diameter = 207mm
bore diameter = 164mm
plunger diameter = 144mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 2mm
saddle is removable
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =34.0Kg
- Product weight =32.0Kg
- Length =285.0mm
- Width =215.0mm
- Height =155.0mm
- Product Length =275.0mm
- Product Width =205.0mm
- Product Height =145.0mm
