Product Code: MC2050
EAN: 8720028075652
PRODUCT DESCRIPTION

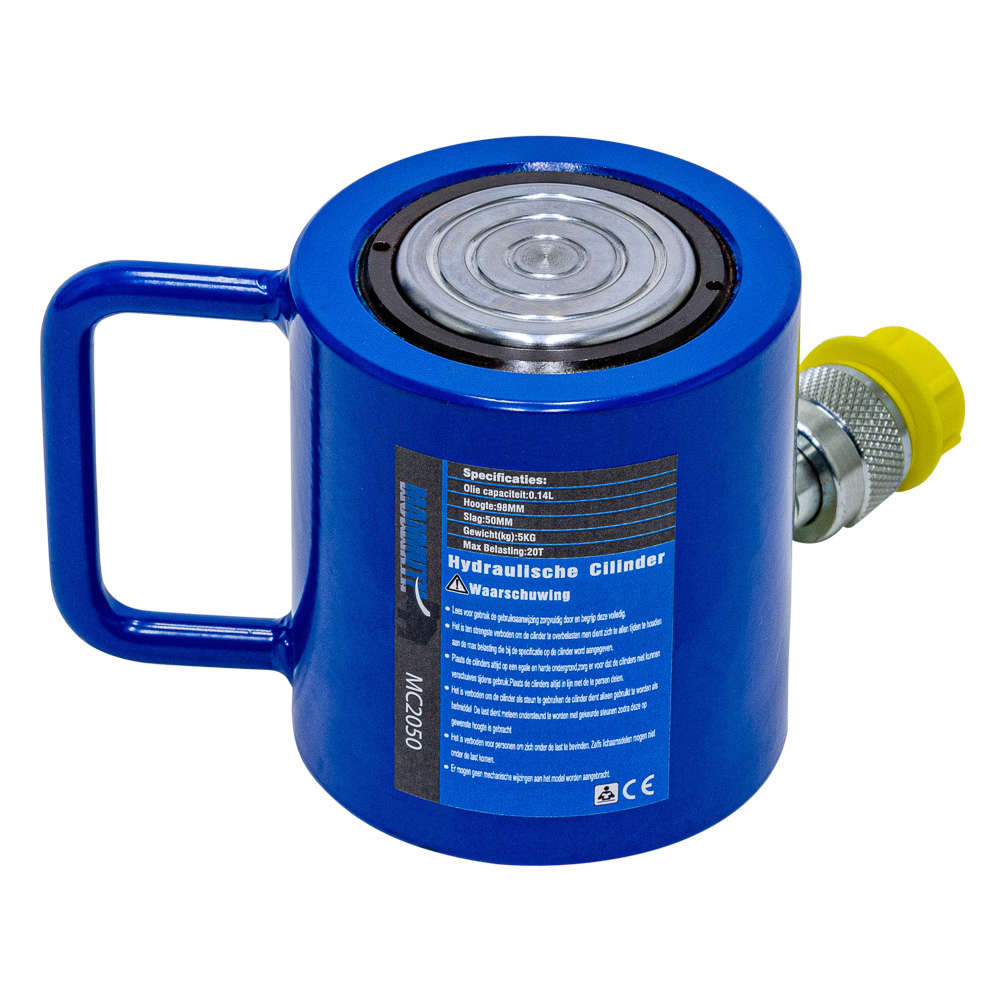

Hydraulic cylinder
It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
- output = 20 ton
- stroke = 50mm
- effective area = 22cm^2
- oil capacity = 0,14 L
- height of product = 98mm
- extended height = 148mm
- outside diameter = 88mm
- bore diameter = 65mm
- plunger diameter = 53mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =5.0Kg
- Product weight =4.0Kg
- Length =240.0mm
- Width =275.0mm
- Height =225.0mm
- Product Length =160.0mm
- Product Width =90.0mm
- Product Height =100.0mm
