Product Code: MDR111
EAN: 4014502212140
PRODUCT DESCRIPTION

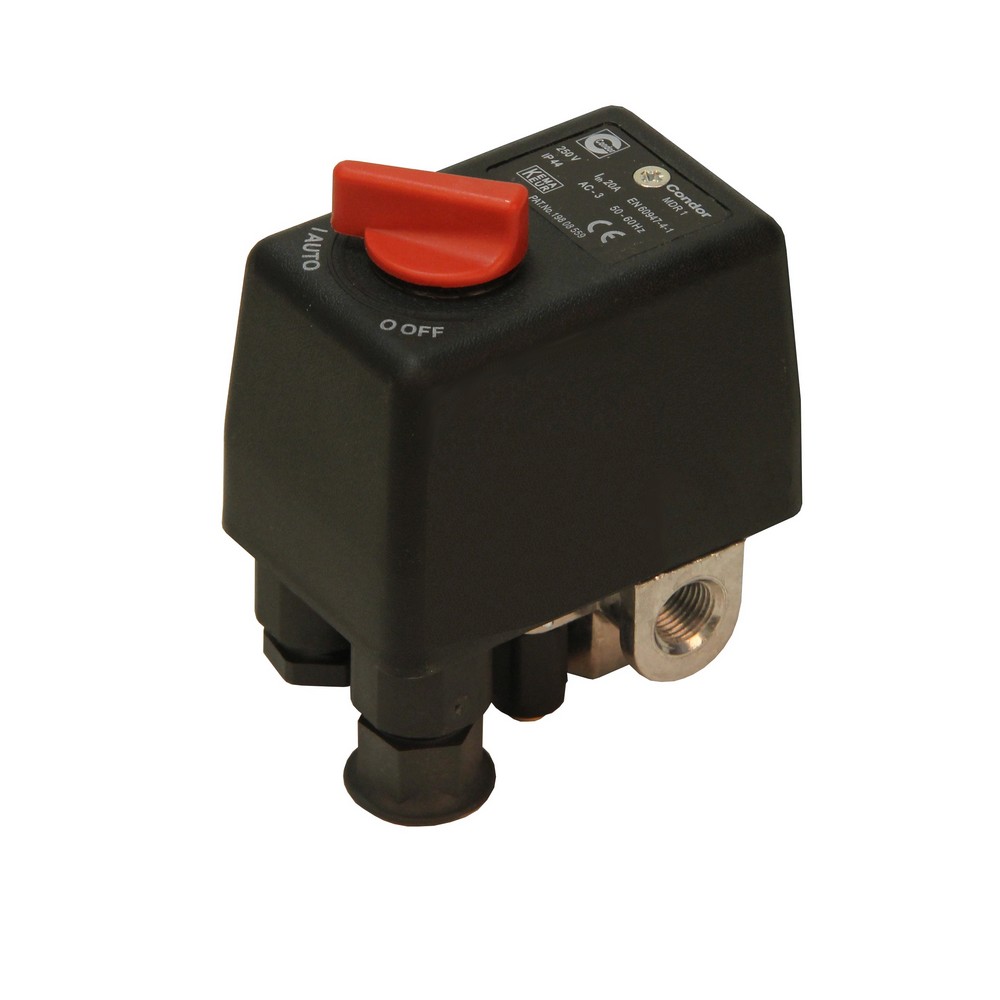

Pressure switch
- type = Condor MDR1-11
- switching capacity = 4,0kW (AC3)
- max. cut-out pressure = 11 bar
- single phase
- 2-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 1 S
- flange variants (G1/4, F4 1/4, F4 3/8, F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP44
Technical specifications
Dimensions and weights
- Weight =0.32Kg
- Product weight =0.32Kg
- Length =105.0mm
- Width =90.0mm
- Height =55.0mm
- Product Length =105.0mm
- Product Width =90.0mm
- Product Height =55.0mm
