Product Code: MDR31110A
EAN: 4014502265986
PRODUCT DESCRIPTION

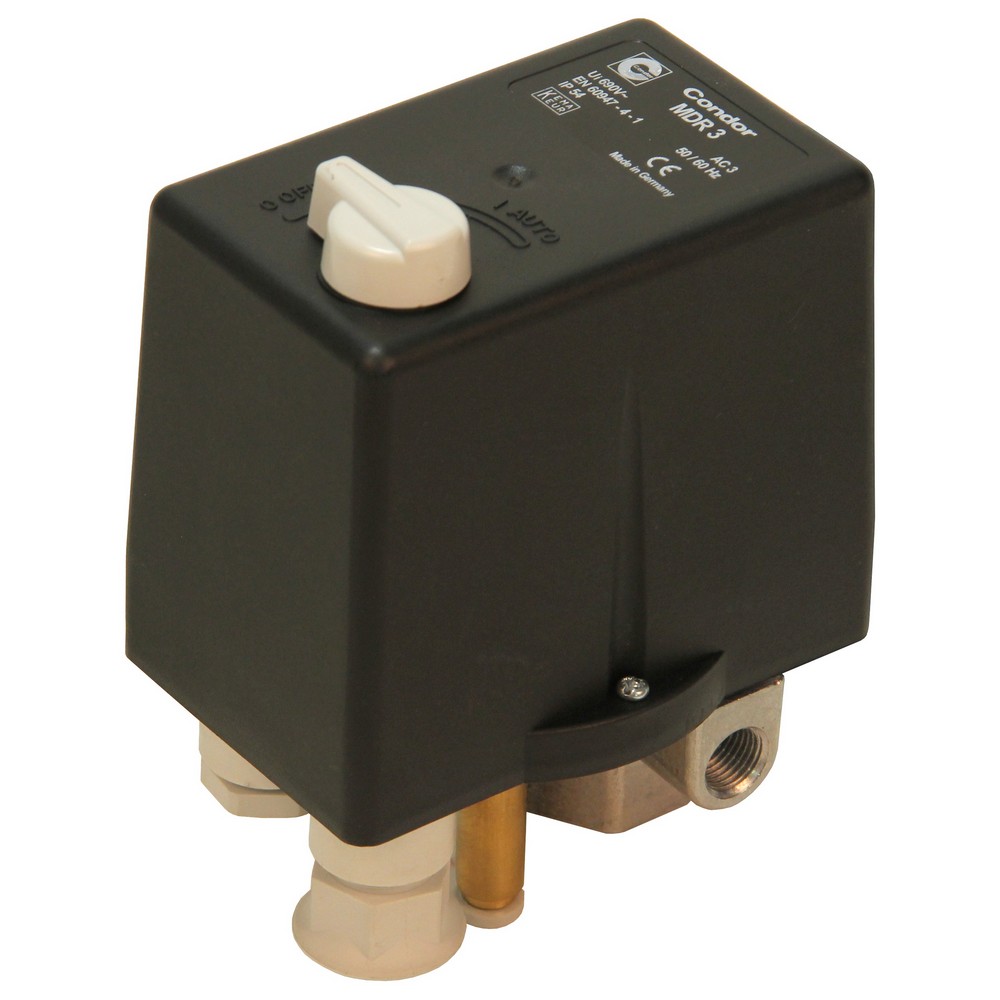

Pressure switch
- type = Condor MDR3-11 10A
- switching capacity = 7,5 (11)kW (AC3)
- max. cut-out pressure = 35bar
- 3-phase
- 3-pole
- incl. cable glands PG 11 Z/ZK
- provided with on/off switch and unloader valve AEV 3
- flange variant F4 1/2)
- permissible medium temperature -5 to 80 degrees celcius
- protection grade = IP54
Technical specifications
Dimensions and weights
- Weight =0.77Kg
- Product weight =0.77Kg
- Length =185.0mm
- Width =110.0mm
- Height =85.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
