Product Code: MFL10
EAN: 8720028049998
PRODUCT DESCRIPTION

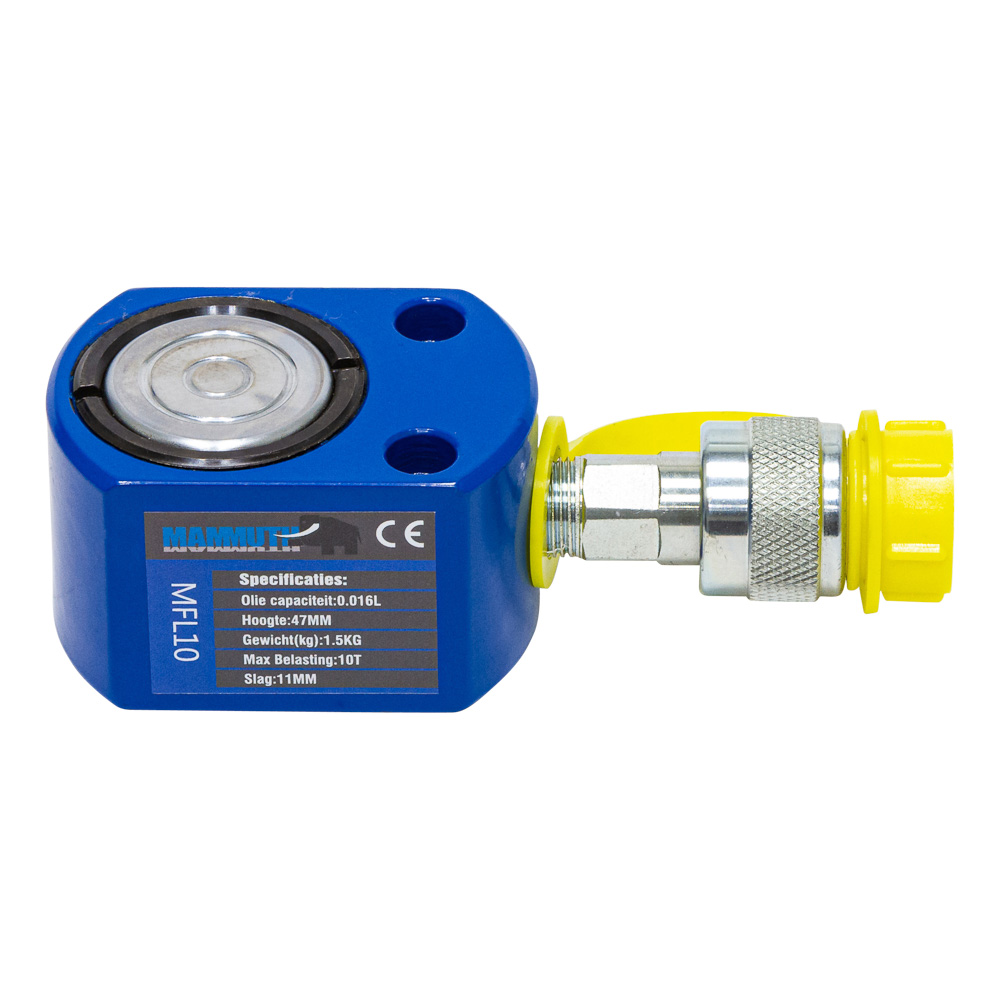

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
output = 10 ton
stroke = 11mm
effective area = 11,3cm^2
oil capacity = 0,016 L
height of product = 47mm
extended height = 58mm
outside diameter = 81x56mm
bore diameter = 43mm
plunger diameter = 38mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =2.0Kg
- Product weight =1.5Kg
- Length =155.0mm
- Width =65.0mm
- Height =55.0mm
- Product Length =145.0mm
- Product Width =55.0mm
- Product Height =47.0mm
