Product Code: MFL100
EAN: 8720028050154
PRODUCT DESCRIPTION

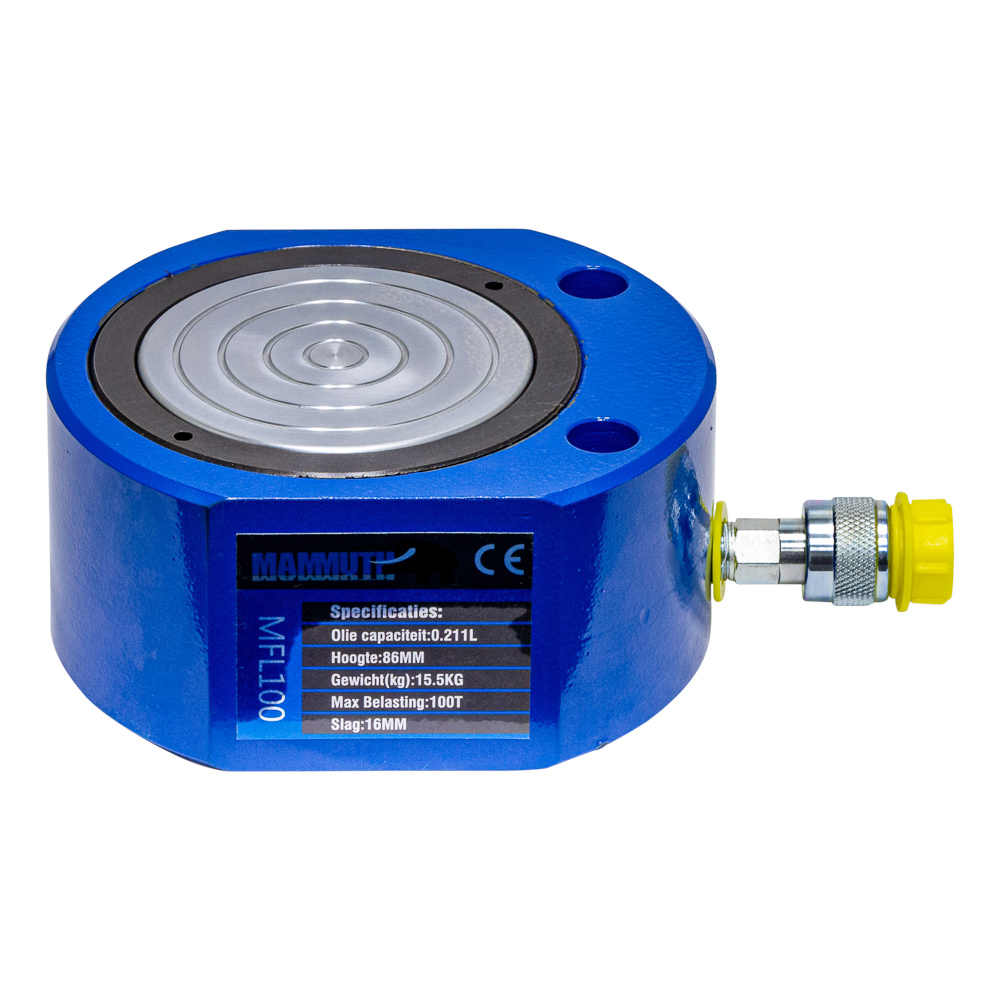

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 100 Ton
stroke = 16mm
effective area = 95cm^2
oil capacity = 0,211 L
height of product = 86mm
extended height = 102mm
outside diameter = 185x160mm
bore diameter = 130mm
plunger diameter = 110mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =18.0Kg
- Product weight =15.9Kg
- Length =235.0mm
- Width =340.0mm
- Height =135.0mm
- Product Length =255.0mm
- Product Width =160.0mm
- Product Height =85.0mm
