Product Code: MFL100D
EAN: 8720028075584
PRODUCT DESCRIPTION

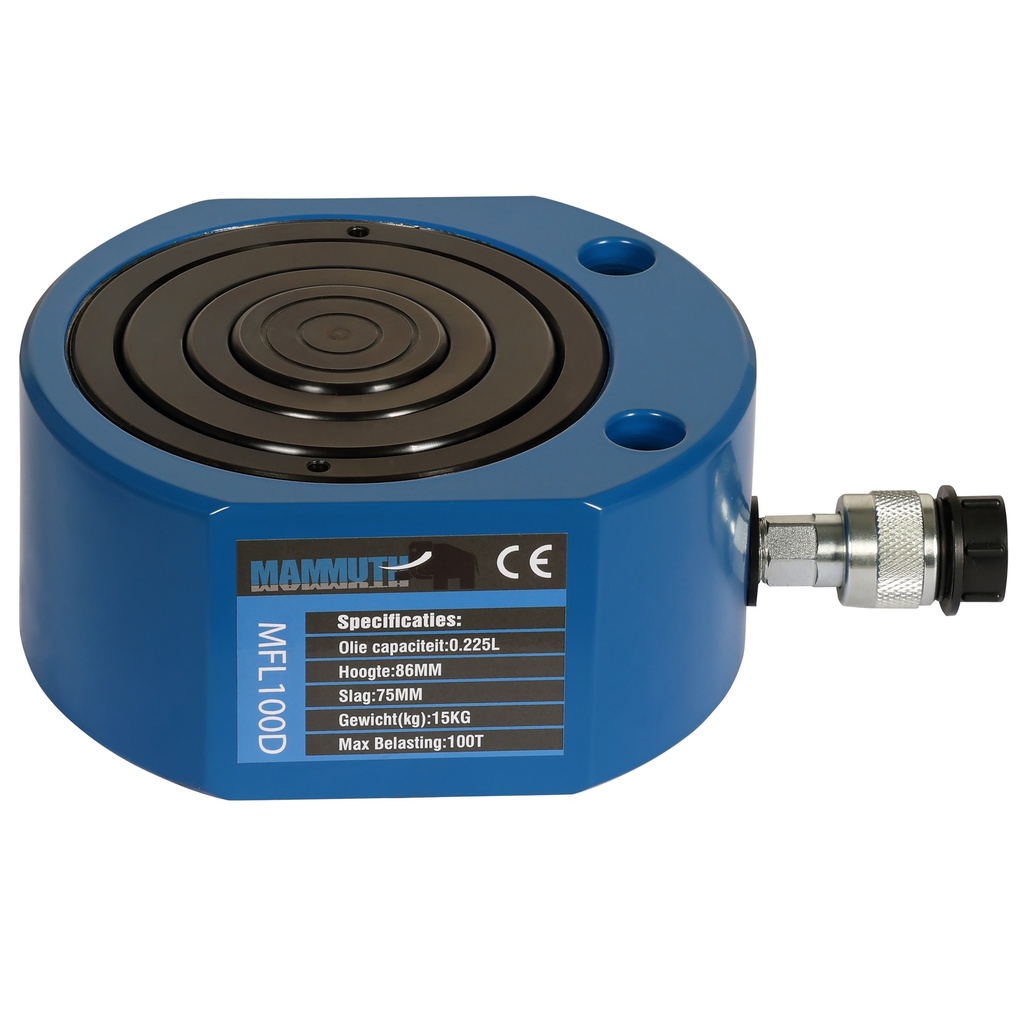

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
Technical specifications
- Capacity = 100 ton
- Pressure max. = 700 Bar
- Stroke = 75 mm
- Effective pressure area = 95cm²
- Oil capacity = 0.225 L
- Cylinder height = 86 mm
- Outside diameter = 185 x 160 mm
- Bore diameter = 130 mm
- Plunger diameter = 110 mm
Dimensions and weights
- Weight =16.0Kg
- Product weight =15.0Kg
- Length =385.0mm
- Width =330.0mm
- Height =210.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
