Product Code: MFL50
EAN: 8720028053438
PRODUCT DESCRIPTION

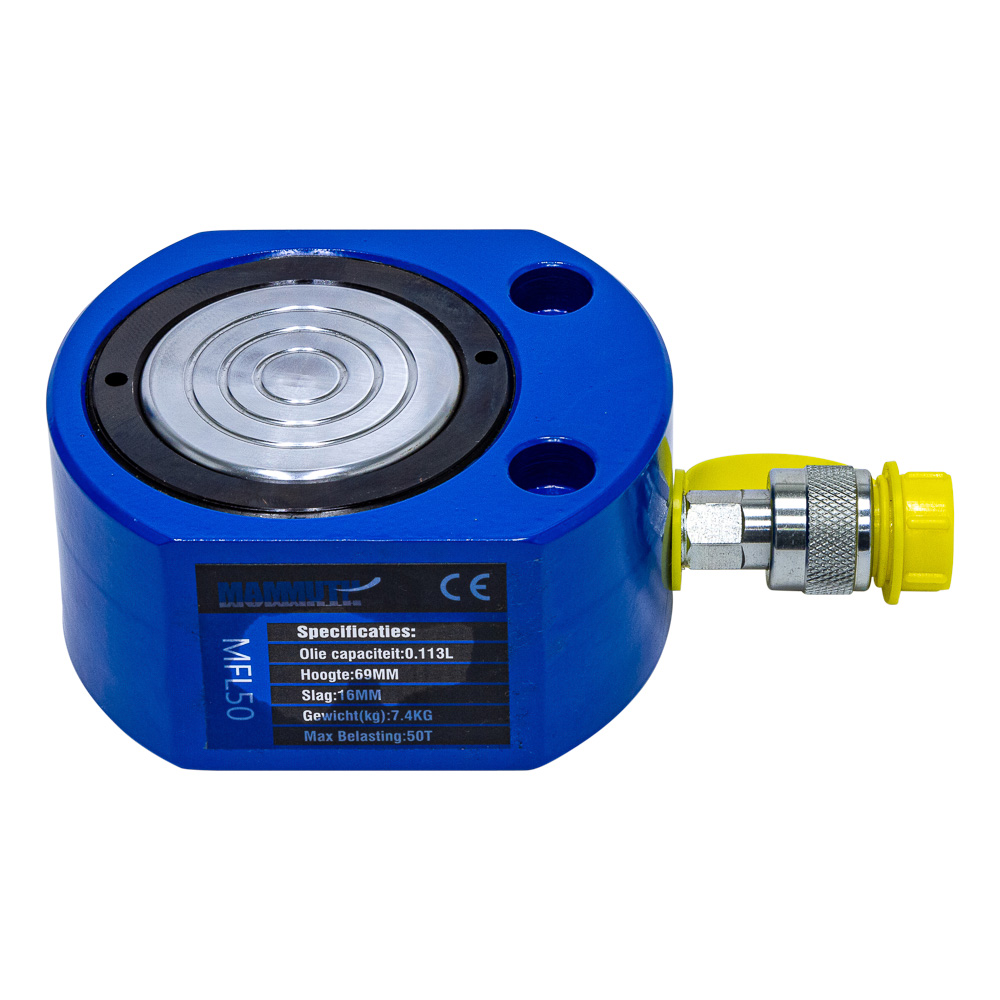

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 50 Ton
stroke = 16mm
effective area = 56,7cm^2
oil capacity = 0.113 L
height of product = 69mm
extended height = 85mm
outside diameter = 138x115mm
bore diameter = 95mm
plunger diameter = 85mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =8.0Kg
- Product weight =7.0Kg
- Length =255.0mm
- Width =155.0mm
- Height =110.0mm
- Product Length =215.0mm
- Product Width =120.0mm
- Product Height =70.0mm
