Product Code: MFL50D
EAN: 8720028053421
PRODUCT DESCRIPTION

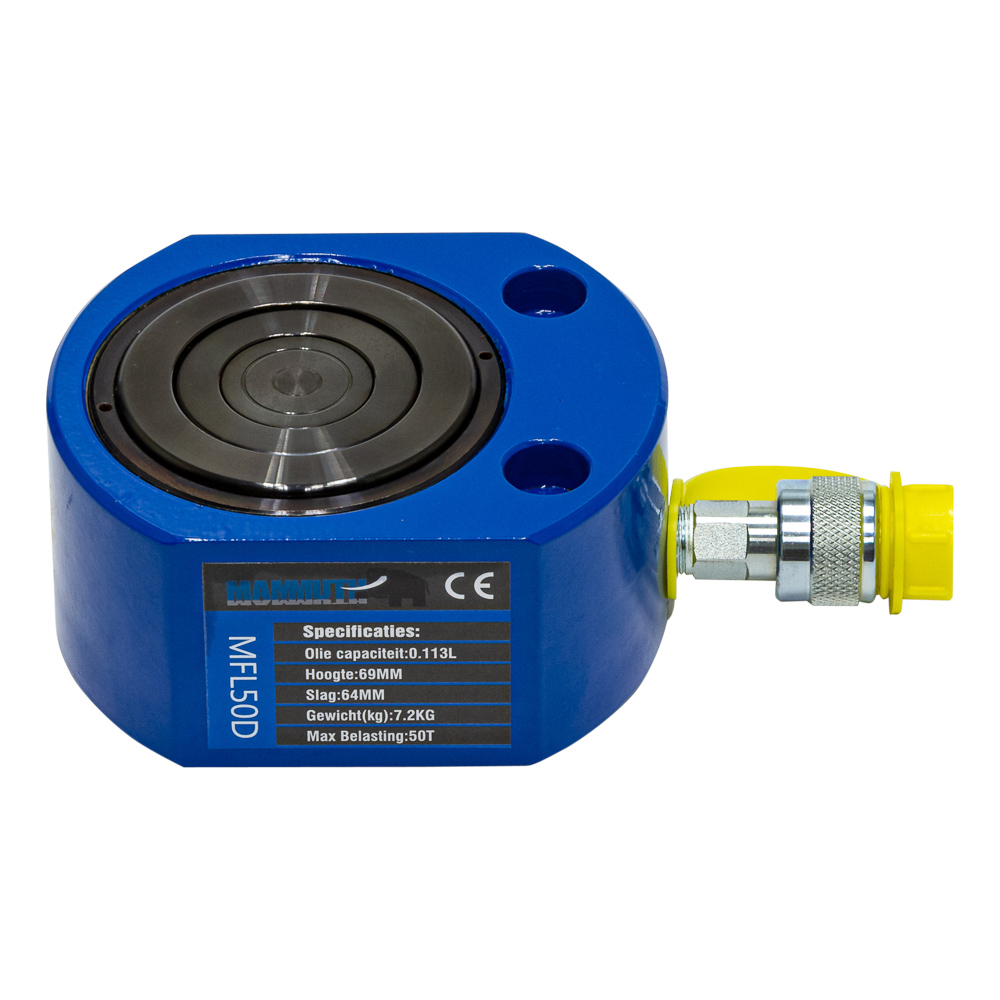

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 50 ton
stroke = 64mm
effective area = 56,7cm^2
oil capacity = 0,113 L
height of product = 69mm
extended height = 135mm
outside diameter = 138x115mm
bore diameter = 95mm
plunger diameter = 85mm
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =7.5Kg
- Product weight =7.0Kg
- Length =225.0mm
- Width =130.0mm
- Height =145.0mm
- Product Length =215.0mm
- Product Width =120.0mm
- Product Height =135.0mm
