[MH0500E] Torso mobile electric winch 250/ 500 kg

€ 0.00 € 135.00

  • Lifting capacity
  • Power supply
  • Frequency
  • Lifting speed loaded
  • Lifting height max.
  • Rope diameter
  • Input power
  • Input current
  • Rope length
  • Insulation class
  • Isolation class
  • Rope tensille strength
  • Max. tube diameter (mounting)
  • Lifting capacity 250/500 kg
  • Mobile use
  • Lightweight (19 kg)
  • Simple suspension
  • Electric control

Lifting and hoisting tools / Electric hoist / Electric cable hoists

Product Code: MH0500E

EAN: 8720028144419

PRODUCT DESCRIPTION

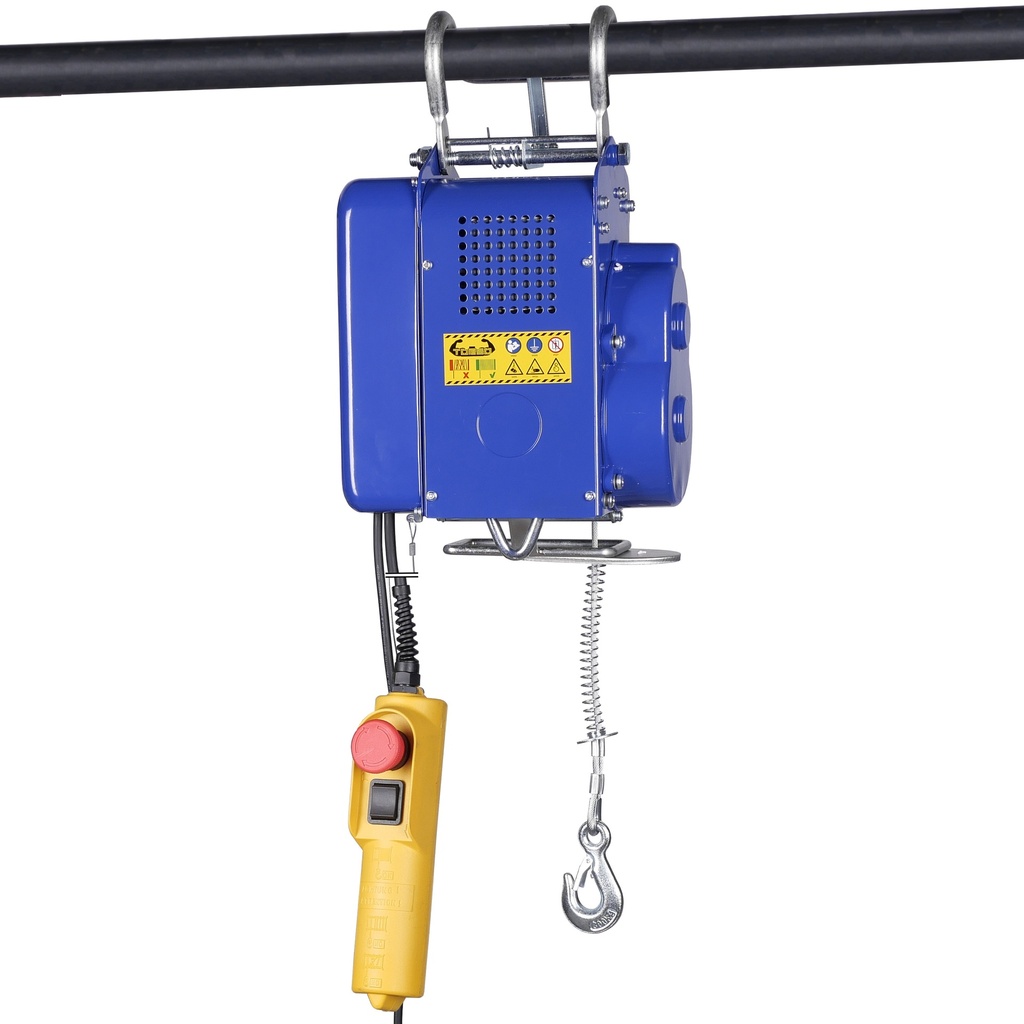

The Torso electric wire rope hoist lifts loads up to 500 kg. Thanks to its compact design, this hoist is practical for use in workshops, warehouses, and construction sites.

Weighing only 19 kg, this mobile electric hoist is light and easy to handle. It can be quickly hung and moved, making it usable at different workplaces. The electric control enables controlled and user-friendly lifting, ensuring loads can be moved safely and efficiently.

For extra safety, the wire rope hoist is equipped with an emergency stop, automatic brake, and overload protection.

Key features:

  • Lifting capacity 250/500 kg

Suitable for light to medium lifting tasks.


  • Mobile use

Easy to move and use at multiple workplaces.


  • Lightweight (19 kg)

Easy to handle and carry.

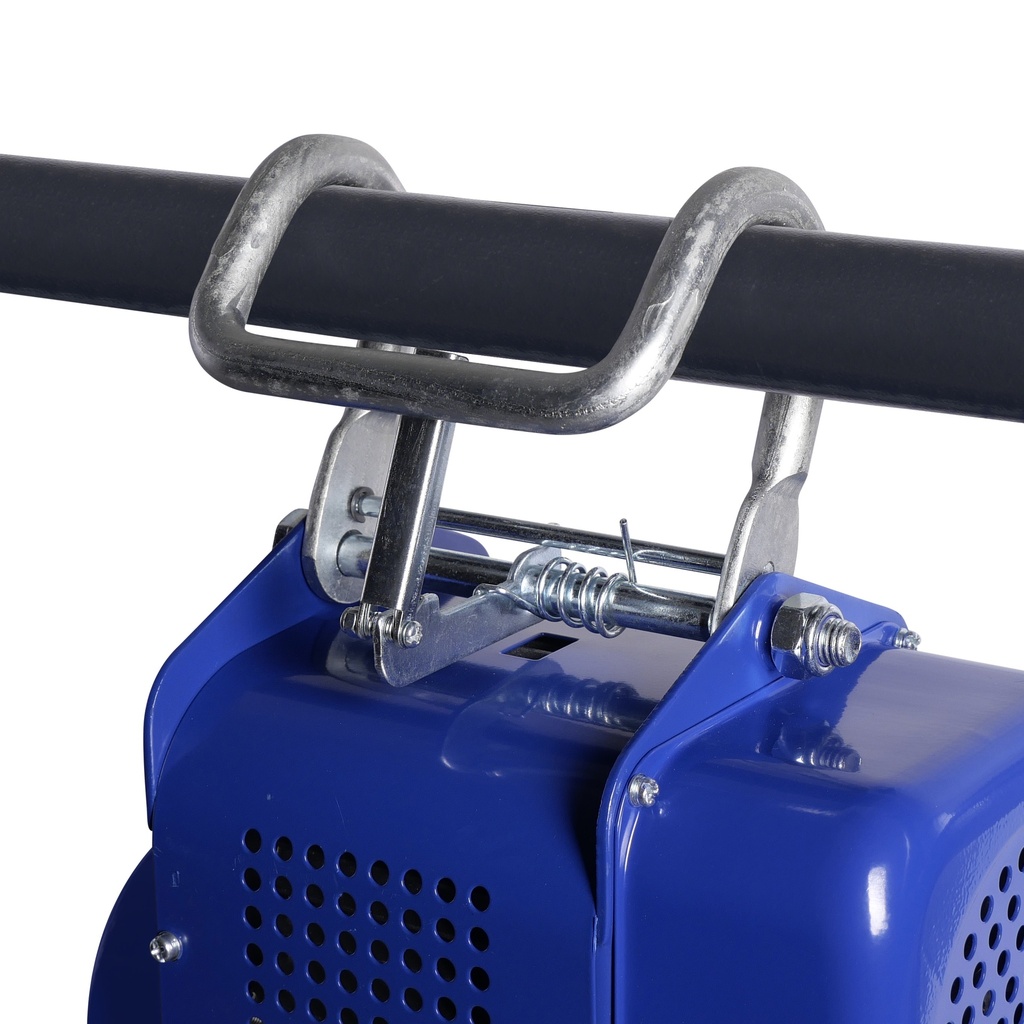

  • Simple suspension

Quickly attached to a support point and ready to use.


  • Electric control

Ensures controlled and user-friendly lifting.

Technical specifications

  • Lifting capacity = 250 / 500 kg
  • Power supply = 230V
  • Frequency = 50 Hz
  • Lifting speed loaded = 4 m/min. / 8 m/min
  • Lifting height max. = 9 m / 18 m
  • Rope diameter = 3 mm
  • Input power = 550 W
  • Input current = 2.4 A
  • Rope length = 18 m
  • Insulation class = B
  • Isolation class = IP54
  • Rope tensille strength = 1870 N/mm²
  • Max. tube diameter (mounting) = 48 mm

Dimensions and weights

  • Weight =0.0Kg
  • Product weight =19.0Kg
  • Length =0.0mm
  • Width =0.0mm
  • Height =0.0mm
  • Product Length =0.0mm
  • Product Width =0.0mm
  • Product Height =0.0mm
