PRODUCT DESCRIPTION

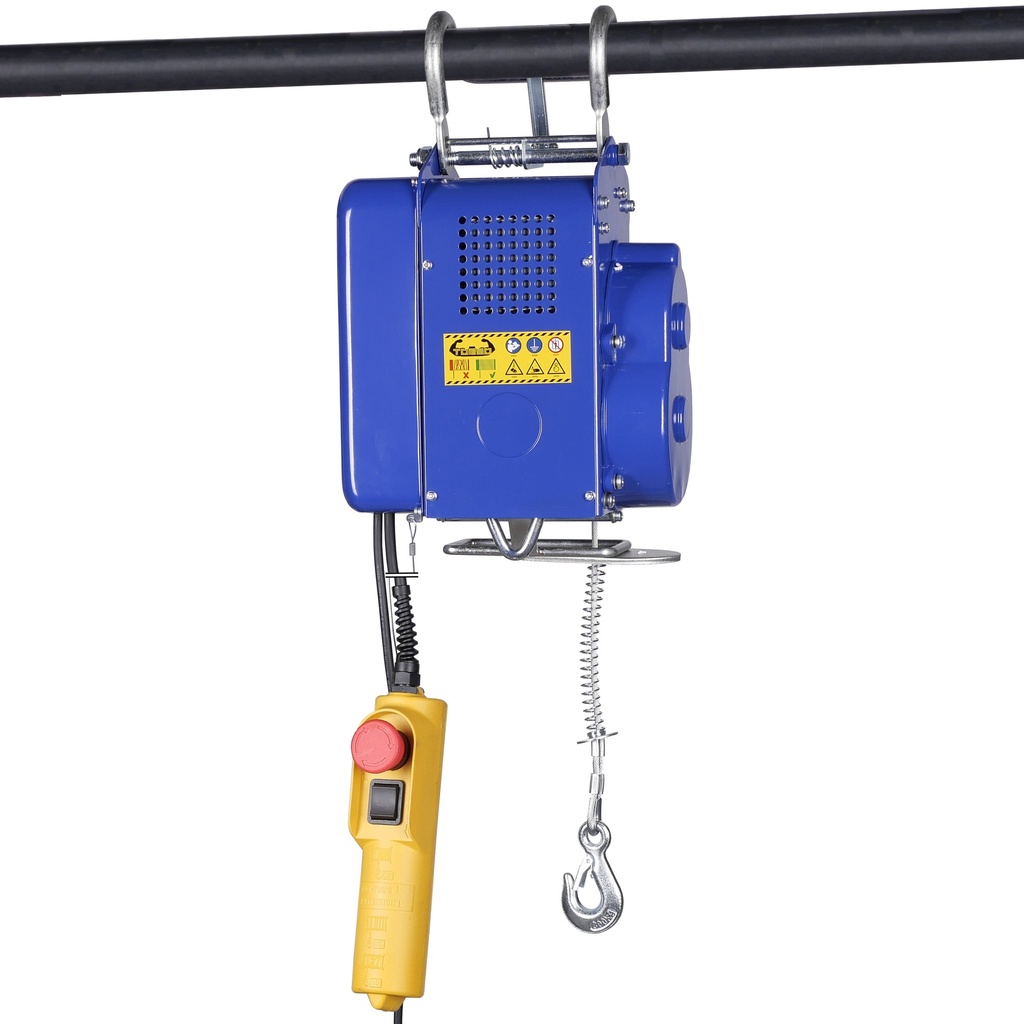

Torso electric winch is the ideal choice for lifting jobs on construction sites, in technical environments and in industrial applications. With a lifting capacity of 600 kg, user-friendly design and maximum safety features, this electric cable winch offers an efficient solution for any job.
Thanks to its compact size, the winch is easy to install and ready for immediate use.
Hoist specifications:
- Versatile use: suitable as an electric construction winch, cart winch or cable winch for various applications.

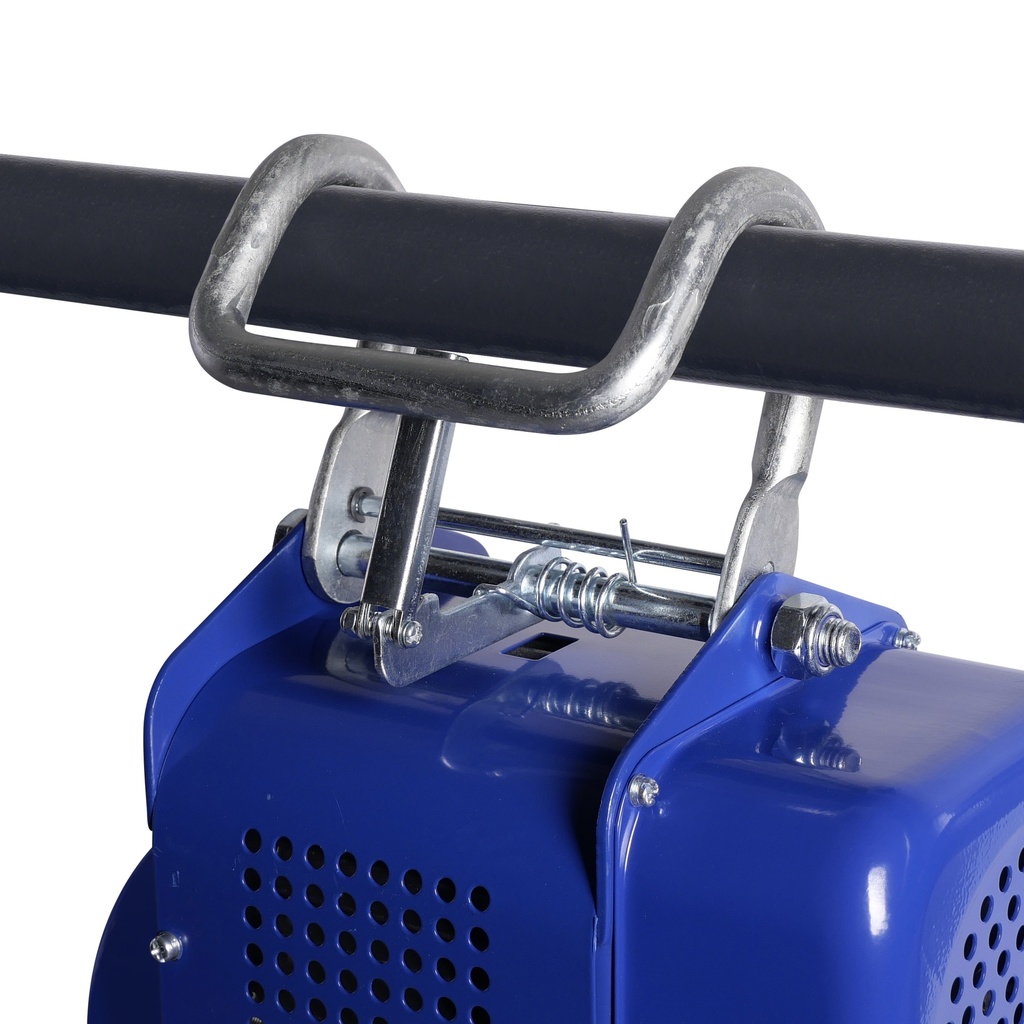

- Easy installation: light and compact, easy to mount on scaffolding or other anchor points.
- Maximum safety: complies with Machine Directive 2006/42/EC Equipped with emergency stop, integrated load pressure brake and overload protection.

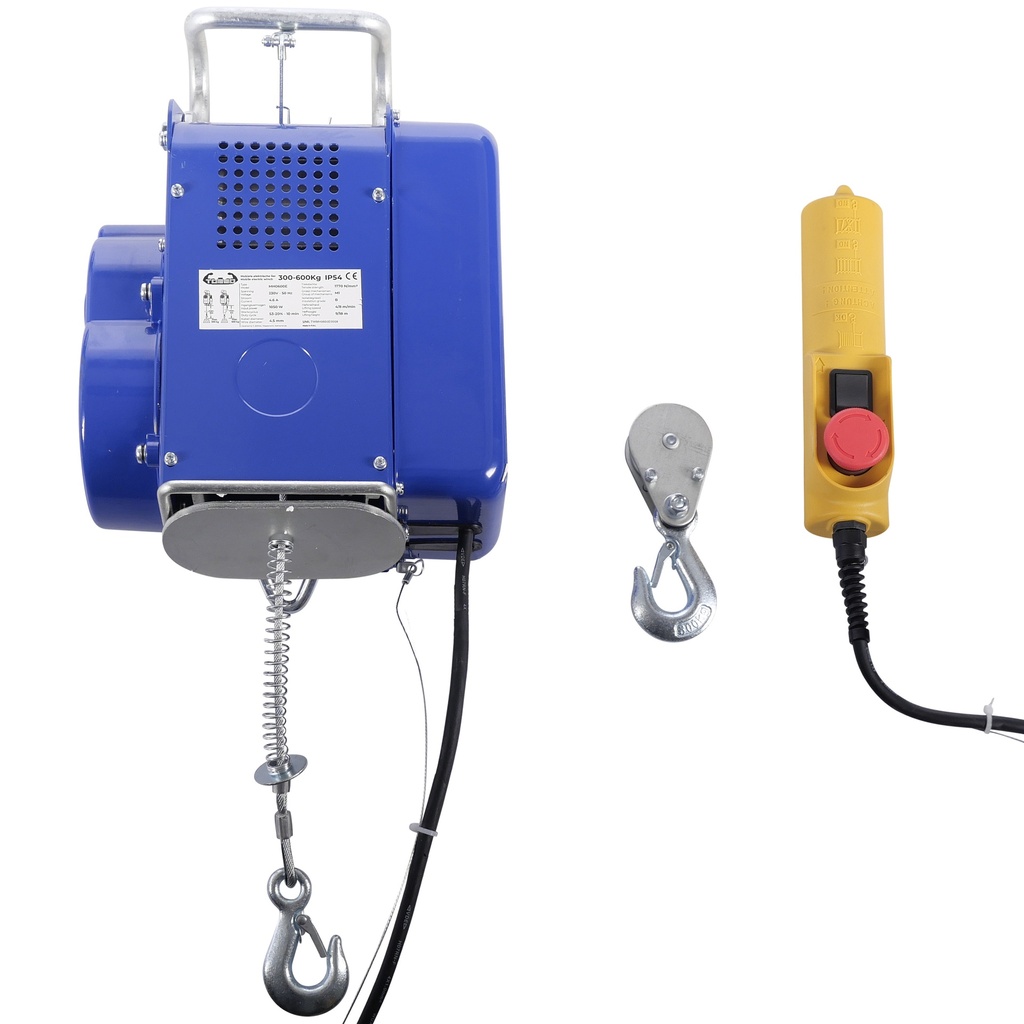

- Ready to use immediately: supplied with mounting bracket,
- Suitable for various applications: ideal for construction projects, technical environments and light industrial work.
Technical specifications
- Lifting capacity = 300 / 600 kg
- Power supply = 230V
- Frequency = 50 Hz
- Input current = 4.6 A
- Insulation class = B
- Isolation class = IP54
- Input power = 1050 W
- Lifting height max. = 9 m / 18 m
- Lifting speed loaded = 4 m/min. / 8 m/min
- Rope length = 18 m
- Rope diameter = 4.5 mm
- Rope tensille strength = 1770 N/mm²
- Max. tube diameter (mounting) = 48 mm
Dimensions and weights
- Weight =22.0Kg
- Product weight =21.0Kg
- Length =485.0mm
- Width =360.0mm
- Height =307.0mm
- Product Length =285.0mm
- Product Width =235.0mm
- Product Height =150.0mm
