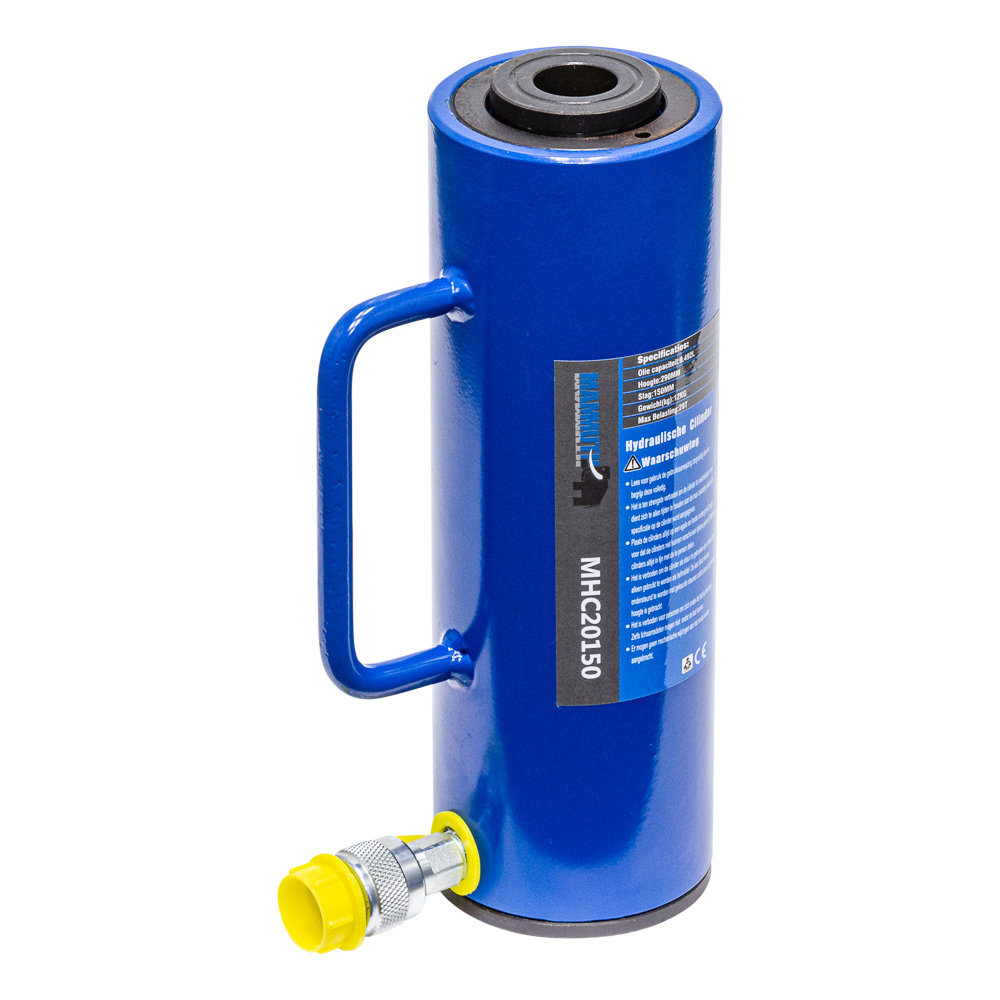

Hollow cylinder 20 ton stroke 150mm

[MHC20150] Hollow cylinder 20 ton stroke 150mm

€ 0.00 € 250.00

  • Capacity
  • Stroke
  • Pressure max.
  • Oil capacity
  • Outside diameter
  • Effective pressure area
  • Bore diameter
  • Principal axis diameter
  • Plunger diameter
  • Oil supply hole thread (Rc)
  • Top cap height
  • Packaging
Add to cart
Add to wishlist
Contact Us
  • Incl. side handles
  • 700 bar max working pressure
  • Adjustable top saddle
  • Hard coat finish
  • High-strength

Shop equipment / Hydraulic tools / Hollow cylinders

Product Code: MHC20150

EAN: 8720028090181

PRODUCT DESCRIPTION

Hydraulic hollow cylinder

This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.

Technical specifications

  • Capacity = 20 Ton
  • Stroke = 150 mm
  • Pressure max. = 700 Bar
  • Oil capacity = 0.492 L
  • Outside diameter = 113 mm
  • Effective pressure area = 32.8 cm²
  • Bore diameter = 75 mm
  • Principal axis diameter = 55 mm
  • Plunger diameter = 27 mm
  • Oil supply hole thread (Rc) = 3/8"
  • Top cap height = 10 mm

Dimensions and weights

  • Weight =12.3Kg
  • Product weight =11.3Kg
  • Length =385.0mm
  • Width =195.0mm
  • Height =215.0mm
  • Product Length =0.0mm
  • Product Width =0.0mm
  • Product Height =0.0mm
