- Incl. side handles
- 700 bar max working pressure
- Adjustable top saddle
- Hard coat finish
- High-strength
Product Code: MHC60100
EAN: 8720028053377
PRODUCT DESCRIPTION

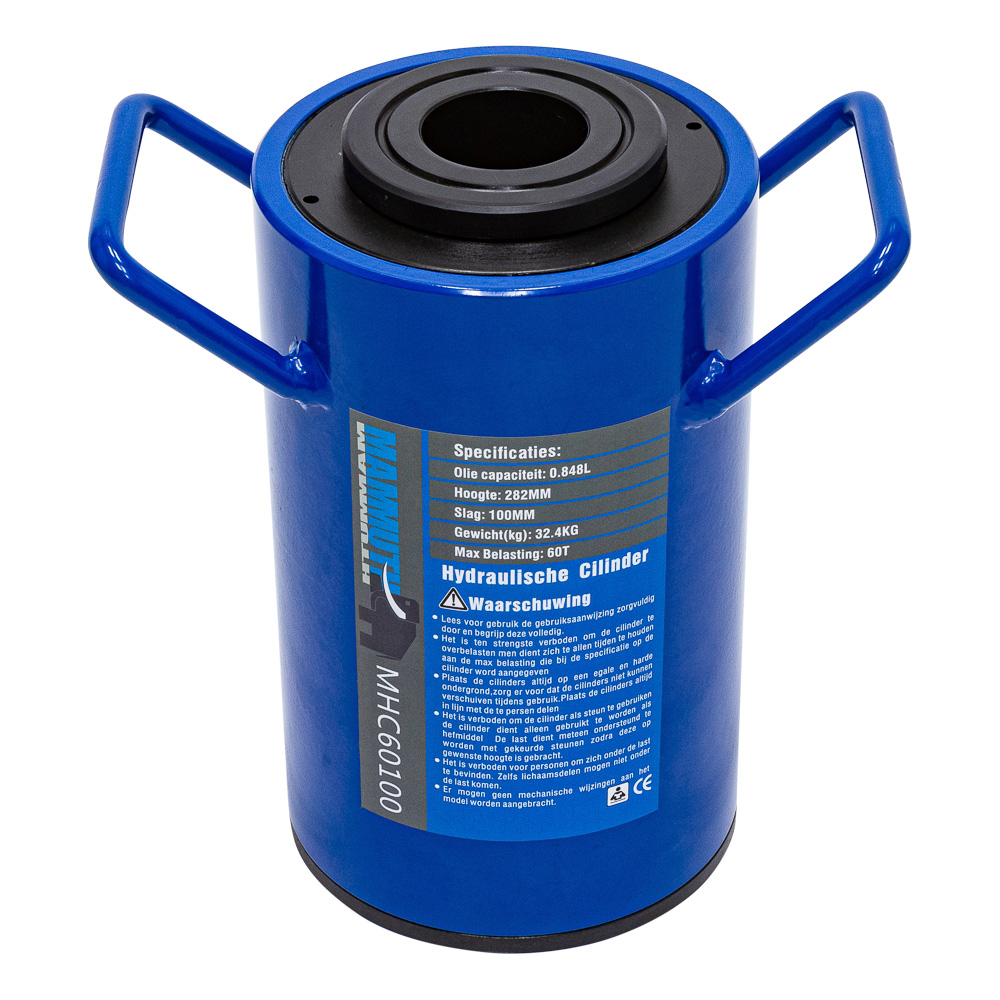

Hydraulic hollow cylinder
This type plunger prevents blocking, caused by slight unbalanced loading of the piston.
Dust ring prevents dust from entering the cylinder.
The step-limited piston prevents over-travel.
The wear ring increases the lifetime of the cylinder.
Technical specifications
- Capacity = 60 Ton
- Stroke = 100 mm
- Pressure max. = 700 Bar
- Oil capacity = 0.848 L
- Outside diameter = 187 mm
- Effective pressure area = 84.7 cm²
- Bore diameter = 135 mm
- Principal axis diameter = 100 mm
- Plunger diameter = 54 mm
- Oil supply hole thread (Rc) = 3/8"
- Top cap height = 12 mm
Dimensions and weights
- Weight =34.0Kg
- Product weight =31.6Kg
- Length =330.0mm
- Width =325.0mm
- Height =265.0mm
- Product Length =235.0mm
- Product Width =165.0mm
- Product Height =260.0mm
