High-quality aluminum wire feeder
Lift-TIG function
Infinitely adjustable
ABS shock resistant housing
5 years warranty
Product Code: ML160HG
EAN: 8720028090440
PRODUCT DESCRIPTION

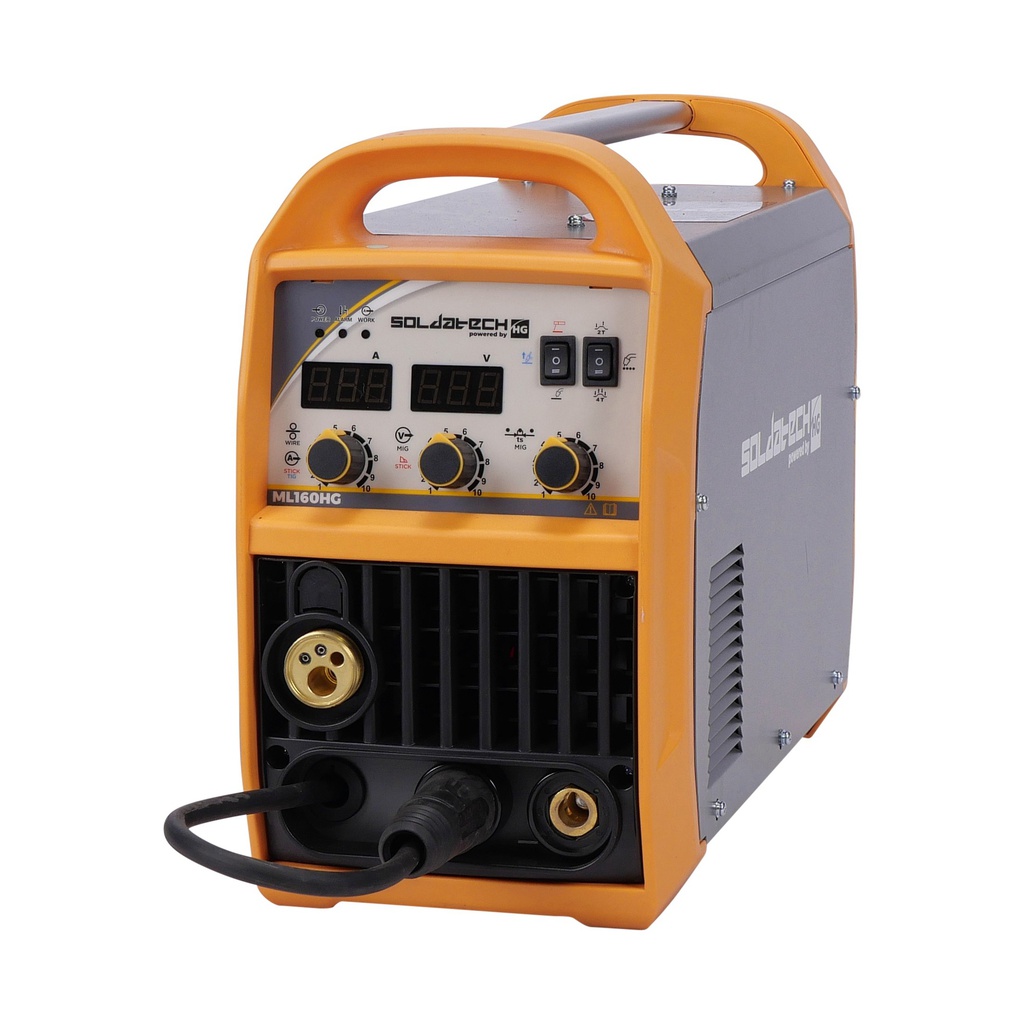

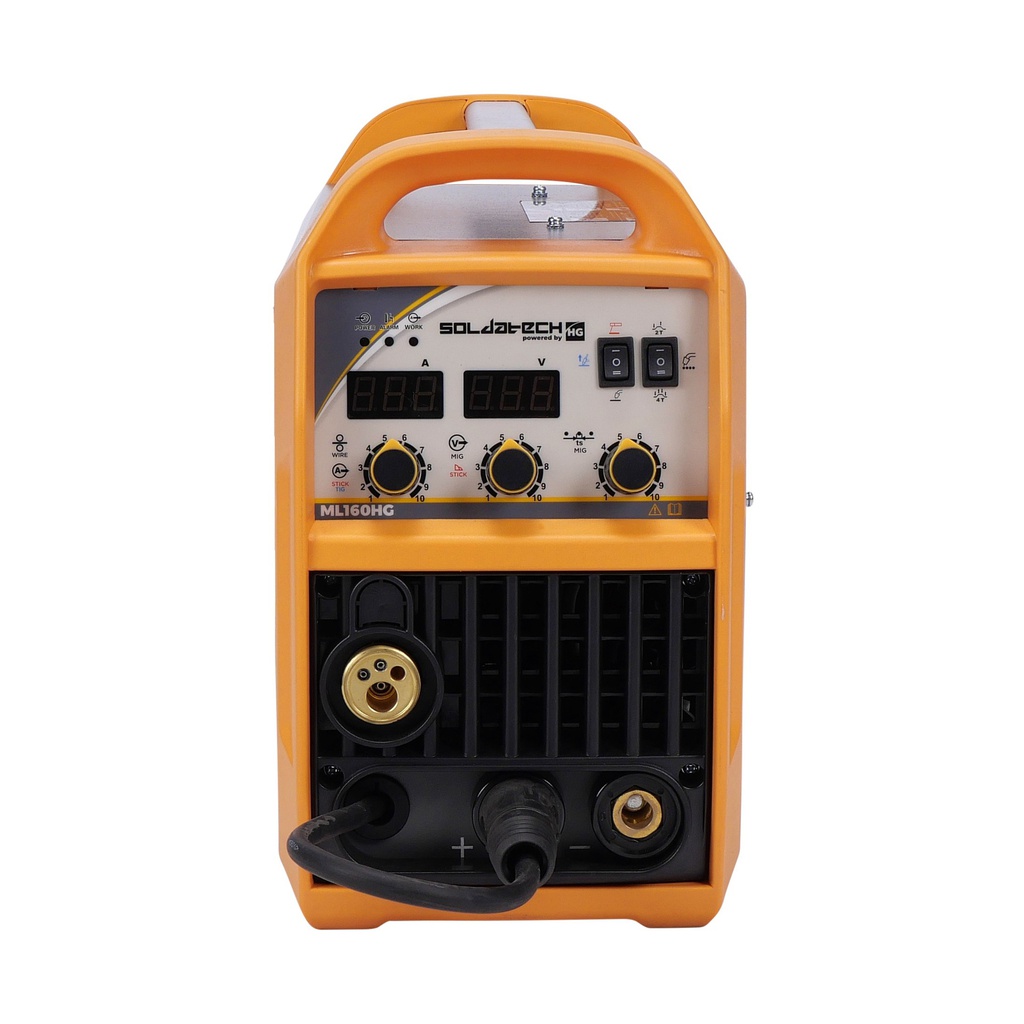

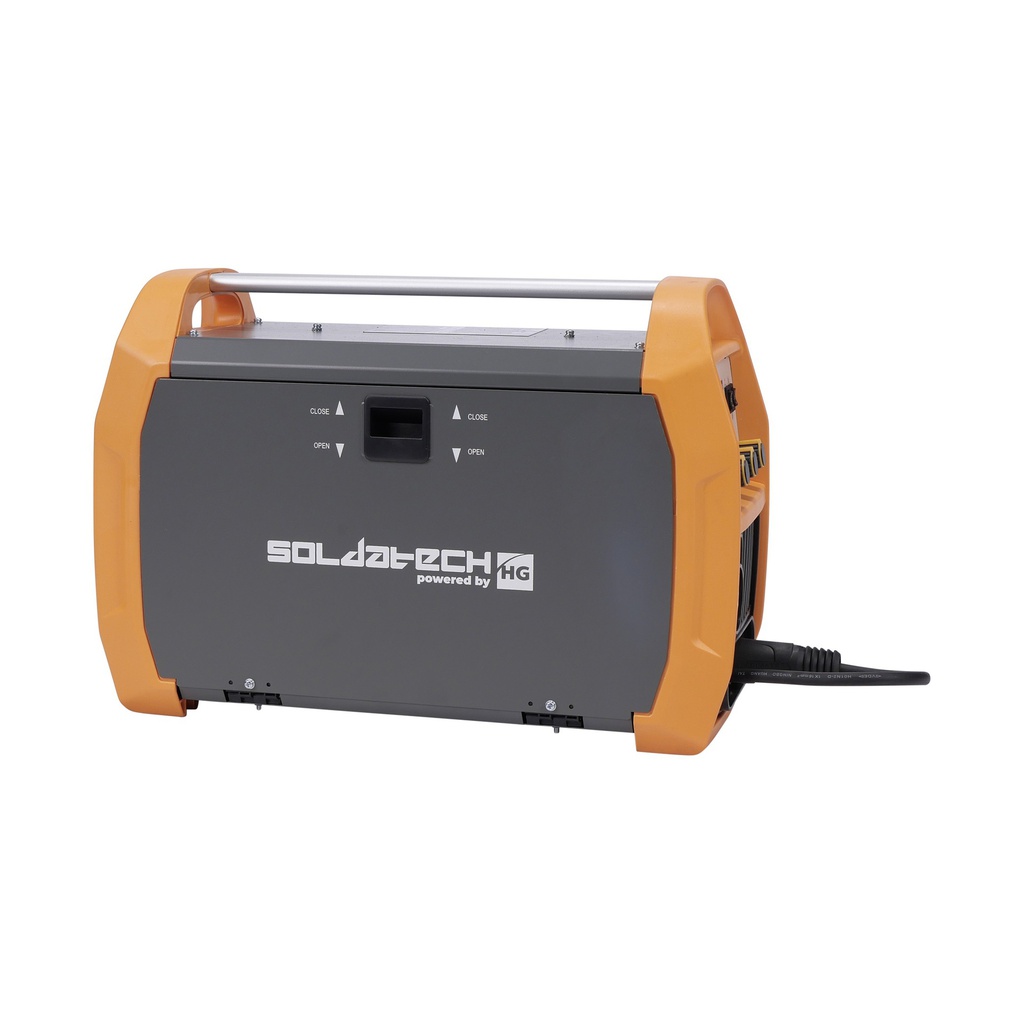

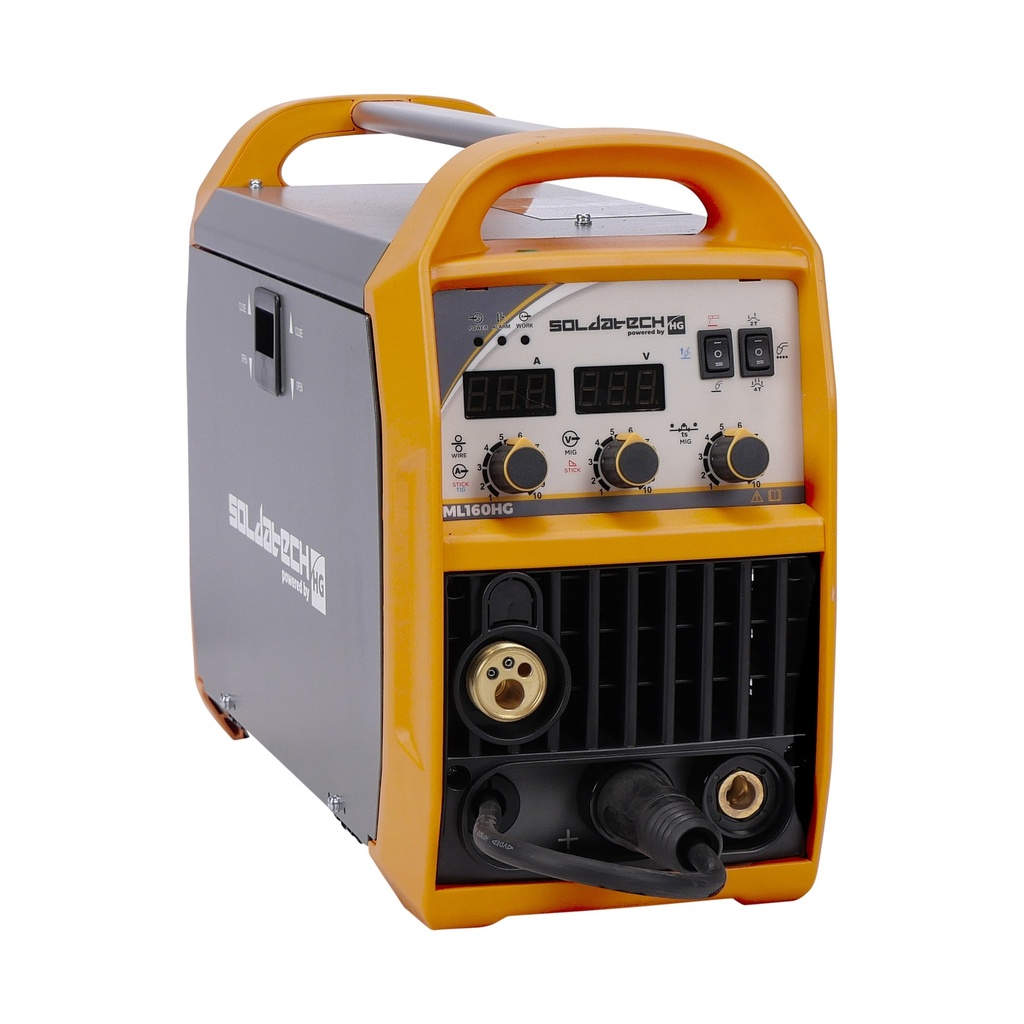

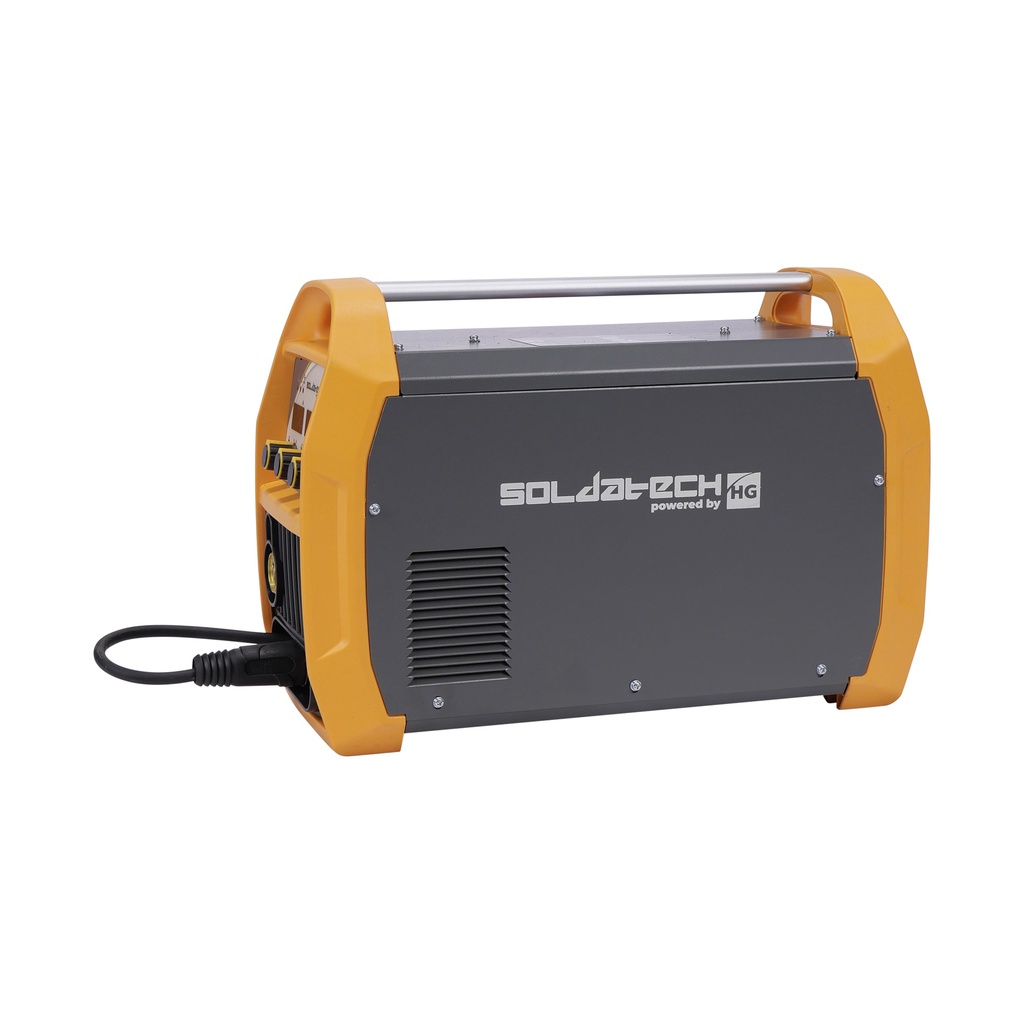

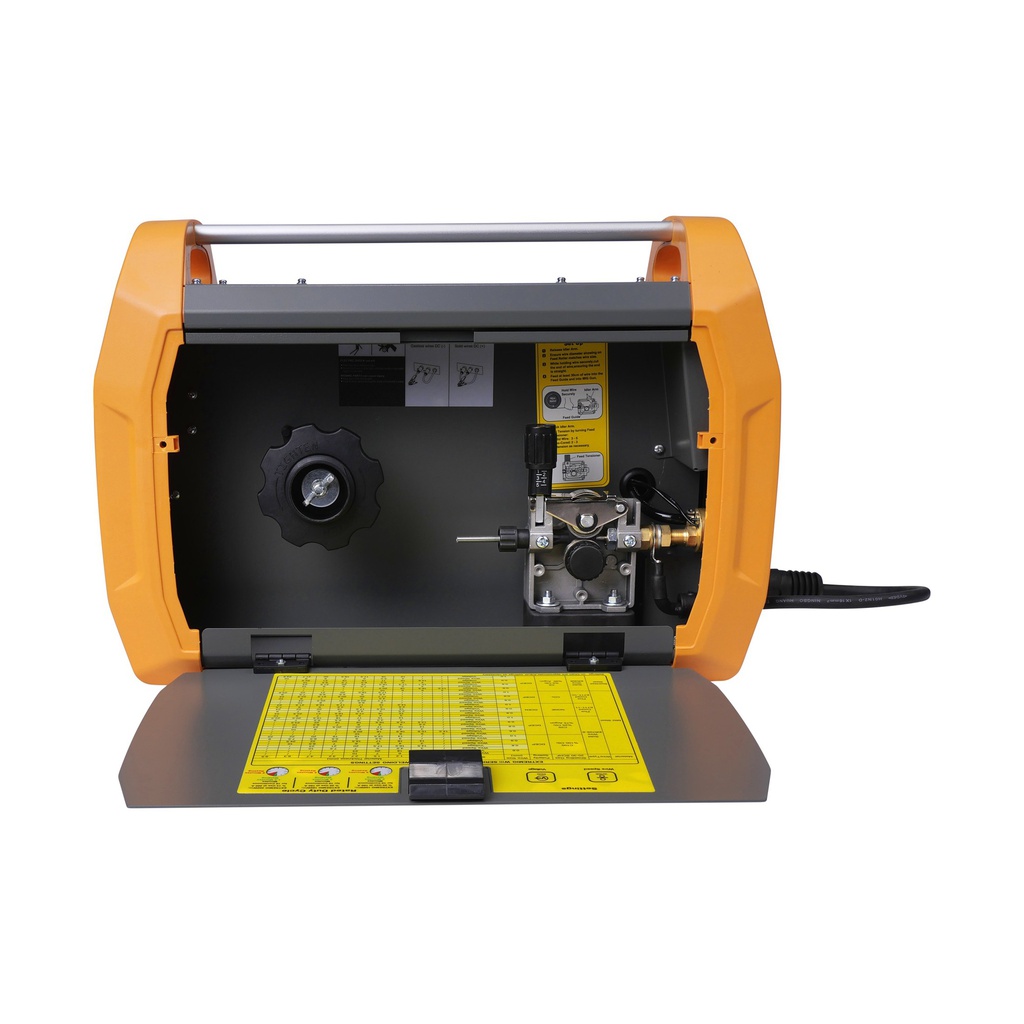

MIG/MAG 160A welding inverter / welding machine
This Soldatech powered by HG portable welding machine is a handy and versatile machine with which various welding processes including MIG welding, Lift-TIG and also electrode welding can be performed with ease.
The wire speed is automatically adjusted to the set amperage, ensuring professional results.
The modern IGBT inverter technology ensures that the ML160HG delivers sustainable performance with more power and a very high duty cycle. The ML160HG is also equipped with thermal safety as standard, which in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.
The hot-start/anti-stick function increases the welding current quickly, so that the electrode does not stick to the workpiece during ARC welding.
Ideal for welding stainless steel, carbon steel, low alloy steel and aluminium (MIG).
Each ML160HG comes standard including:

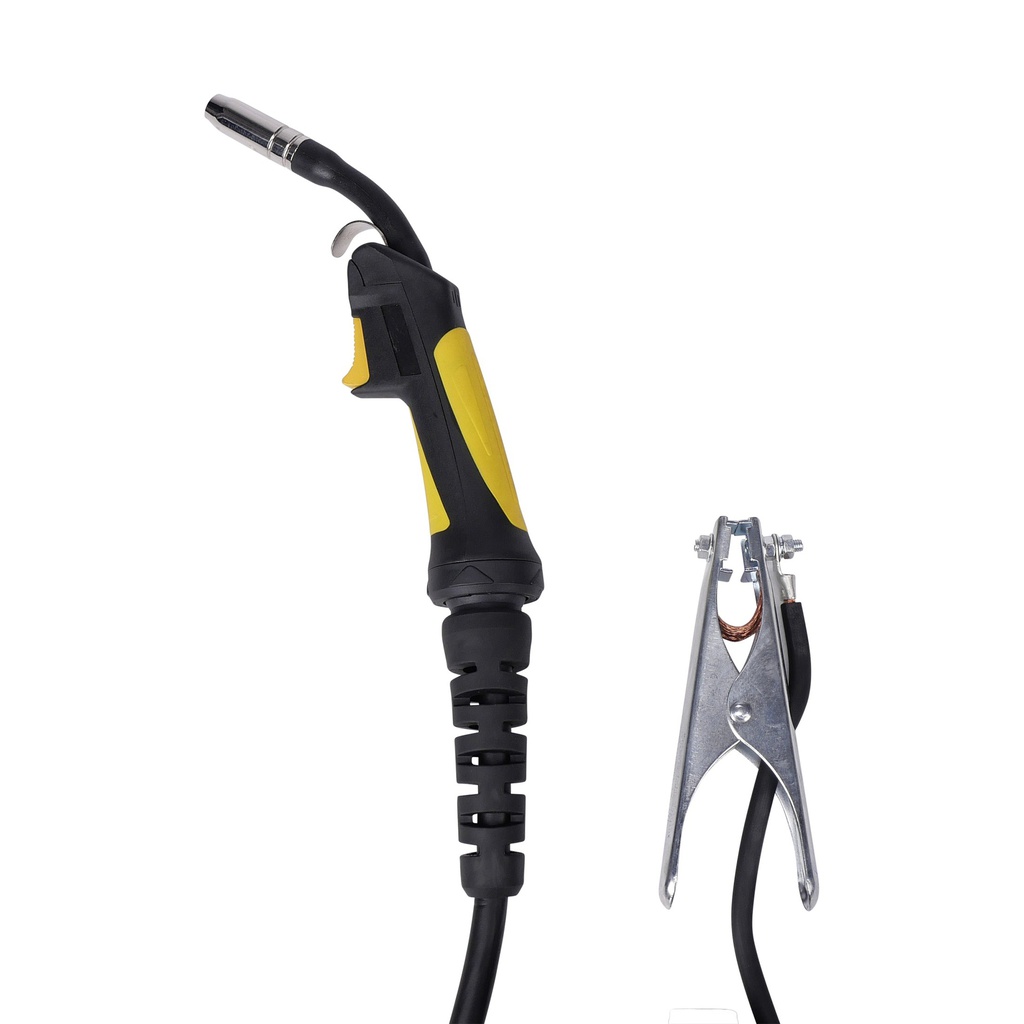

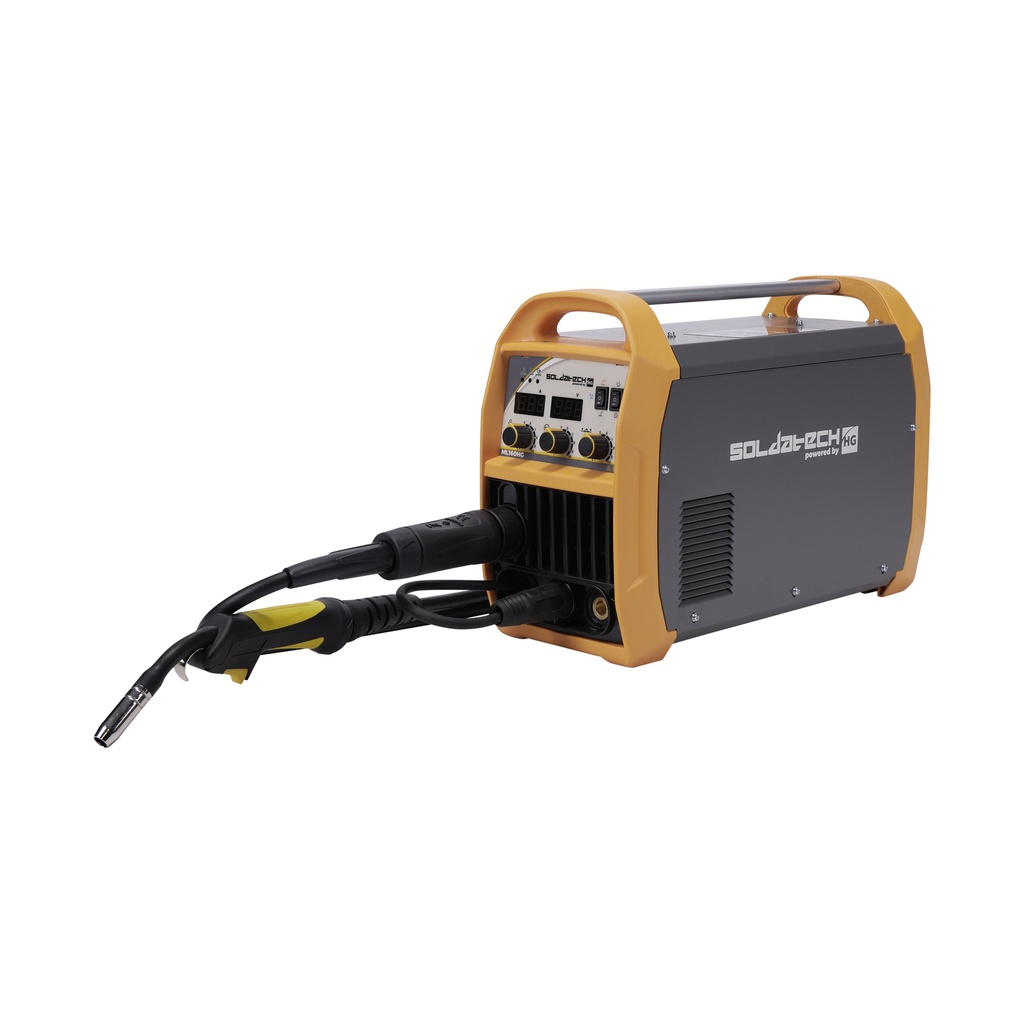

- Soldatech MLT15M3 MIG torch with Euro connector and 3m cable
- Welding ground clamp with 2m 16mm² cable
- Neoprene power cable with 2m 3x2.5mm² cable
- European Dinse couplers 13mm
- Gas line including NW5 quick coupler 3m
- 1x Wire feed roll: 0.8 + 1.0
Technical specifications
- Frequency = 50/60 Hz
- Voltage = 230V - 1 Phase
- Circuit breaker = 16A B-kar
- Input power = 6.84kVA
- No load voltage = 68V
- Weldable welding wire = 0.6 / 0.8 / 1.0 mm
- Isolation class = IP21S
- Duty cycle @40C = 20% - 160A
- Welding current range = MIG 30 - 160A / MMA 30 - 130A / TIG 20 - 160A
- Duty cycle @20C = 40% - 160A
Dimensions and weights
- Weight =15.2Kg
- Product weight =11.0Kg
- Length =555.0mm
- Width =305.0mm
- Height =420.0mm
- Product Length =490.0mm
- Product Width =200.0mm
- Product Height =335.0mm
