PRODUCT DESCRIPTION

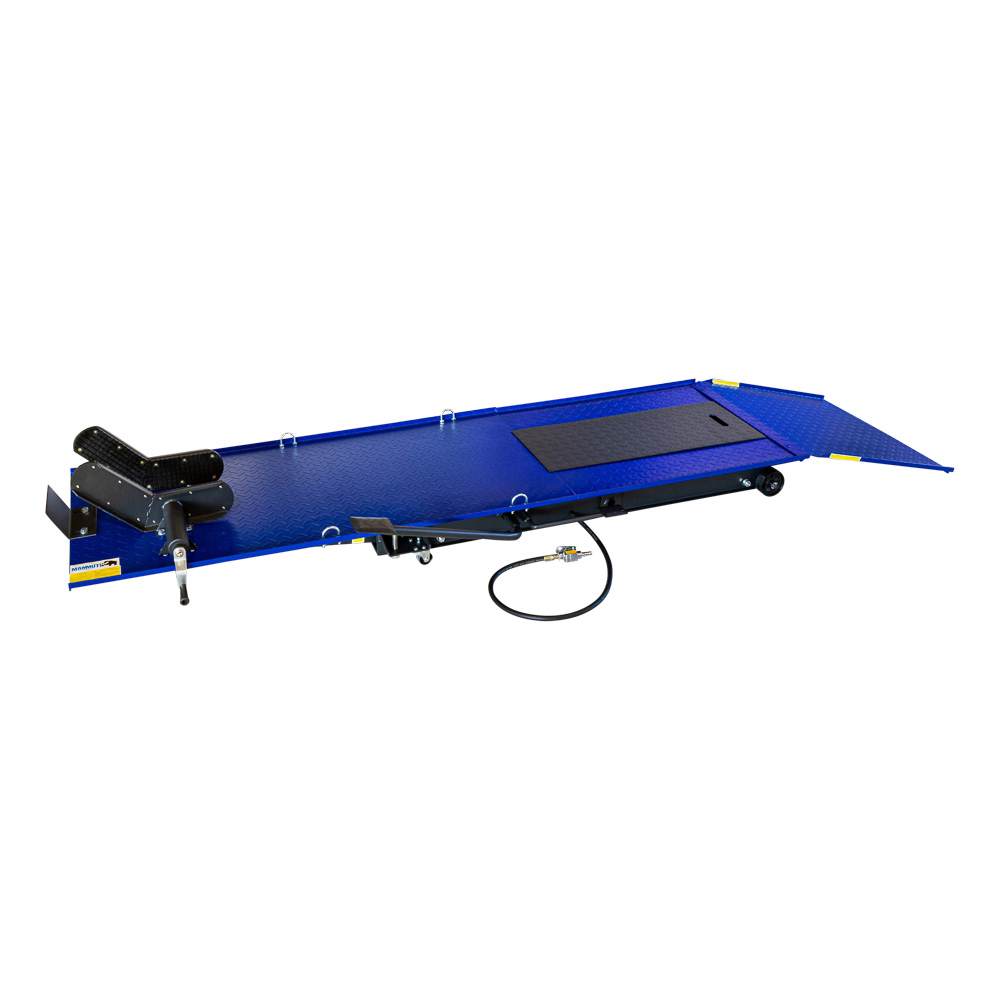

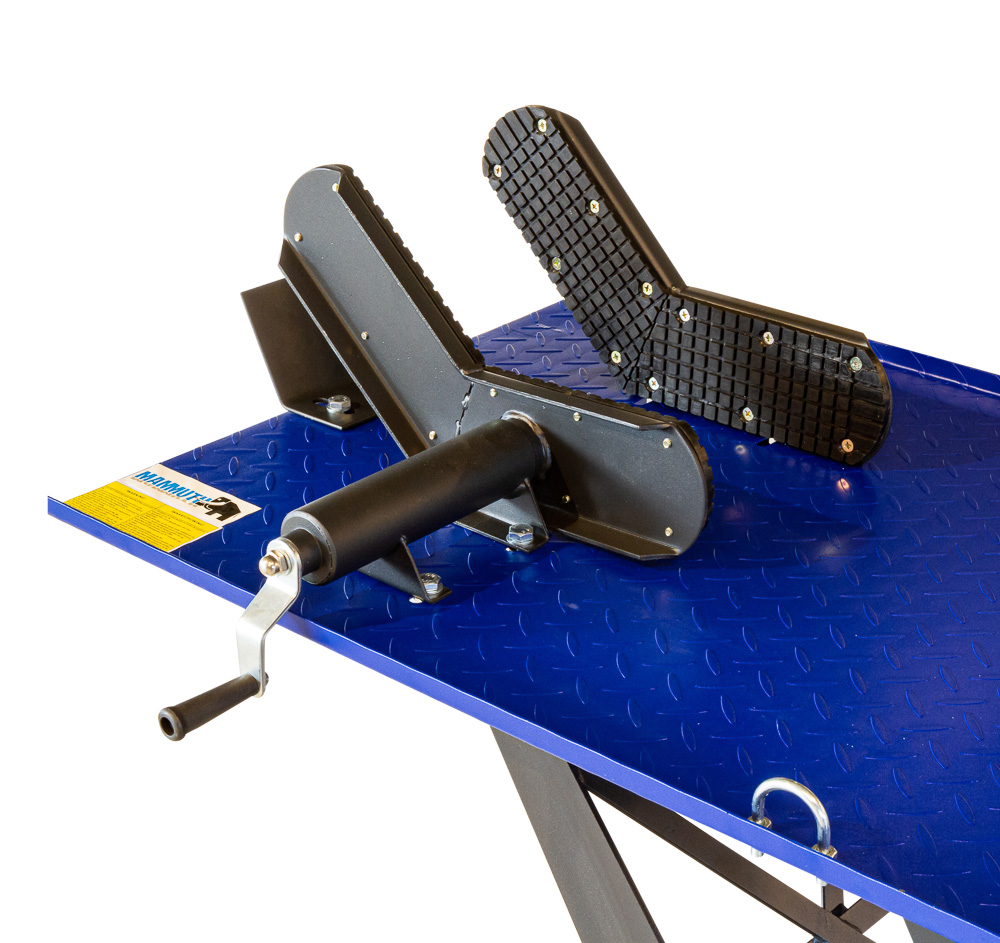

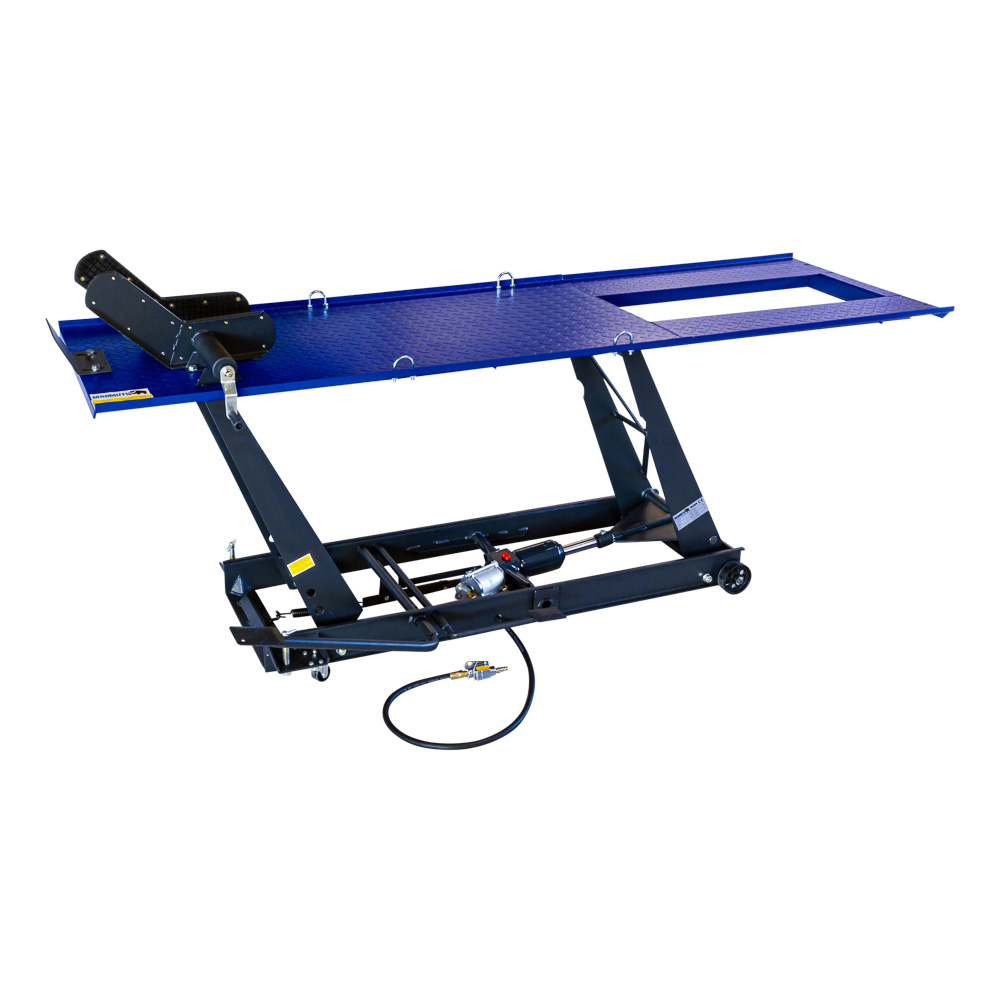

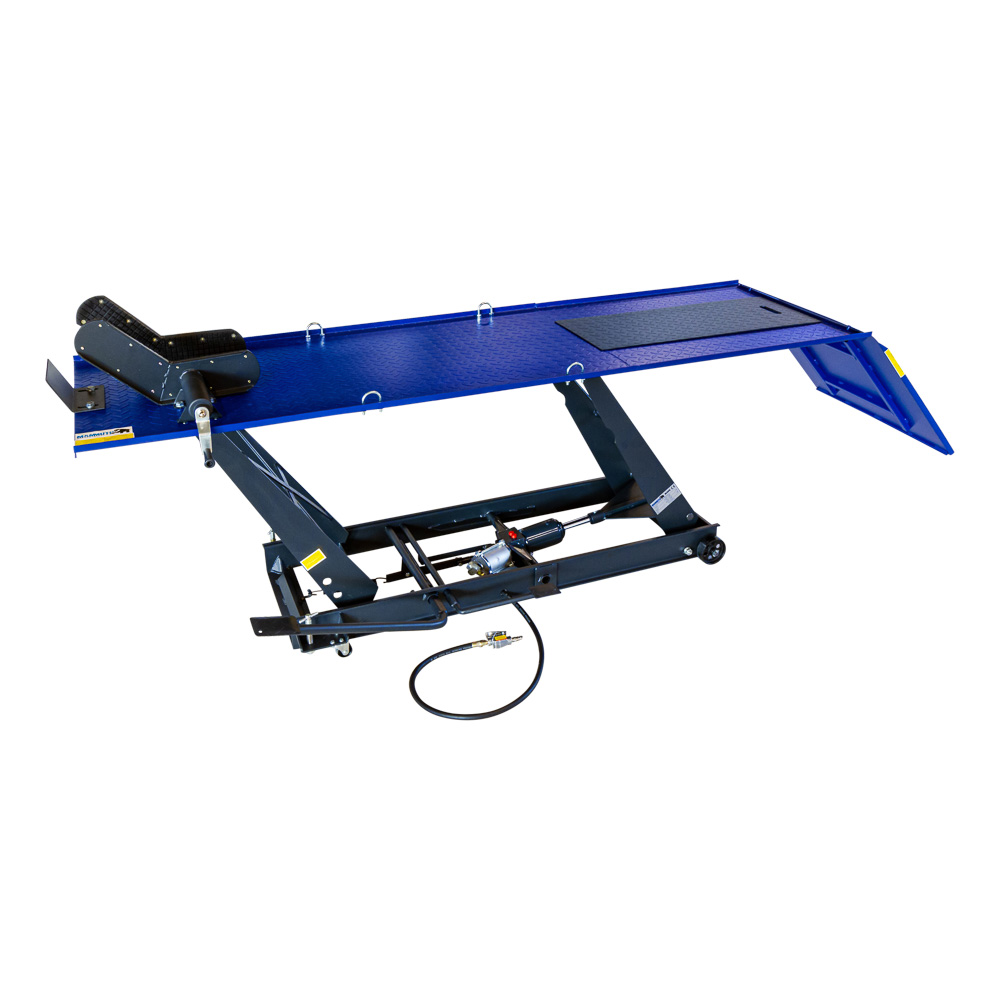

This Mammuth motorcycle lift table makes lifting motorcycles during maintenance or repairs easy and safe. The adjustable feet ensure a stable setup. For safety, the lift table is equipped with a locking pin to prevent unintentional lowering, and the front wheel clamp holds the motorcycle firmly in place.
-

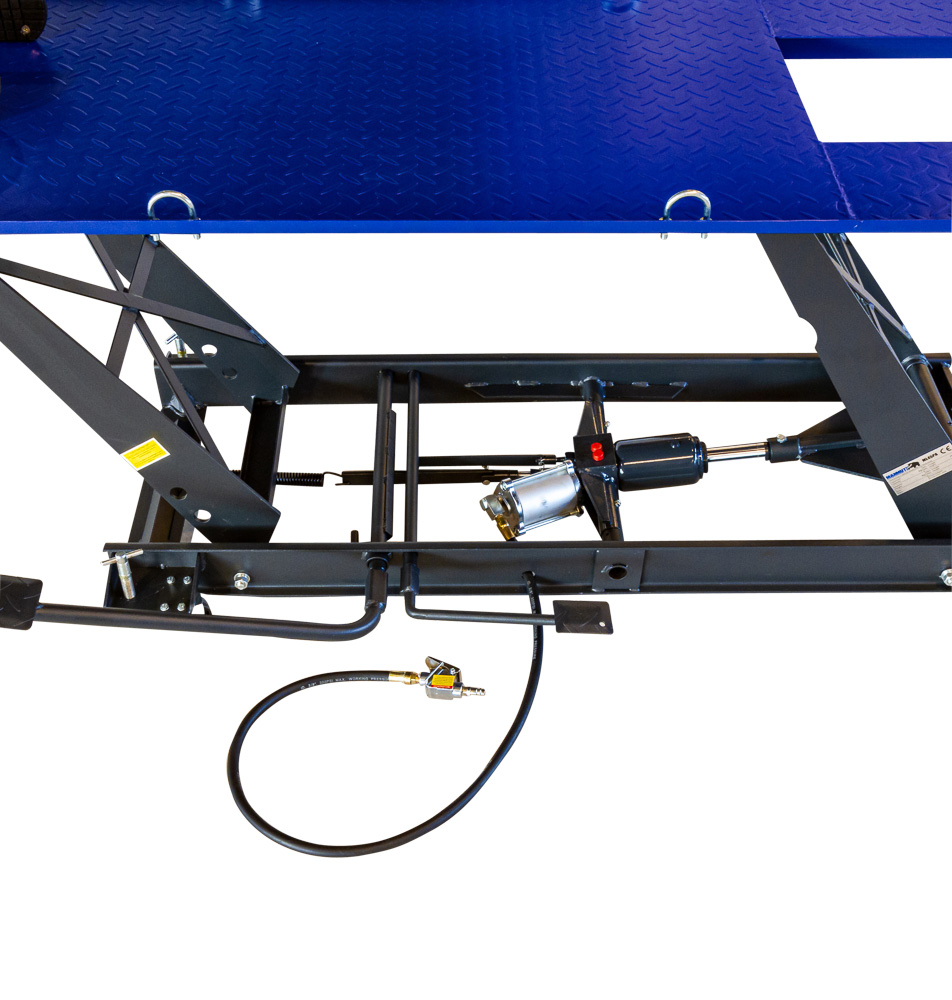

Pneumatic: Lifting without physical effort.
-
Anti-slip surface: Provides extra grip.

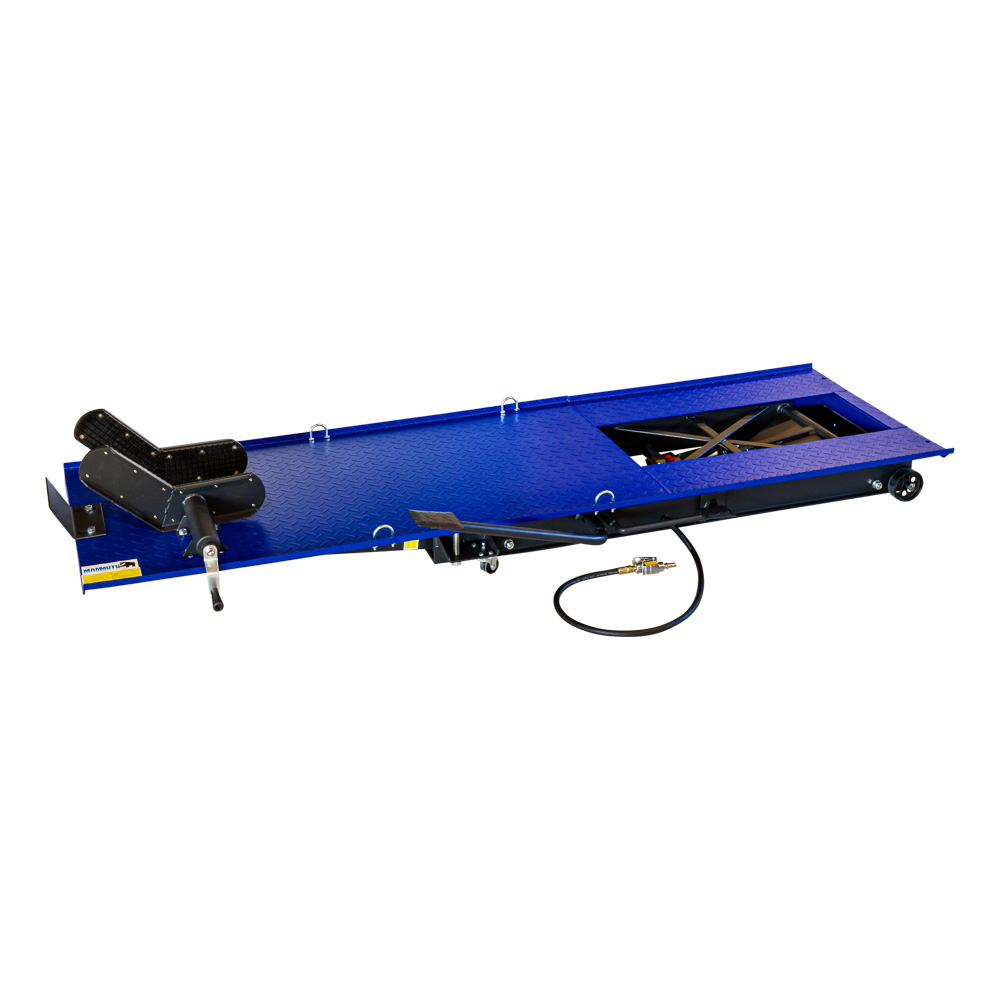

- Removable plate: Allows easy access to the rear wheel.
-
Tie-down points: For securing the motorcycle with straps.
- Mobile: Easy to move.
Technical specifications
- Material = Steel
- Lifting capacity = 450 kg
- Min. height = 170 mm
- Max. height = 790 mm
- Platform length = 2200 mm
- Platform width = 680 mm
- Ramp length = 650 mm
- Opening front wheel clamp max. = 230 mm
- Lifting time = 50 sec
- Air connection = 1/4 NPT
- Working air pressure = 8 bar
- Air consumption = 120 L/min
- Wheel material = Steel
- Front wheel diameter = ø89 mm
- Rear wheel diameter = ø43 mm
- Oil capacity = 0.38 L
- Oil type = OHCH15V
Dimensions and weights
- Weight =152.0Kg
- Product weight =127.0Kg
- Length =750.0mm
- Width =2280.0mm
- Height =290.0mm
- Product Length =2200.0mm
- Product Width =680.0mm
- Product Height =170.0mm
