PRODUCT DESCRIPTION

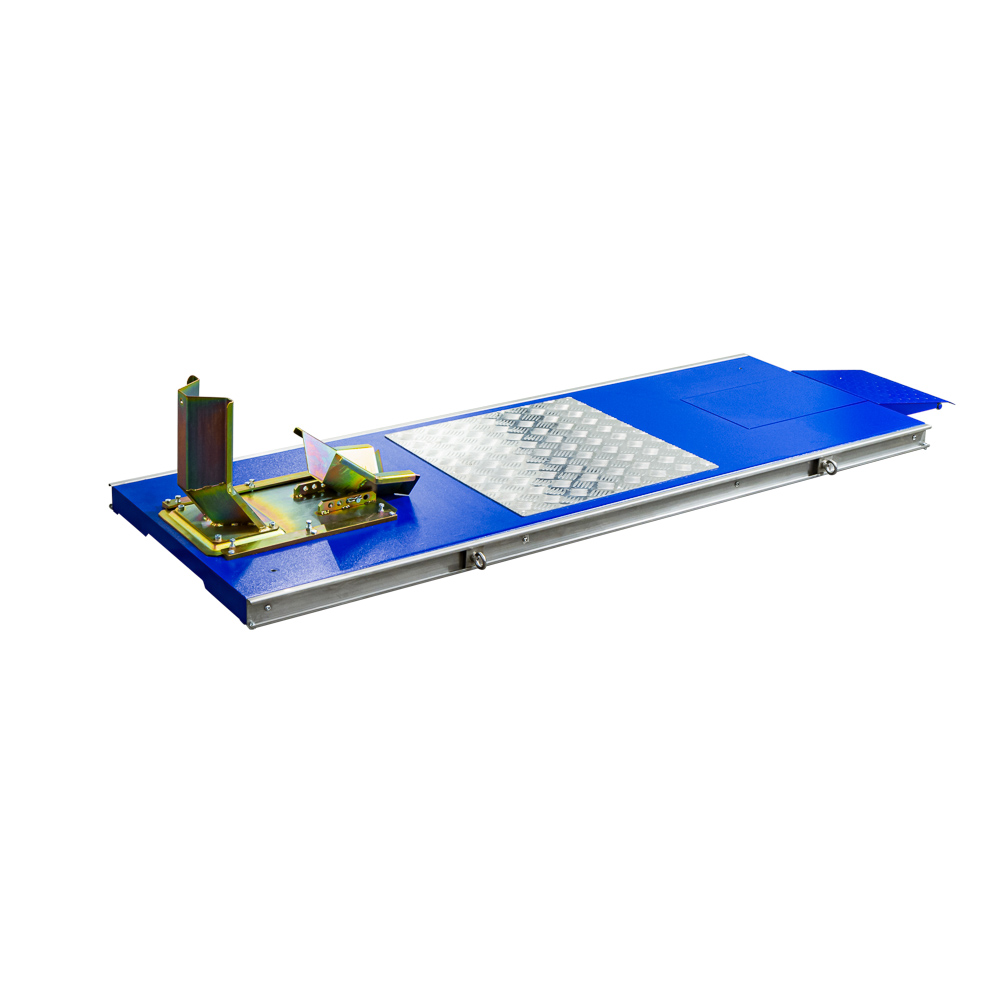

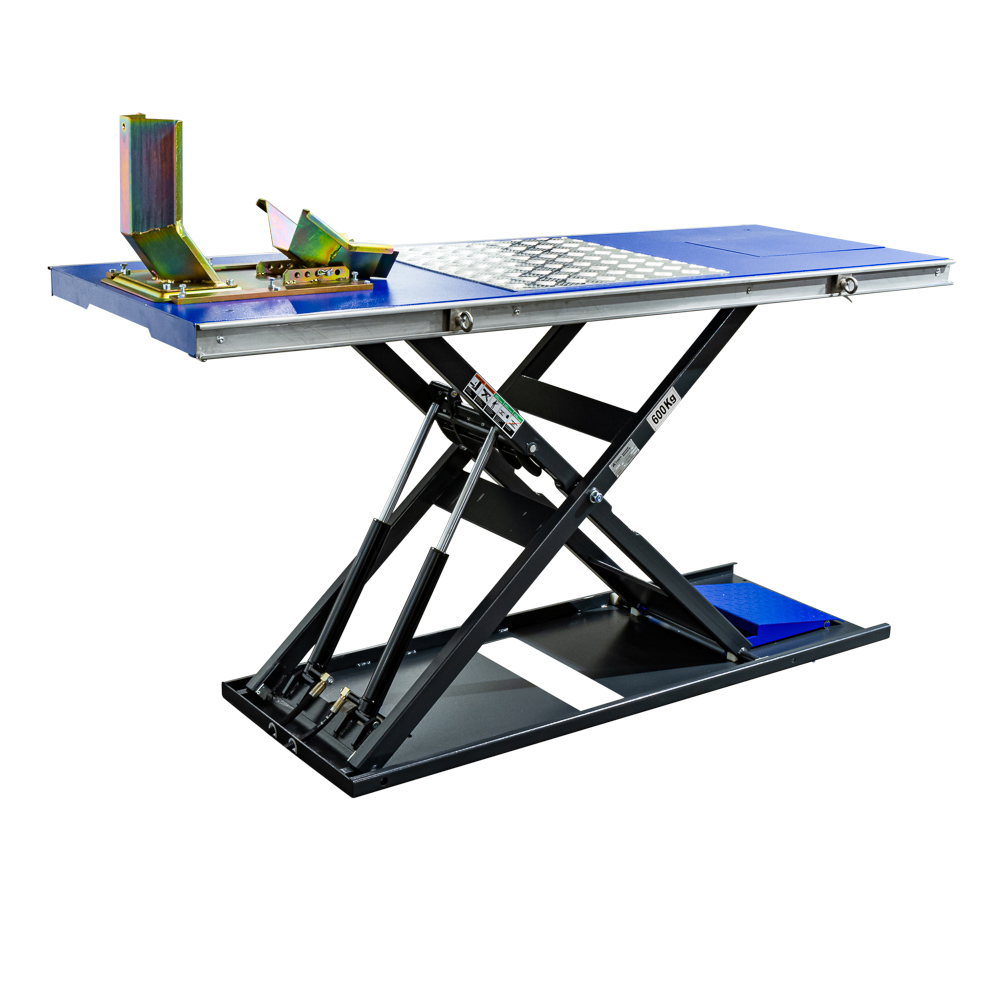

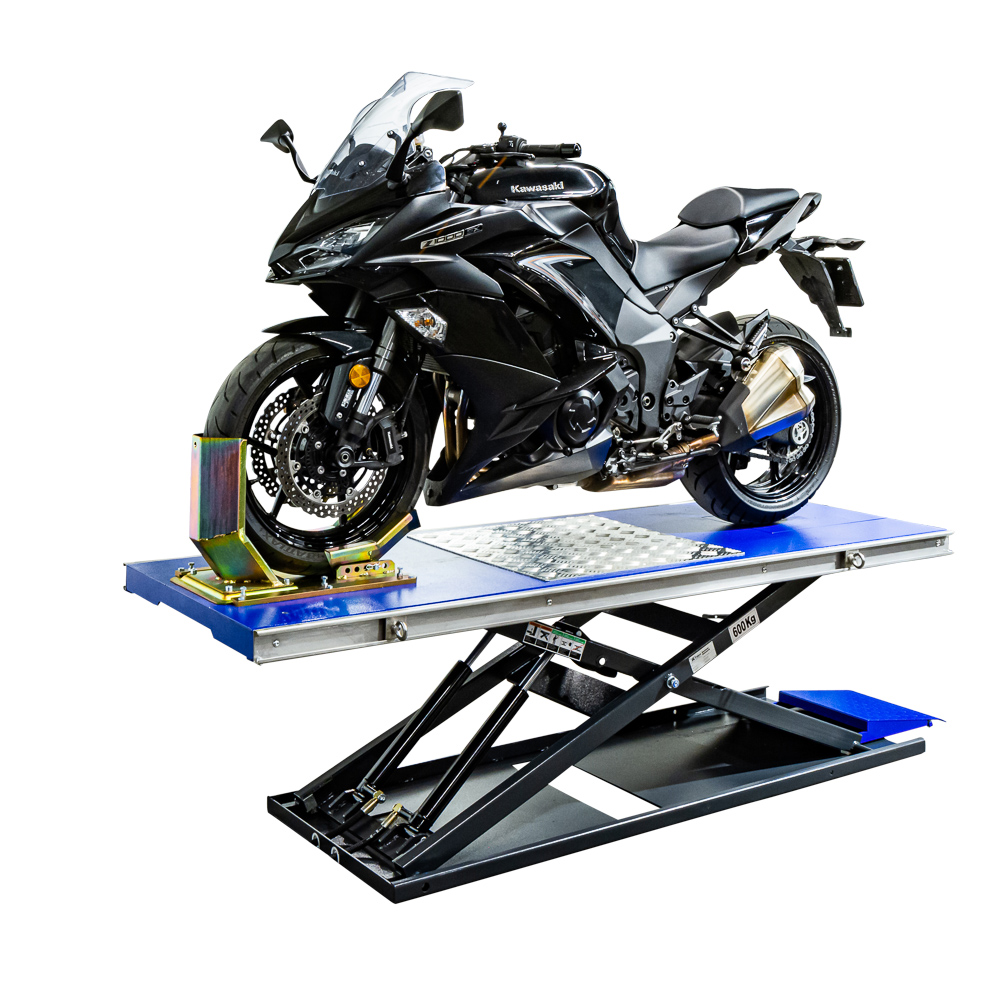

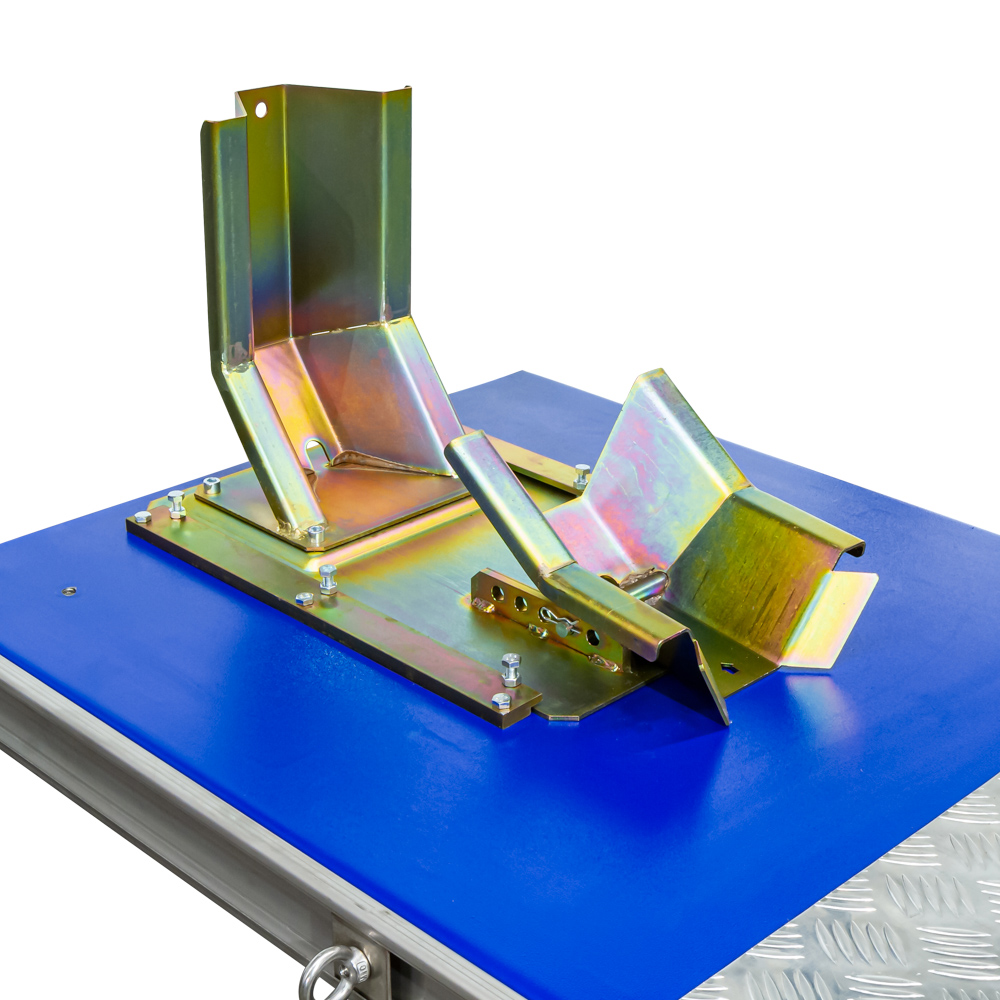

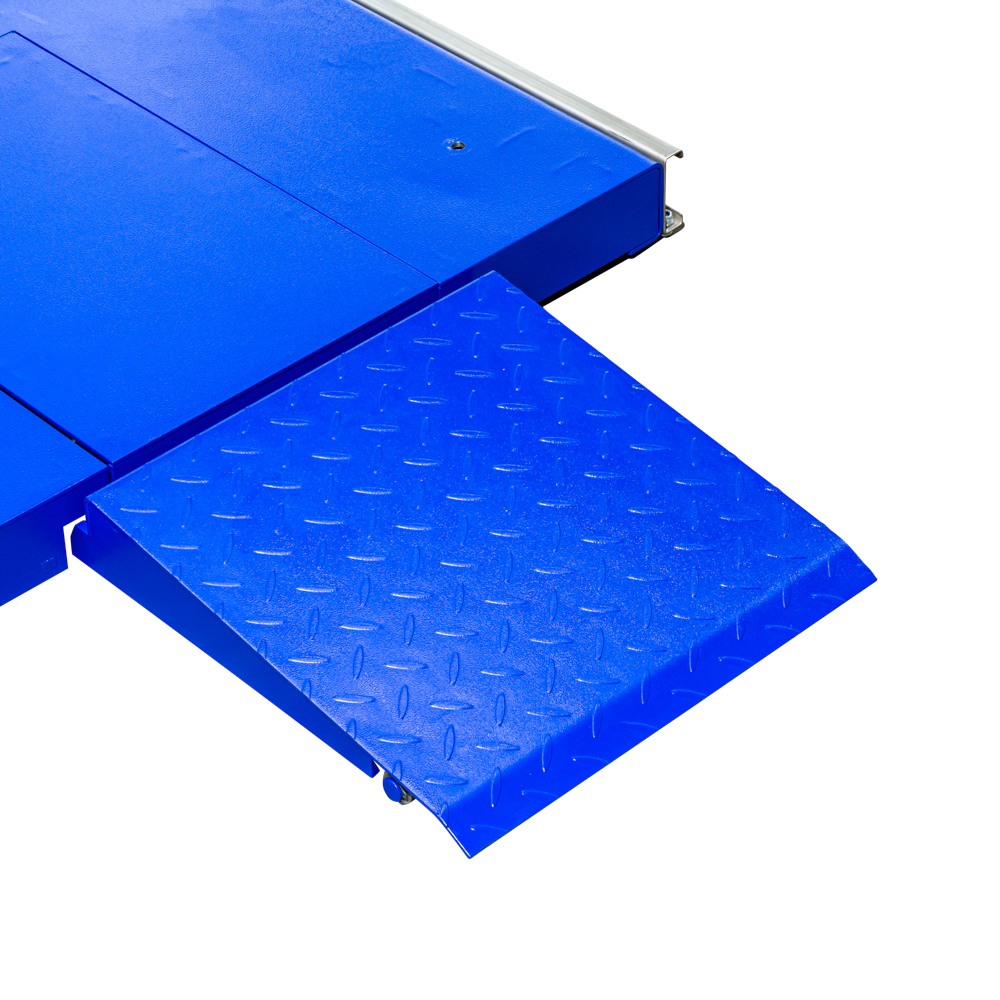

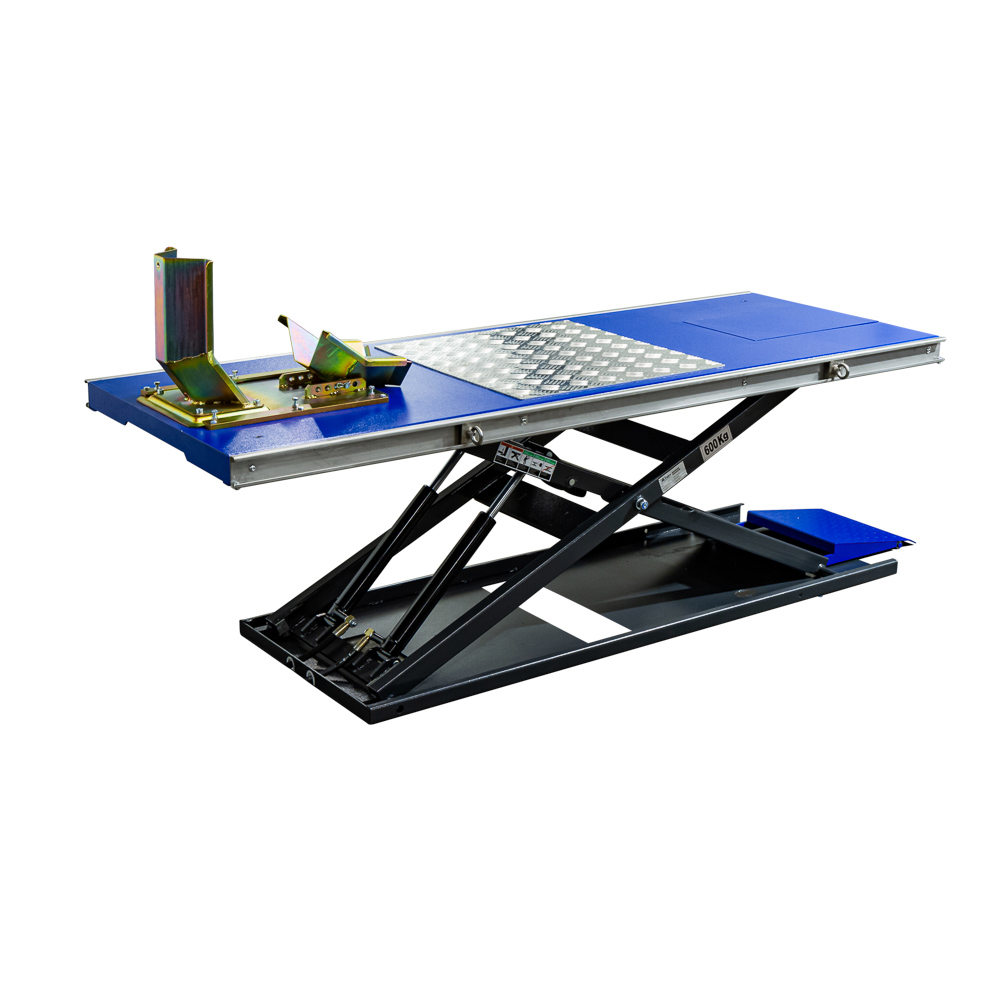

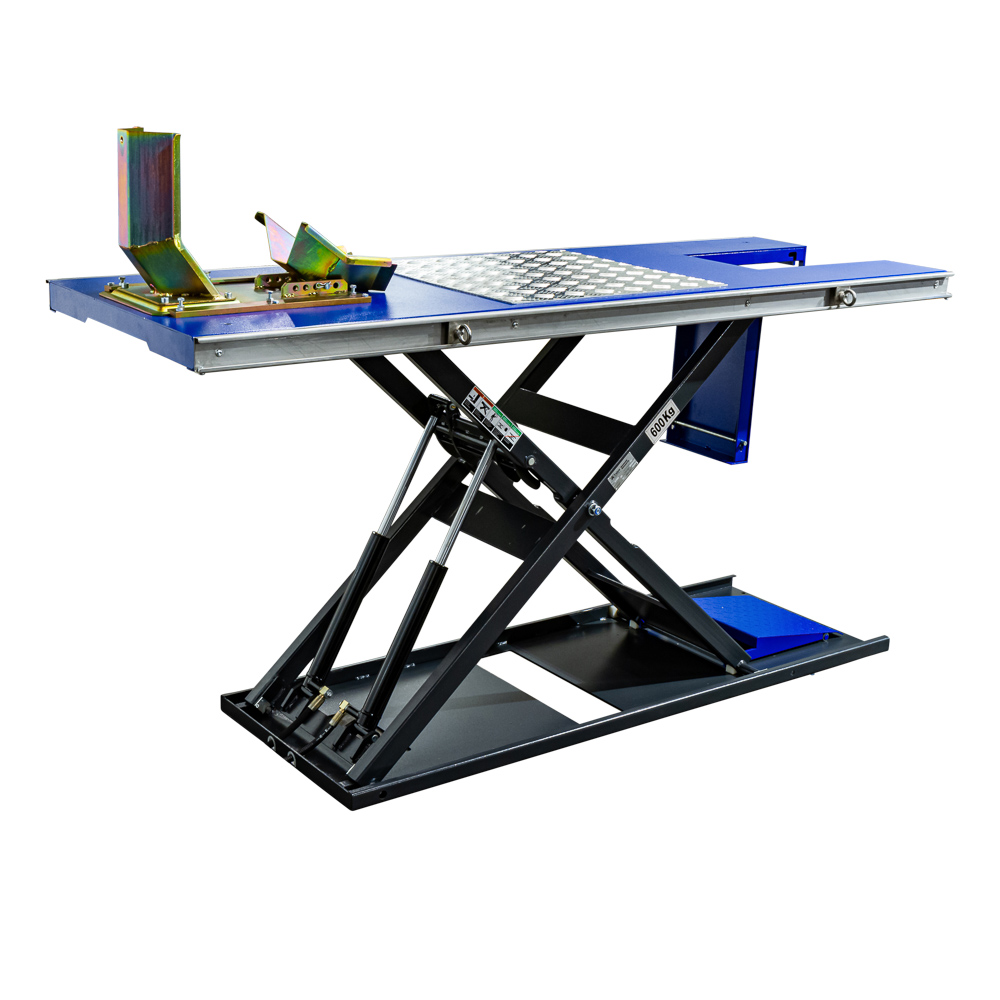

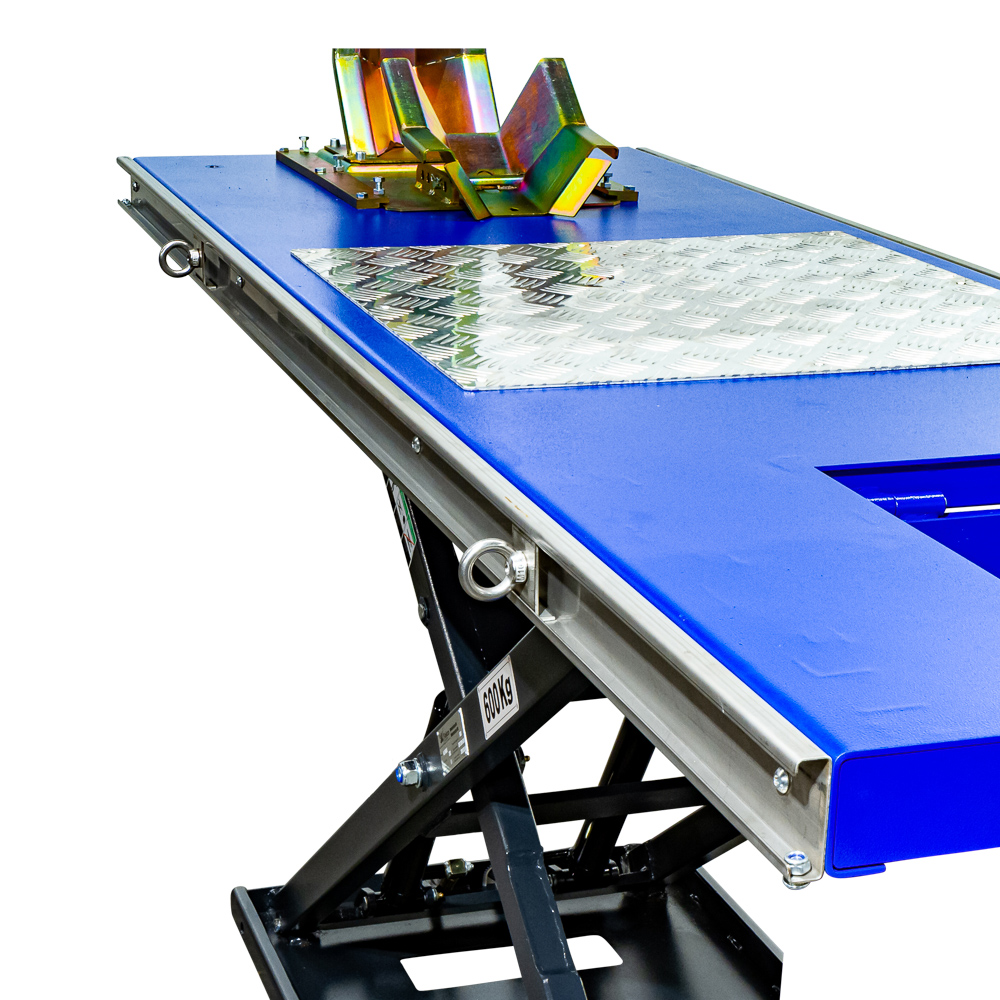

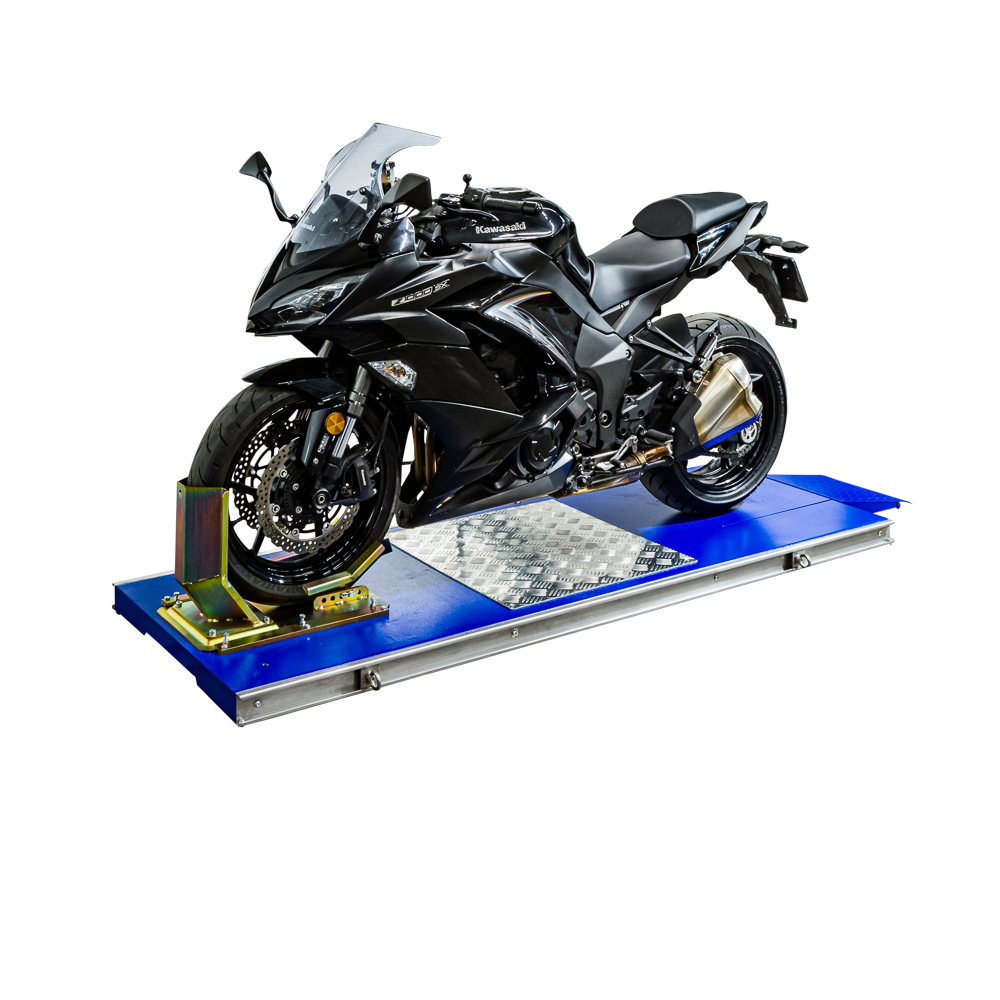

This Falco motorcycle lift table from the premium line is ideal for professional workshop use. The fully retractable ramp saves space, and the motorcycle is securely held in the automatically locking front wheel clamp. On both sides are stainless steel channels with sliding eye bolts to easily secure the motorcycle with tie-down straps.
-

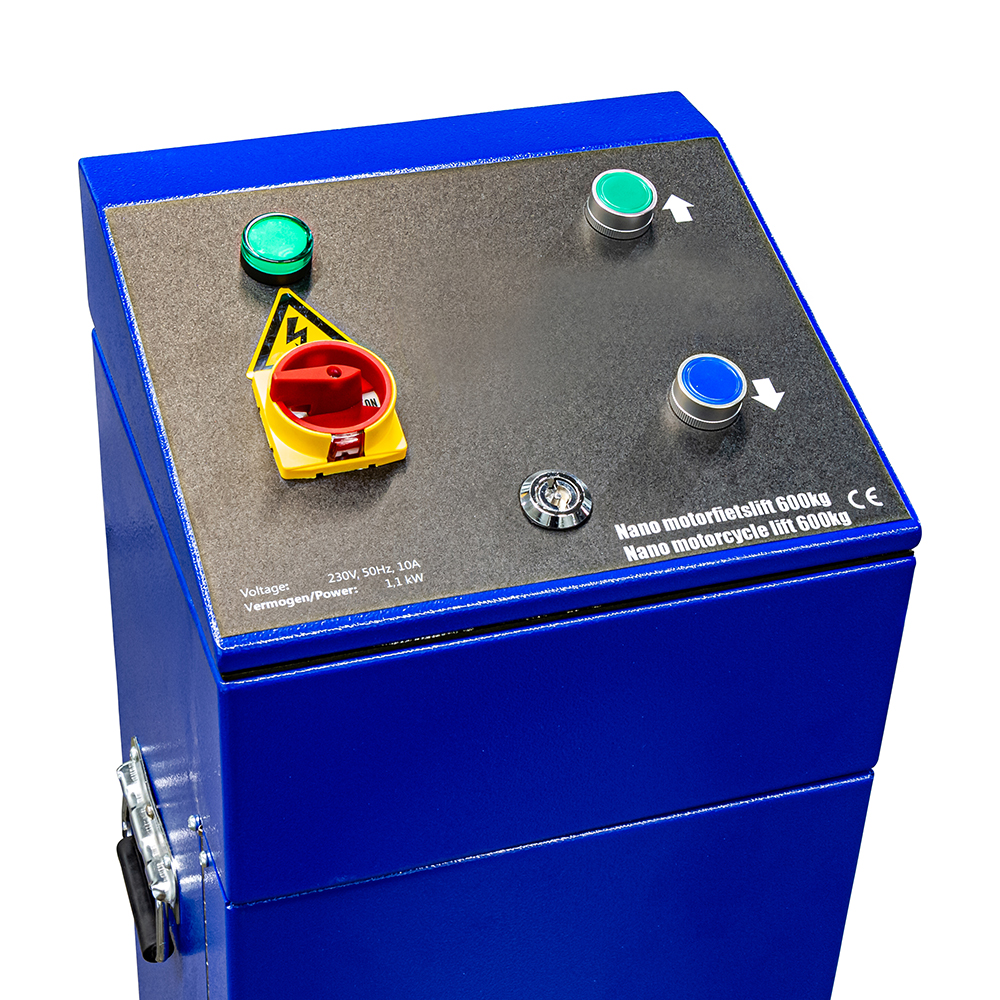

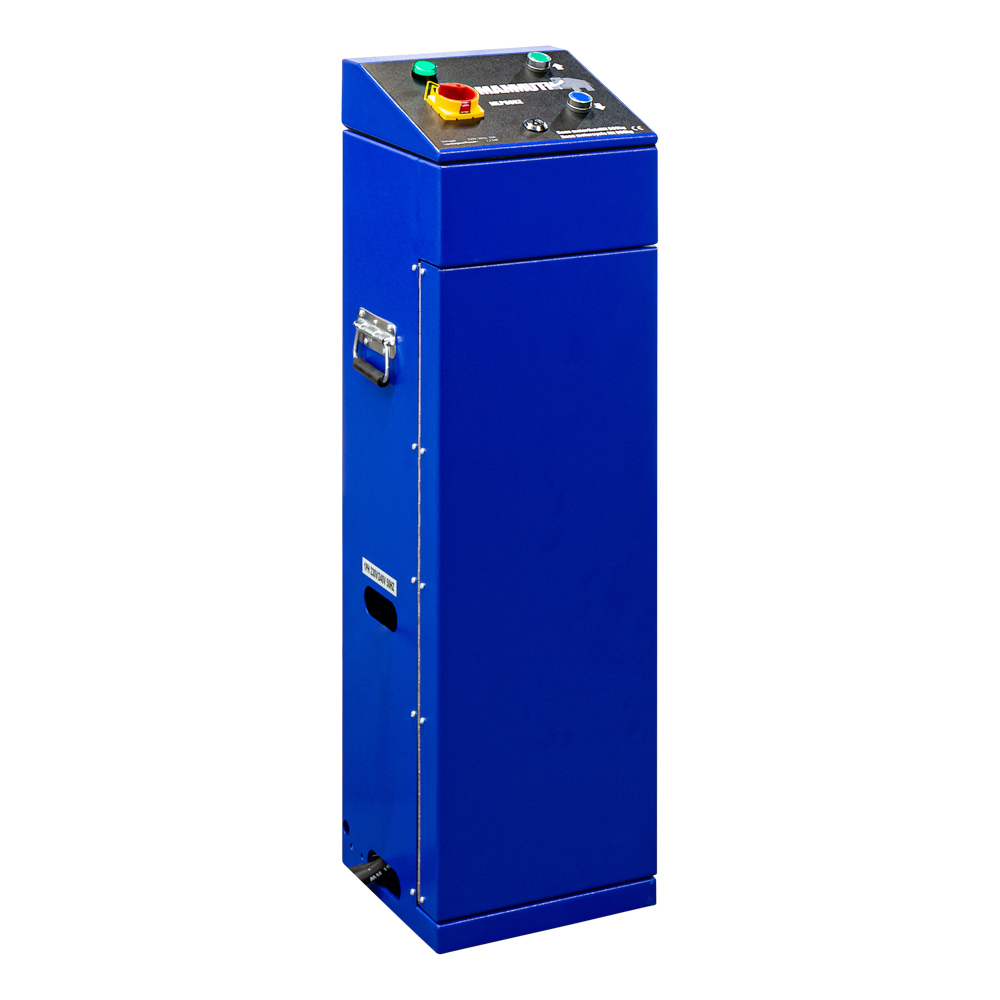

Extra low entry height: Thanks to the external control unit, the minimum ramp height is only 75 mm.
-
Electric operation: For quick and effortless lifting.
- Anti-slip checker plate: Provides extra grip.
-

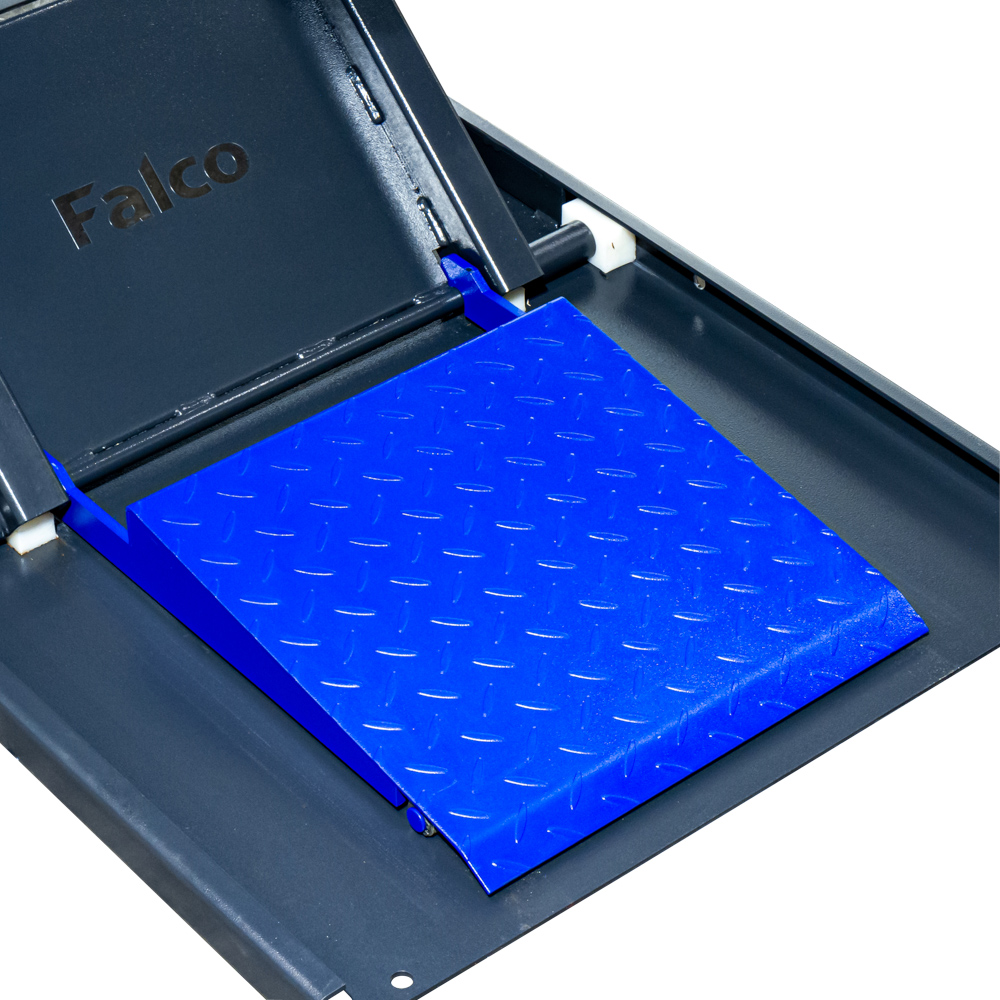

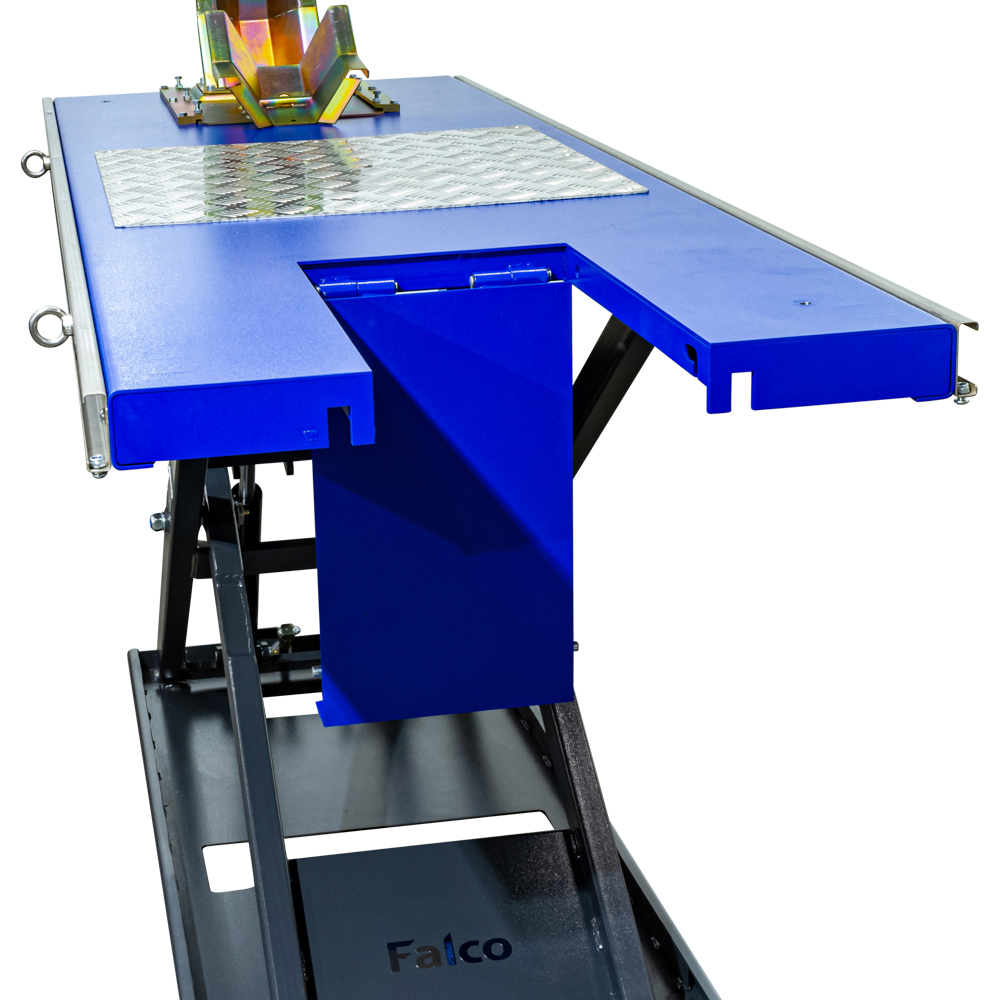

Fold-away rear plate: Allows easy access to the rear wheel.

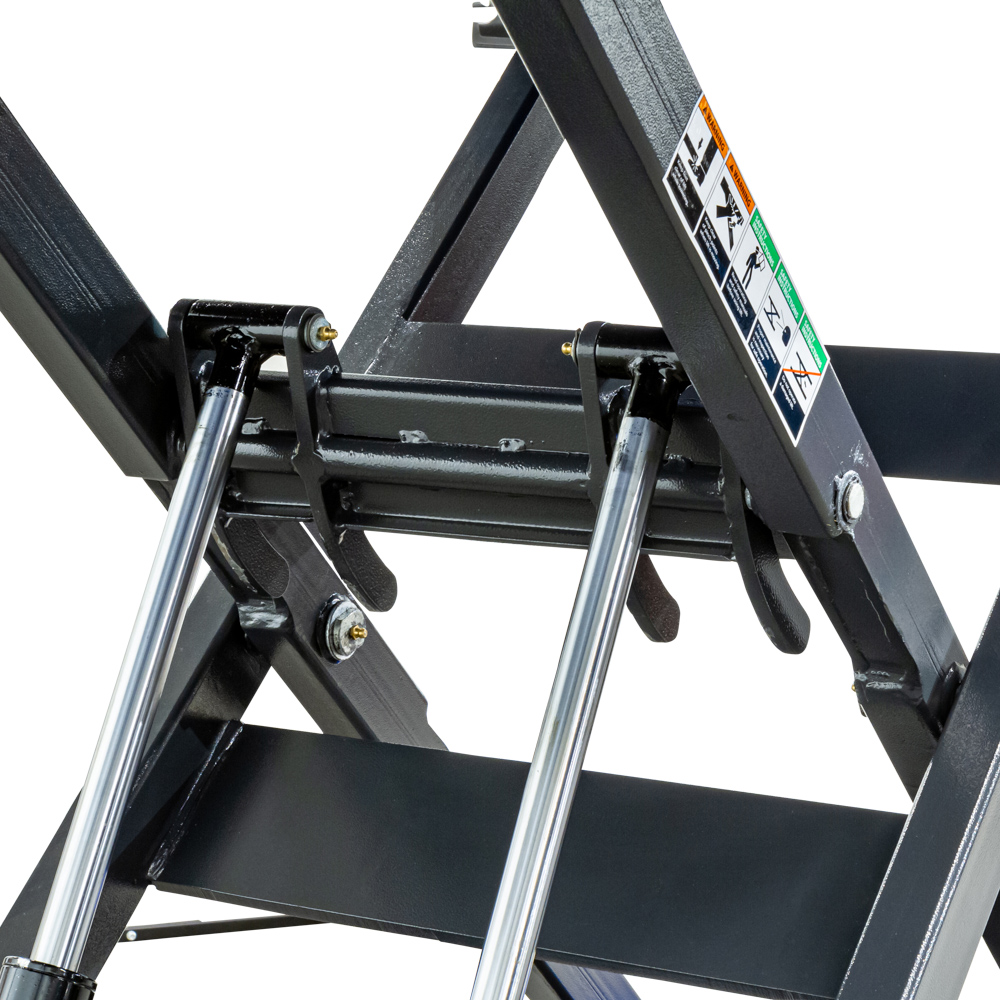

- Master-slave safety system: The dual cylinder system ensures the lift remains secure at any height and can be raised or lowered with a single action.

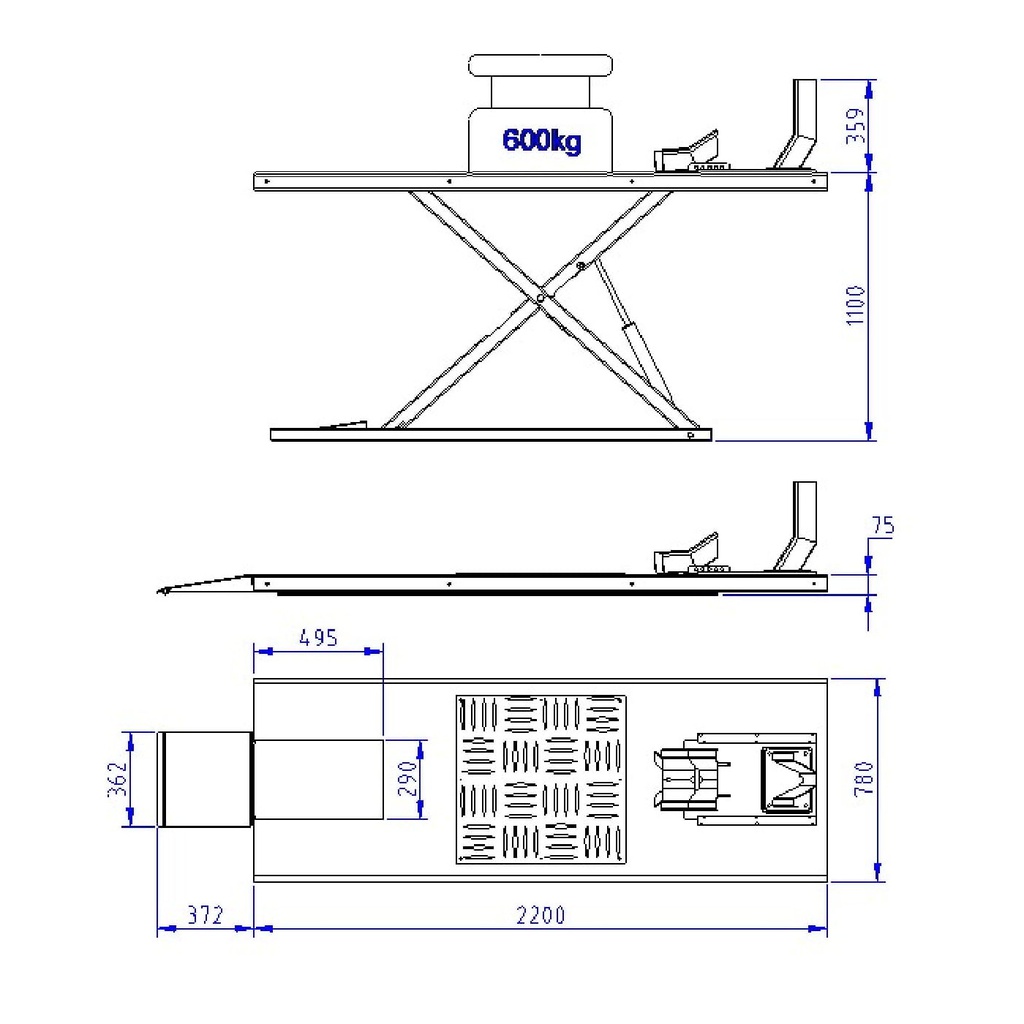

Technical specifications
- Material = Steel
- Lifting capacity = 600 kg
- Min. height = 75 mm
- Max. height = 1100 mm
- Platform length = 2200 mm
- Platform width = 780 mm
- Ramp length = 370 mm
- Ramp width = 362 mm
- Frame length = 1800 mm
- Frame width = 650 mm
- Front wheel clamp width = 75 - 160 mm
- Lifting time = 17 sec.
- Voltage = 230V
- Frequency = 50 Hz
- Motor capacity = 1.1 kW
- Sound level = 70 dB
- Oil capacity = 4 L
- Oil type = CH32
Dimensions and weights
- Weight =317.0Kg
- Product weight =276.0Kg
- Length =2290.0mm
- Width =840.0mm
- Height =465.0mm
- Product Length =2200.0mm
- Product Width =780.0mm
- Product Height =75.0mm
