Product Code: MPC10050
EAN: 8720028053353
PRODUCT DESCRIPTION

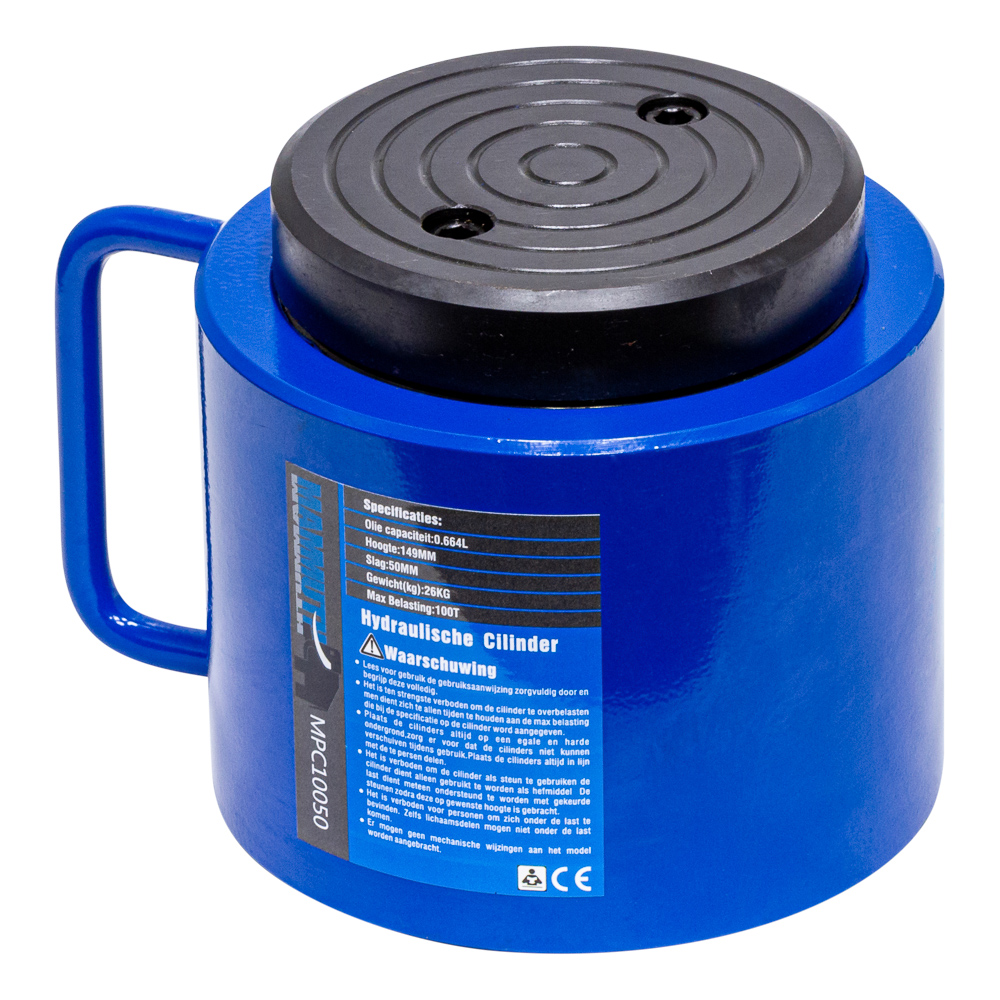

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 100 ton
stroke = 50mm
effective area = 132,7cm^2
oil capacity = 0,660 L
height of product = 162mm
extended height = 199mm
outside diameter = 177mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm
saddle is removable
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =27.0Kg
- Product weight =26.0Kg
- Length =300.0mm
- Width =195.0mm
- Height =210.0mm
- Product Length =245.0mm
- Product Width =175.0mm
- Product Height =160.0mm
