Product Code: MPC10100
EAN: 8720028076994
PRODUCT DESCRIPTION

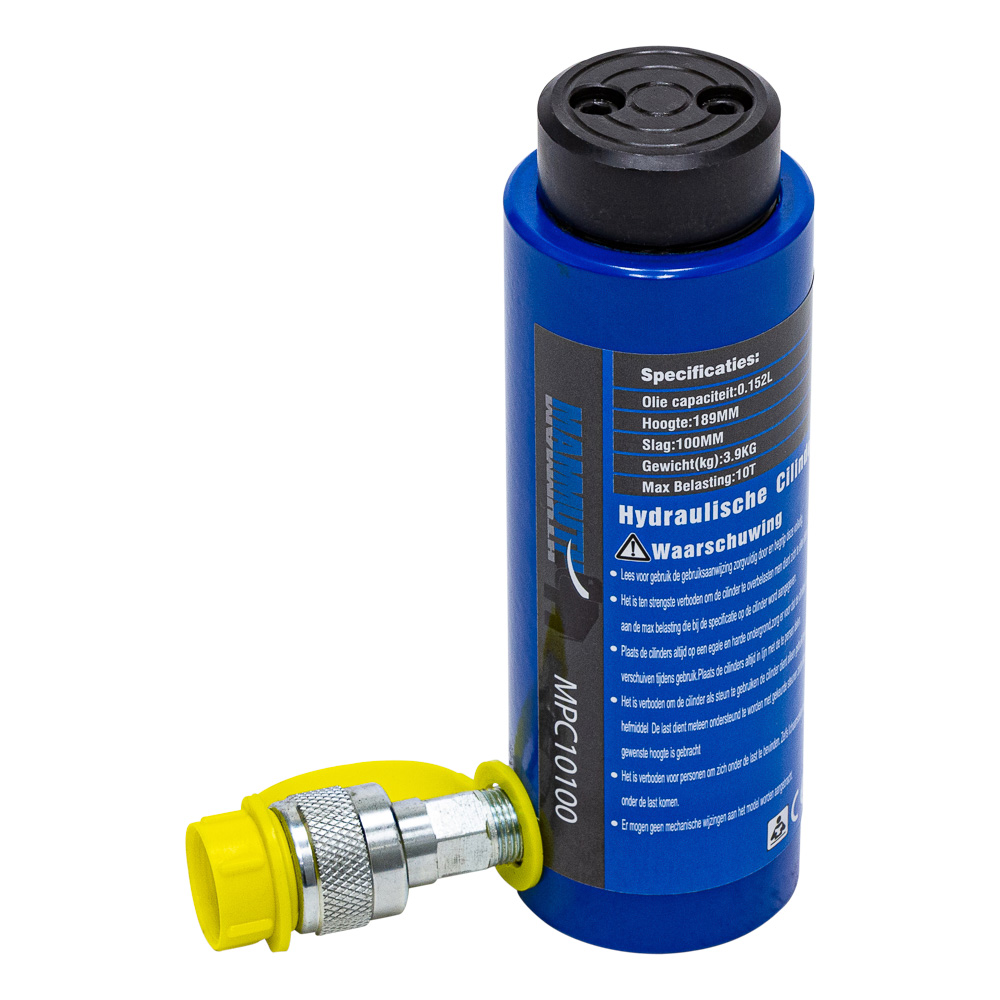

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 10 ton
stroke = 100mm
effective area = 15,2cm^2
oil capacity = 0,152 L
height of product = 191mm
extended height = 289mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =5.5Kg
- Product weight =3.9Kg
- Length =385.0mm
- Width =185.0mm
- Height =125.0mm
- Product Length =130.0mm
- Product Width =60.0mm
- Product Height =190.0mm
