Product Code: MPC20050
EAN: 8720028046799
PRODUCT DESCRIPTION

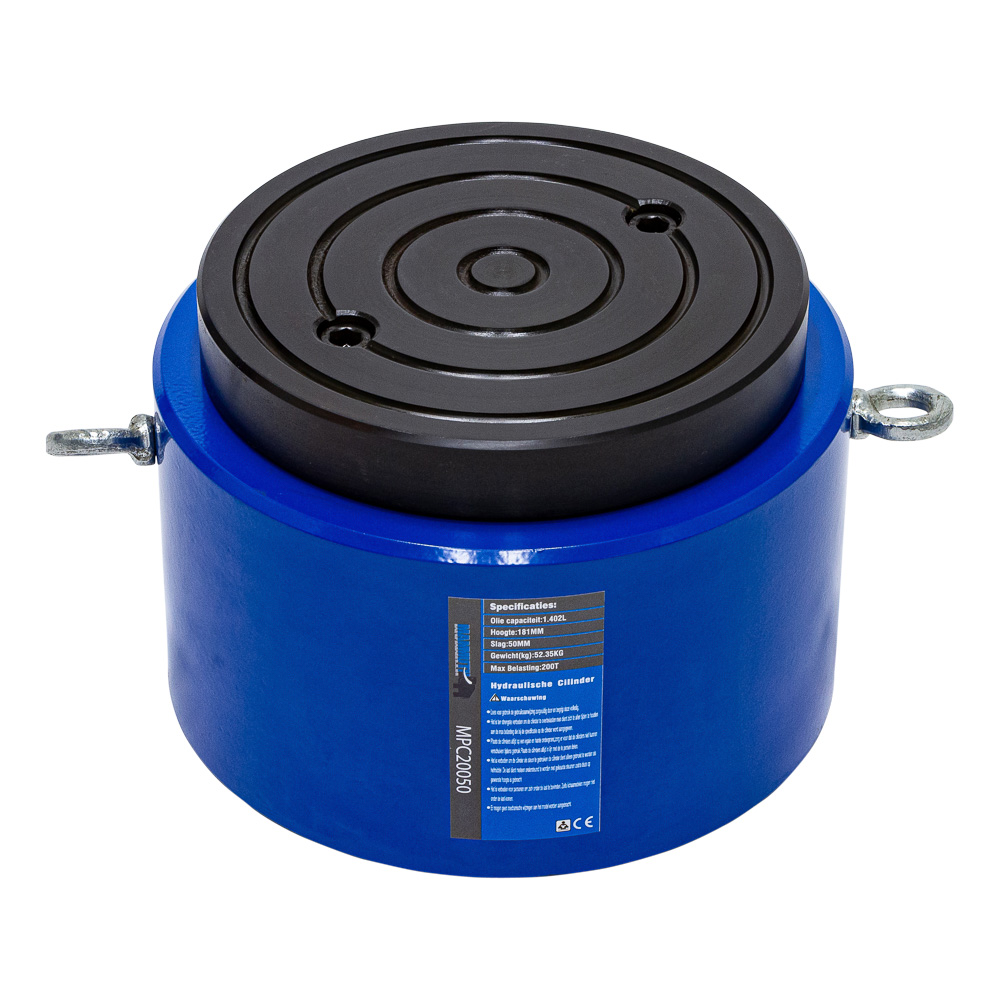

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
- output = 200 ton
- stroke = 50mm
- effective area = 280,4cm^2
- oil capacity = 1,402 L
- height of product = 171mm
- extended height = 231mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 25
- saddle protrusion form plgr = 31mm
- saddle is removable
- max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =52.0Kg
- Product weight =51.0Kg
- Length =335.0mm
- Width =370.0mm
- Height =210.0mm
- Product Length =300.0mm
- Product Width =230.0mm
- Product Height =175.0mm
