Product Code: MPC50150
EAN: 8720028076888
PRODUCT DESCRIPTION

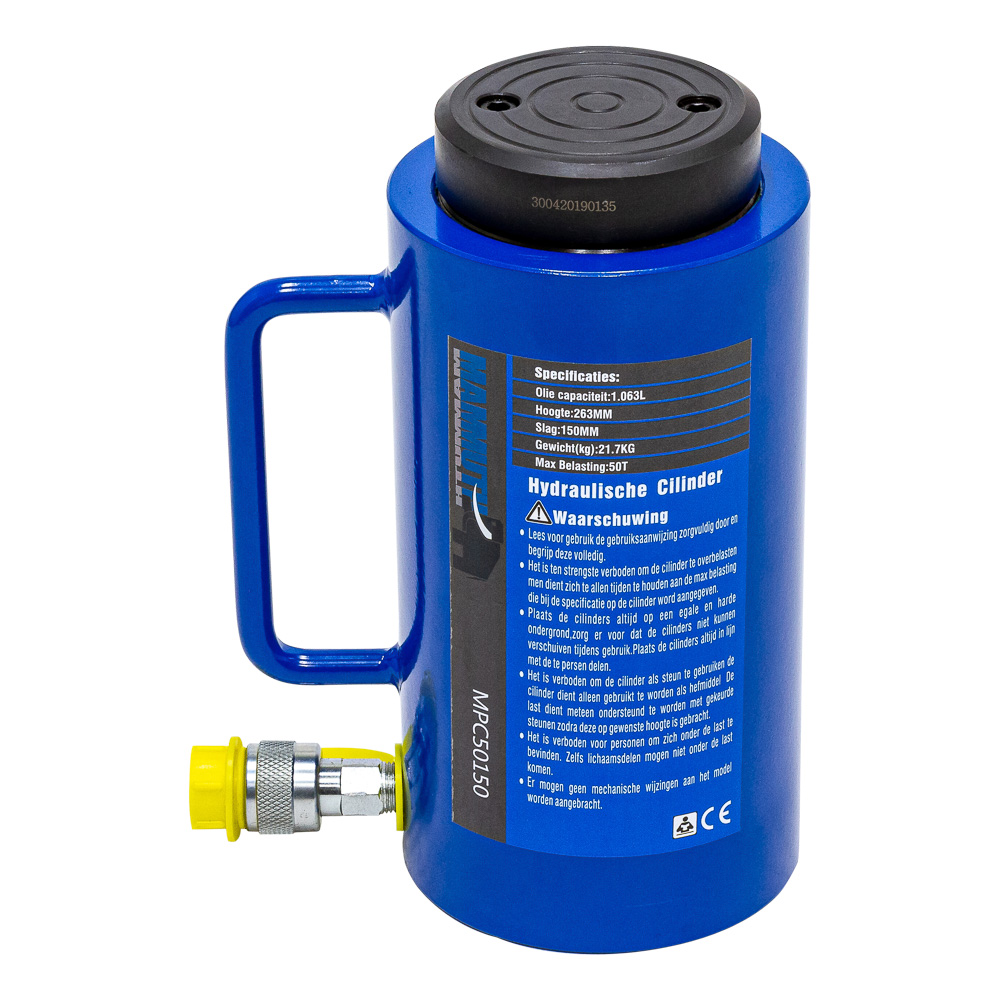

Hydraulic cylinder
Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.
output = 50 ton
stroke = 150mm
effective area = 70,9cm^2
oil capacity = 1,063 L
height of product = 262mm
extended height = 413mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
saddle is removable
max. pressure = 700bar
Technical specifications
Dimensions and weights
- Weight =23.0Kg
- Product weight =21.6Kg
- Length =385.0mm
- Width =185.0mm
- Height =210.0mm
- Product Length =190.0mm
- Product Width =120.0mm
- Product Height =265.0mm
