Copper spindle
Self centering
Can be clamped both horizontally and vertically
Product Code: MV1003D
EAN: 8720028096121
PRODUCT DESCRIPTION

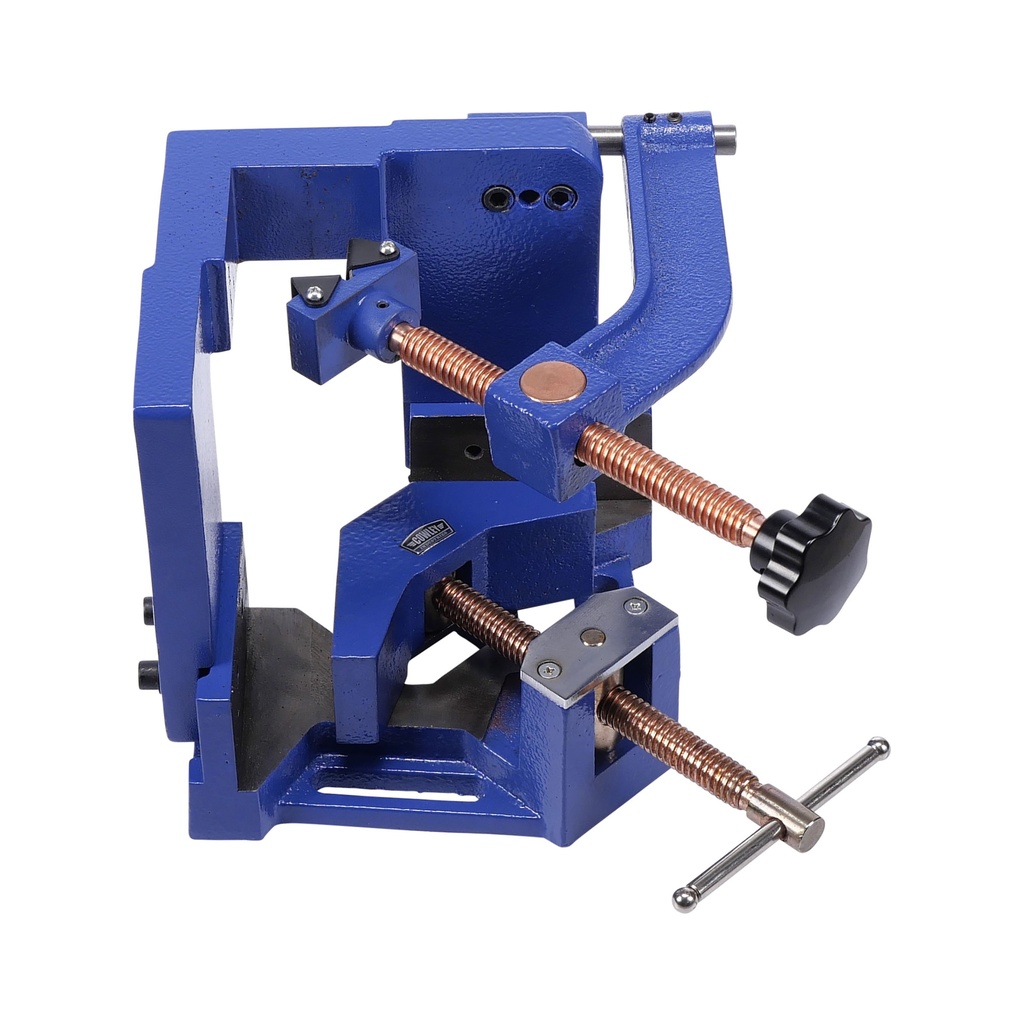

Angle clamp 3D / welding clamp
This angle clamp is suitable for holding, fixing and aligning in an exactly right angle. This makes it easy to weld at a 90 degree angle.
The 3D version ensures that objects can be clamped both horizontally and vertically.
Technical specifications:
min. clamping thickness = 30mm
max. clamping thickness = 100mm
distance between bottom of clamping bed to clamp = 160mm
distance from bottom of clamping bed to top of clamp = 220mm
Technical specifications
Dimensions and weights
- Weight =25.7Kg
- Product weight =25.0Kg
- Length =360.0mm
- Width =355.0mm
- Height =290.0mm
- Product Length =400.0mm
- Product Width =400.0mm
- Product Height =260.0mm
