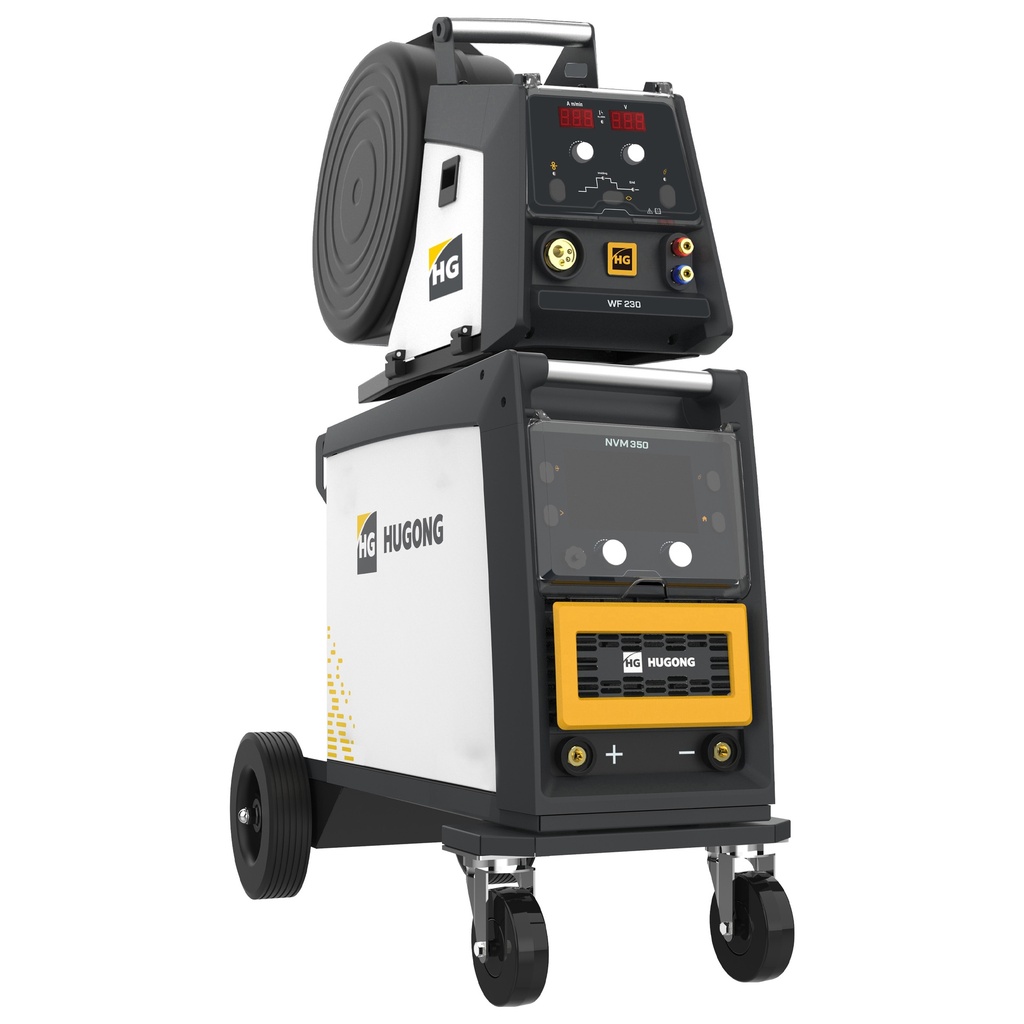

MIG welding machine Novi 350A
Product Code: NVM350
EAN: 8720028142828
PRODUCT DESCRIPTION
The Hugong NVM350 is a powerful industrial-grade MIG welding system from the NOVI series. This 3-in-1 machine supports MIG/MAG, MMA, and Lift-TIG welding and is equipped with a separate wire feeder. The NVM350 features synergic control, a full HDVision display, and is powered by a Cortex M4 processor for precise and reliable performance.
Built on high-frequency IGBT inverter technology (up to 160 kHz), the machine is ideal for long welding cycles in steel construction, shipbuilding, and heavy-duty production environments.
The NVM350 is designed as a complete welding tower with a robust base and built-in platform for a 50-liter gas cylinder—making it a highly mobile and professional workshop solution.
The separate wire feeder features a powerful 4-roll drive system that provides consistent, slip-free wire feeding - even with thicker wires or longer torches.
- Separate 4-roll wire feeder
Maximum mobility and reach - perfect for large-scale or remote welding setups.
- HDVision display with synergic control
Intuitive digital interface with automatic parameter settings.
- Shock-resistant ABS housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- MIG torch MLT36M4 – 4 meters
- Ground clamp with 3-meter cable (35 mm²)
- Wirefeed connection set 5m
- 7m gas hose with NW5 coupling
- Wire feed rollers 0.8/1.0V, 1.0/1.2V
- Contact tips 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
Technical specifications
- Frequency = 50/60 Hz
- Voltage = 400V - 3 Phase
- No load voltage = 76V
- Rated input current = 25A
- Duty cycle @40C = 60% - 350A
- Welding current range = MIG 30 - 350A / MMA 25 - 350A / TIG 15 - 350A
- Weldable welding wire = MIG wire 0.8 - 1.2 mm / Flux core wire 0.8 - 0.9 mm
Dimensions and weights
- Weight =133.0Kg
- Product weight =80.0Kg
- Length =1150.0mm
- Width =600.0mm
- Height =1370.0mm
- Product Length =1070.0mm
- Product Width =440.0mm
- Product Height =1100.0mm
