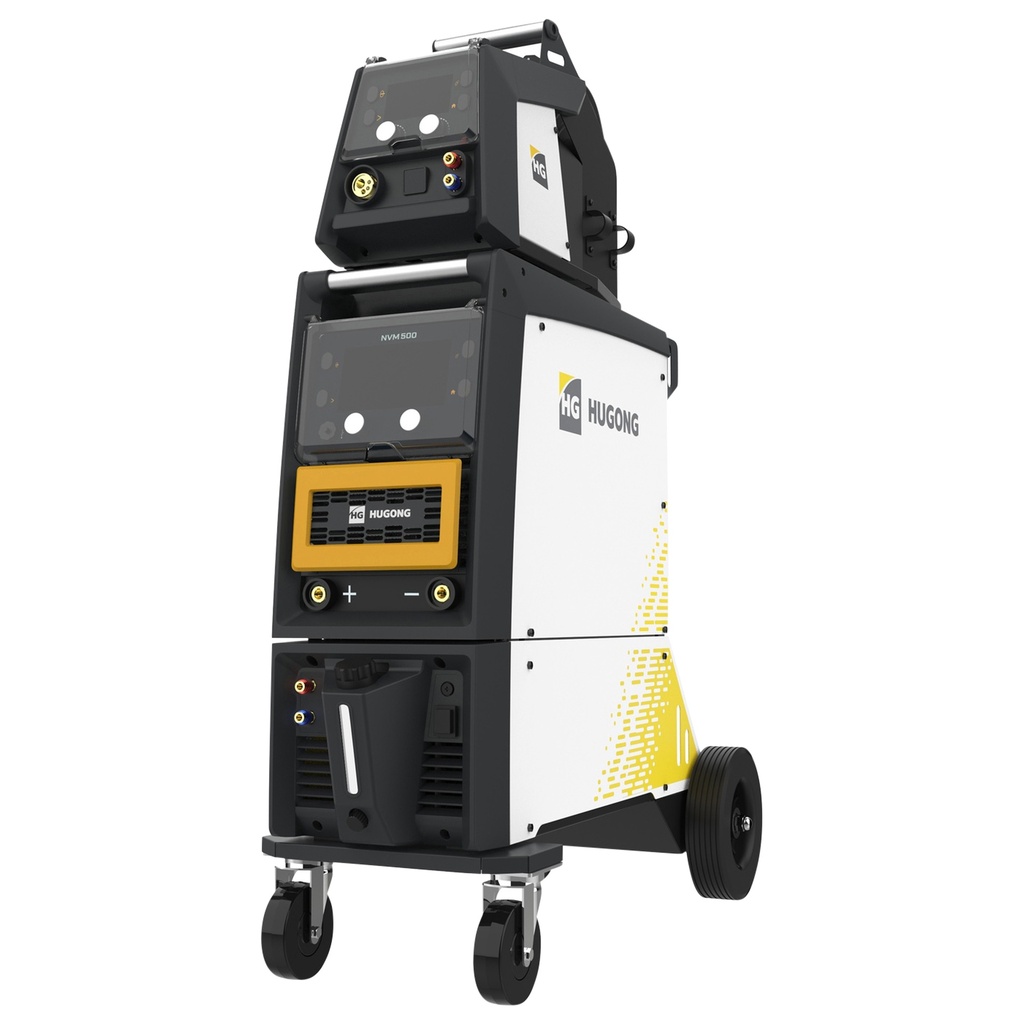

MIG welding machine Novi 500A
Product Code: NVM500
EAN: 8720028142835
PRODUCT DESCRIPTION
The Hugong NVM500 is an extremely powerful 3-in-1 industrial welding system from the NOVI series. This digital inverter welder supports MIG/MAG, MMA, and Lift-TIG welding, and is equipped with water cooling, a separate wire feeder, and a complete interconnection package.
Built on the NOVI platform, the NVM500 features advanced IGBT inverter technology with high switching frequency, a Cortex M4 processor for precise control, a full HDVision interface, and synergic operation for automatic parameter adjustment - even when welding with thick wire and at high duty cycles.
Equipped with a sturdy wheeled base and an integrated platform for a 50-liter gas cylinder, this welding tower is highly complete and ideal for mobile workshop use.
The external wire feeder includes a powerful 4-roll drive system that ensures consistent, slip-free wire feeding—even when using thicker wire or longer MIG torches.
Key features:
- High-performance 3-in-1 welding system (MIG/MAG, MMA, Lift-TIG)
Engineered for continuous operation under demanding industrial conditions.
- Equipped with water cooling
Reliable thermal management during intensive welding - essential for continuous operation.
- HDVision display with synergic control
Intuitive digital interface with automatic parameter settings.
- Shock-resistant ABS housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- MIG torch MLT50M4 – 4 meters
- Ground clamp with 3-meter cable (50 mm²)
- Interconnection package 10m
- 12m Ø8 mm gas hose with NW5 coupling
- 2× 5m water cooling hose
- Wire feed rollers: 0.8/1.0V, 1.2/1.6V
- Contact tips: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
Technical specifications
- Frequency = 50/60 Hz
- Voltage = 400V - 3 Phase
- No load voltage = 78V
- Rated input current = 38A
- Duty cycle @20C = 60% - 500A
- Duty cycle @40C = 60% - 500A
- Weldable welding wire = MIG wire 1.0 - 1.6 mm / Flux core wire 0.8 - 1.6
- Welding current range = MIG 30 - 500A / MMA 25 - 500A / TIG 15 - 500A
Dimensions and weights
- Weight =156.0Kg
- Product weight =80.0Kg
- Length =1150.0mm
- Width =590.0mm
- Height =1620.0mm
- Product Length =1150.0mm
- Product Width =460.0mm
- Product Height =1340.0mm
