PRODUCT DESCRIPTION

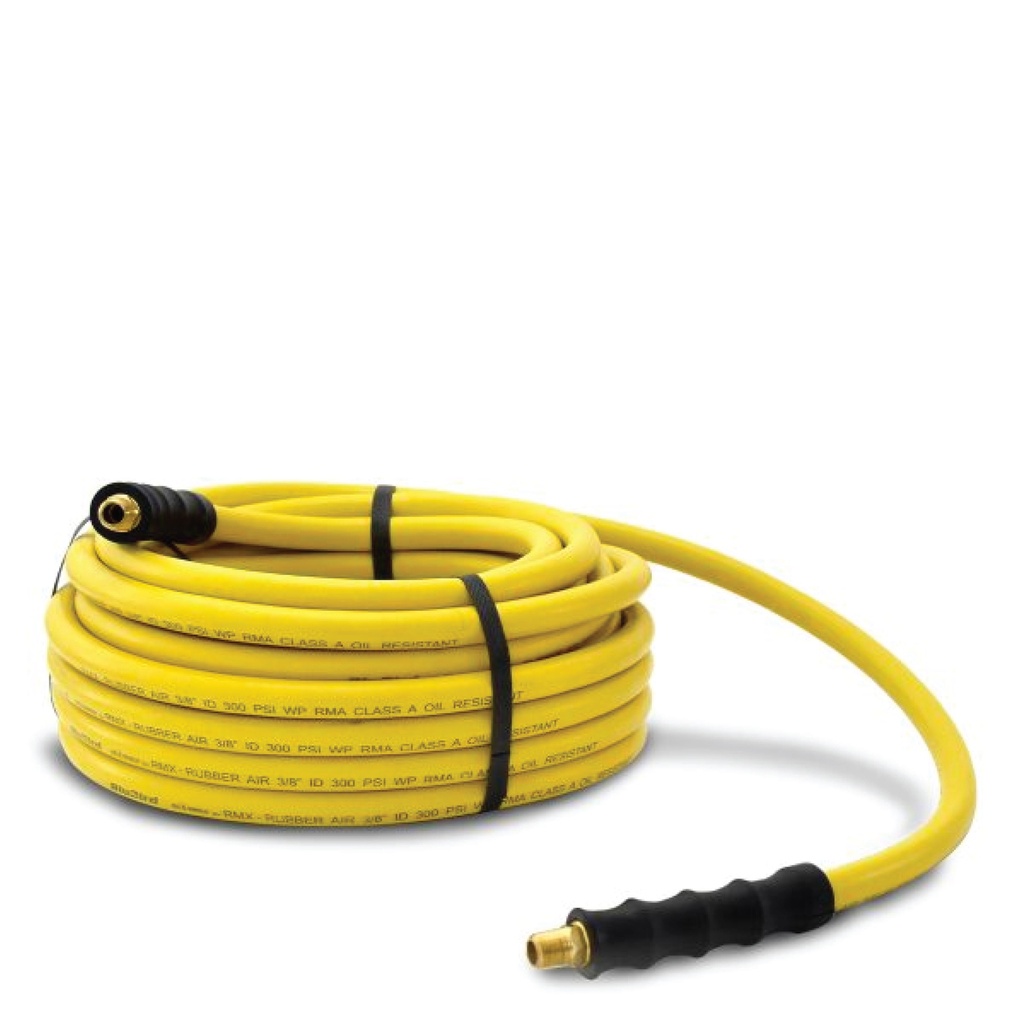

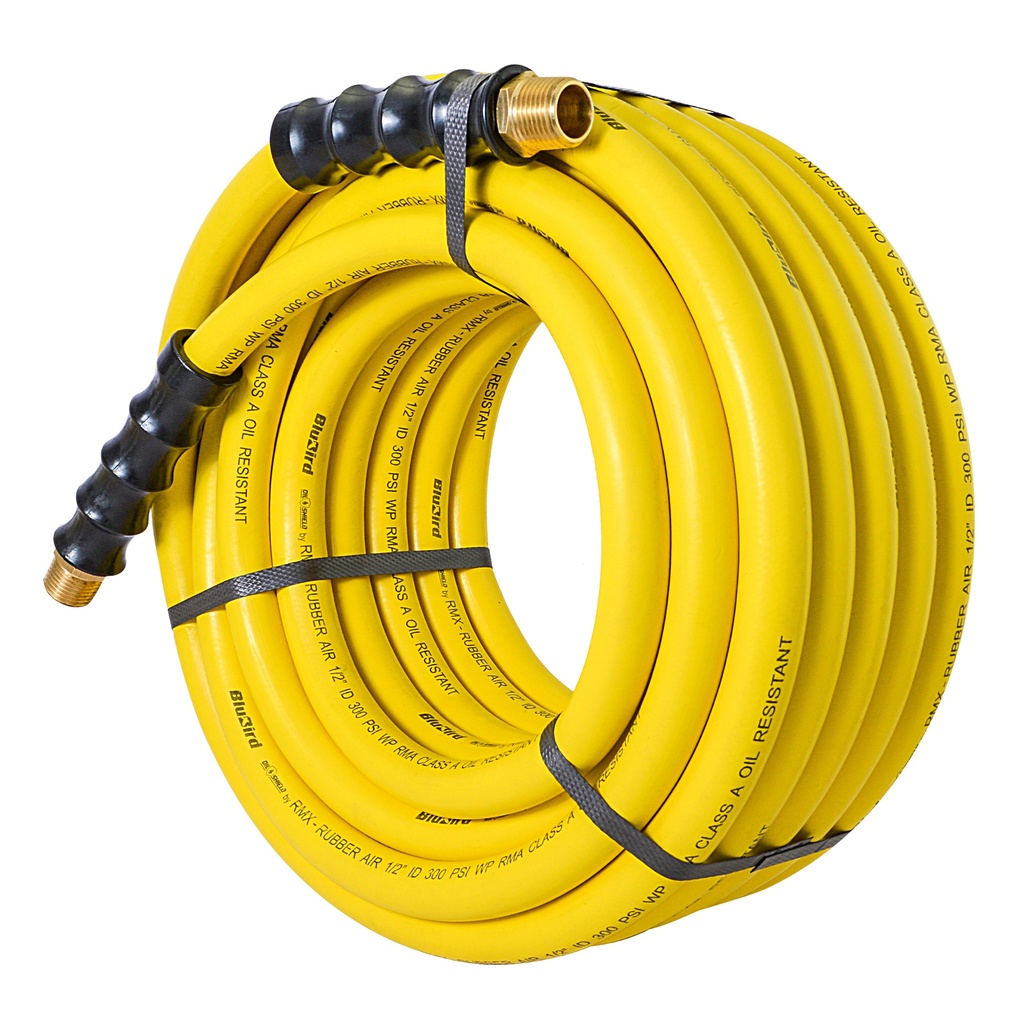

The 13mm OilShield air hose designed to excel in Technical environments, it boasts an impressive RMA Class-A oil resistance rating, featuring a nitrile core and nitrile cover for unparalleled protection against oils, diesel fuel, gas, cleaning agents, welding spatters, and grinding sparks. Unlike conventional rubber hoses, OilShield takes the lead with its lightweight construction, being 30% lighter, while retaining superior flexibility and strength. It's the go-to shop hose for professionals seeking a reliable and efficient solution.
Features:
- RMA Class-A oil resistant core tube and cover
- Welding spatter and grinding sparks resistance
- 30% lighter than standard rubber hoses
- Superior solid brass fittings
- High-strength polyester woven braided reinforcement
- 20 Bar working pressure
- 4:1 safety factor
- Maintains integrity under extreme weather conditions
- Flexibility from -34°C to 87°C
- Ozone resistant, abrasion resistant, and kink resistant

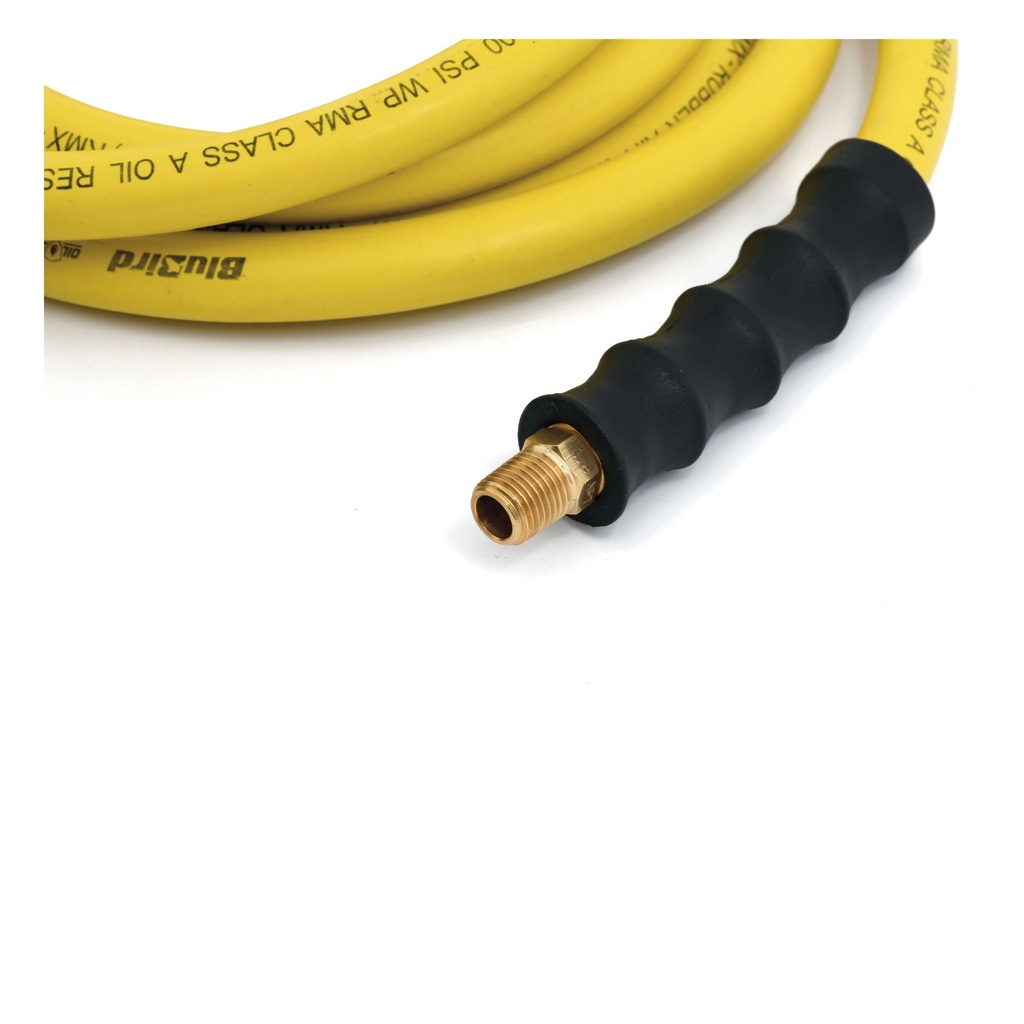

- Finger grip bend restrictor for better use & easier control over the hose
Technical specifications
- Inner hose diameter = 13 mm
- Fittings = 1/2" M-BSP external thread
- Burst pressure min. = 82 Bar
- Temperature range = -34°C to +87°C
- Working pressure max. = 20 Bar
- Safety factor = 4:1
- Braiding = Polyester
- Material = Rubber
- Hose length = 20 m
Dimensions and weights
- Weight =4.8Kg
- Product weight =4.8Kg
- Length =140.0mm
- Width =340.0mm
- Height =310.0mm
- Product Length =2000.0mm
- Product Width =20.0mm
- Product Height =20.0mm
