- Versatile fluid control
- Durable IP65 protection
- Zero pressure operation
- Customizable coil options
- Wide voltage tolerance
Product Code: P14SV220
EAN: 8720028137886
PRODUCT DESCRIPTION

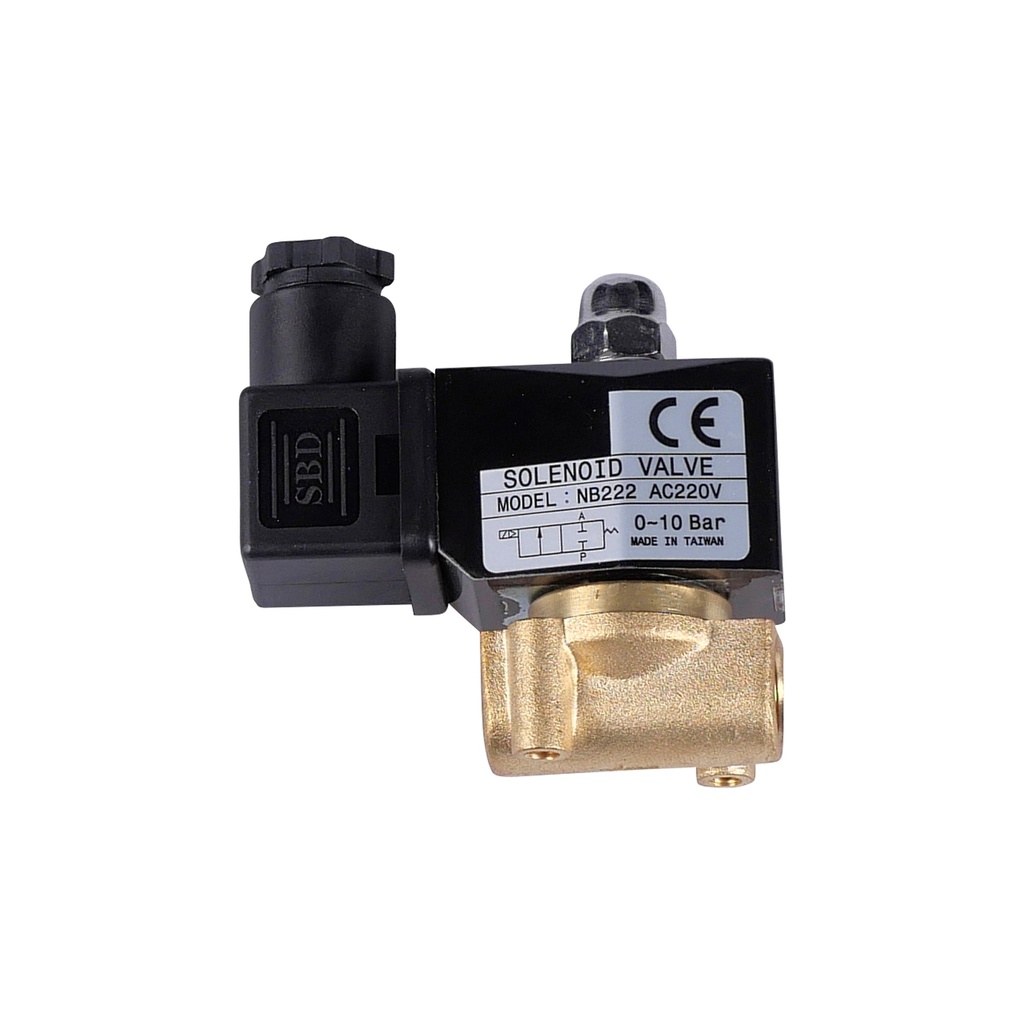

The 2-way solenoid valve from AirPro offers versatile control for liquids and gases, including water, air, and light oils. Its durable brass body, ensures reliability and long-lasting performance. Ideal for applications requiring precision and durability, the valve supports a pressure range of 0–10 Bar and a liquid temperature range of -5°C to 80°C.
-
Can be used as a switch for both air, water and oil.
- With IP65 protection, our product offers complete dust-tight sealing and resistance to water sprays, ensuring reliable performance in harsh environments.
- The normally closed valve operates with zero pressure and opens seamlessly when powered
- Customizable coil options allows for tailored functionality based on system requirements.
- Operates reliably within a ±10% voltage tolerance, ensuring flexibility and durability in diverse applications.
Technical specifications
- Material = Brass
- Voltage = 220V (AC)
- Voltage drop range = ±10%
- Air connection = 1/4"
- Thread type = BSP
- Orifice = 2.5 mm
- Ambient temperature = -5~80°C
- Pressure range = 0 ~ 10 Bar
- Working pressure max. = 15 Bar
- Kv value = 0,20
- Viscosity (medium) = under 20 cst
Dimensions and weights
- Weight =0.35Kg
- Product weight =0.33Kg
- Length =93.0mm
- Width =70.0mm
- Height =70.0mm
- Product Length =76.0mm
- Product Width =33.0mm
- Product Height =78.0mm
