Product Code: PK01A
EAN: 8720028106394
PRODUCT DESCRIPTION
jacking beam / hydraulic pit jack / hydropneumatic jack pit short

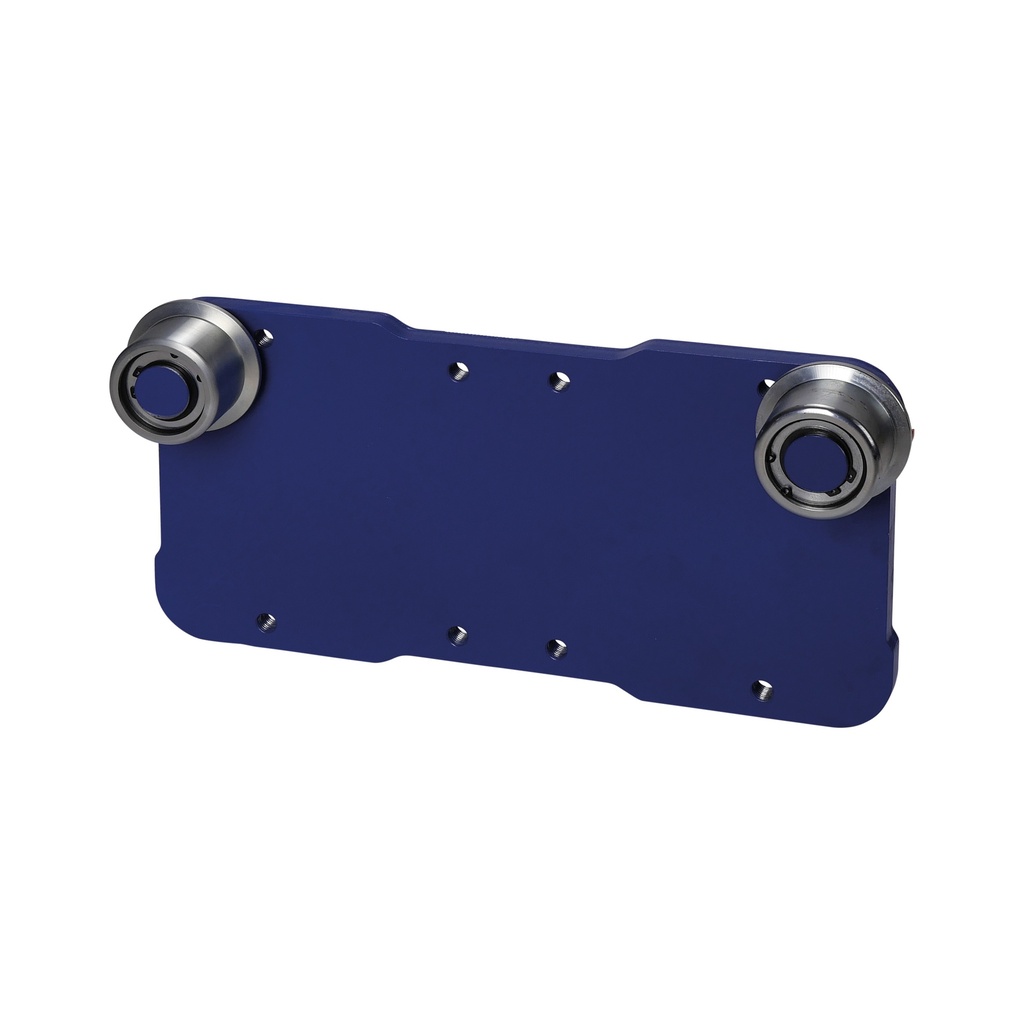

This short plate with cylindrical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have straight rail profile.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.
Technical specifications
- Wheel diameter = 80 mm
- Adapter type = short plate
- Plate height = 263 mm
- Plate width = 520 mm
- Rails type = cylindrical
- Wheel width max. = 45 mm
Dimensions and weights
- Weight =58.0Kg
- Product weight =48.0Kg
- Length =345.0mm
- Width =595.0mm
- Height =355.0mm
- Product Length =270.0mm
- Product Width =530.0mm
- Product Height =90.0mm
