Product Code: PK04A
EAN: 8720028106424
PRODUCT DESCRIPTION
jacking beam / hydraulic pit jack / hydropneumatic jack pit short

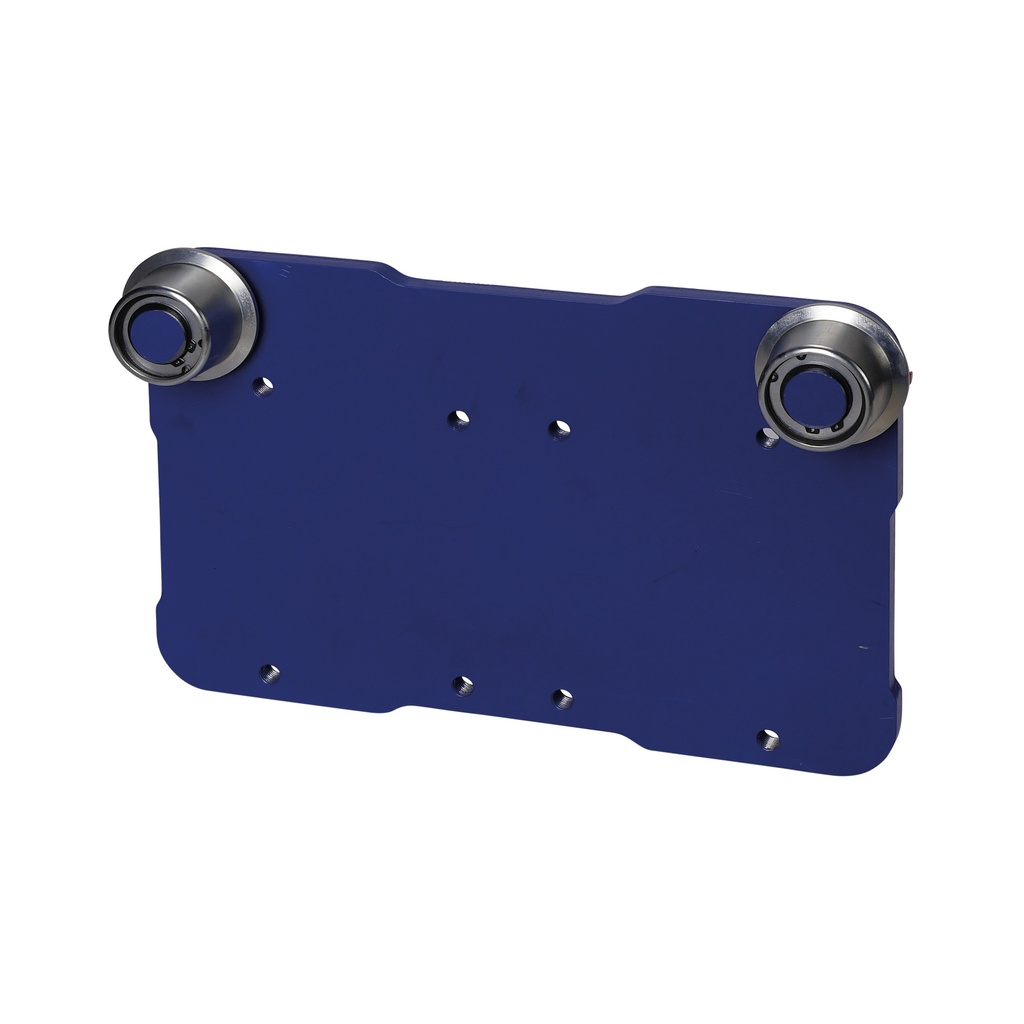

This long plate with conical wheels for pit jack from Falco Sollevatori can be adapted to entry platforms and manhole shapes which have conical rail type.
See the datasheet of the pit jacks for more information.
! Set adapter plates contain 2pcs.
Technical specifications
- Wheel diameter = 80 mm
- Adapter type = long plate
- Plate height = 338 mm
- Plate width = 520 mm
- Rails type = conical
- Wheel width max. = 45 mm
- Conical roller angle = 8.6°
Dimensions and weights
- Weight =70.0Kg
- Product weight =60.0Kg
- Length =420.0mm
- Width =595.0mm
- Height =360.0mm
- Product Length =340.0mm
- Product Width =540.0mm
- Product Height =90.0mm
