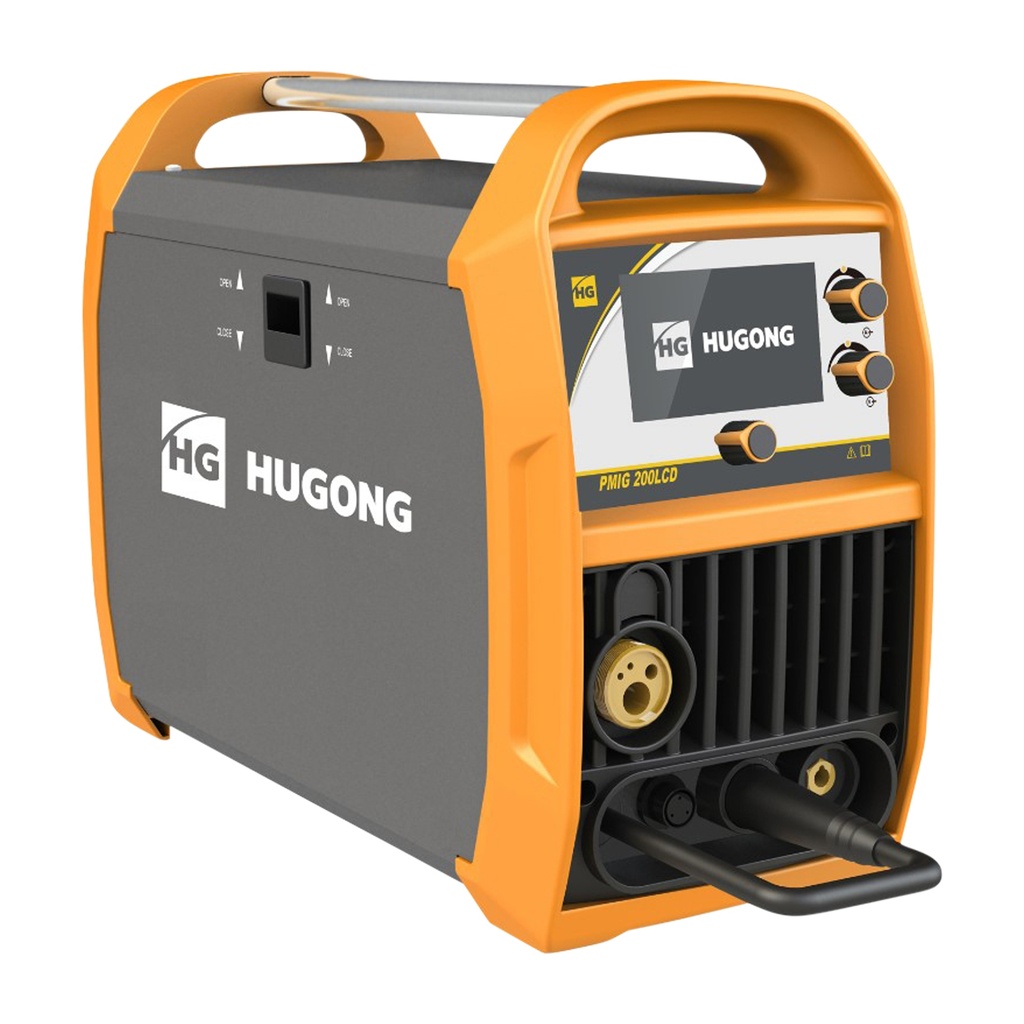

MIG welding machine LCD Pulse 200A
Product Code: PMIG200LCDIII
EAN: 8720028145584
PRODUCT DESCRIPTION
The Hugong PMIG200LCD is an advanced synergic MIG inverter welder with pulse and double pulse functionality. This 4-in-1 machine supports MIG/MAG, MMA (stick), Lift-TIG, and Pulse MIG welding, combining precise digital control with powerful performance. Its compact design and wide range of settings make it suitable for use both in the workshop and on-site.
The PMIG200LCD offers both manual and synergic control, giving you the choice between automatic parameter adjustment and full manual control. It welds effortlessly on steel, stainless steel, aluminium, and flux-cored wire - ideal for a wide range of applications, including stainless and aluminium work.
- Pulse & Double Pulse MIG
Accurate control of heat input and weld speed, ideal for stainless steel and aluminium.
- LCD interface with synergic control
Clear display with the option for automatic or fully manual parameter adjustment.
- 4-in-1 welding process: MIG (with pulse), MMA, Lift-TIG, and spot welding
Versatile for different environments with multiple welding modes in one machine.
- Shock-resistant ABS housing
The ABS housing provides protection against impacts, dust, and light moisture.
- 5-year warranty upon registration
Long-term security thanks to extended factory warranty after online registration.
Supplied with:
- MIG torch EP1500 – 3 meters, with 1.0 – 1.2 mm Teflon wire liner
- Ground clamp with 3-meter cable 16 mm²
- 4-meter hose with NW5 quick connector
- Wire feed rollers: 0.8/1.0V, 1.0/1.2V, 0.8/1.0U, 1.0/1.2U
- Contact tips: 0.8 mm, 1.0 mm, 1.2 mm; 0.8A, 1.2A
Technical specifications
- Frequency = 50/60 Hz
- Voltage = 220V - 1 Phase
- No load voltage = 68V
- Input power = 8.36kVA
- Rated input current = 38A
- Duty cycle @40C = 20% - 200A
- Welding current range = MIG 30 - 200A / MMA 25 - 200A
- Weldable welding wire = 0.8 / 1.0 / 1.2 mm
- Isolation class = IP21S
Dimensions and weights
- Weight =15.7Kg
- Product weight =11.0Kg
- Length =555.0mm
- Width =305.0mm
- Height =420.0mm
- Product Length =490.0mm
- Product Width =190.0mm
- Product Height =335.0mm
