PRODUCT DESCRIPTION
straddle leg manual stacker / hydraulic stacker / manual stacker with straddle legs

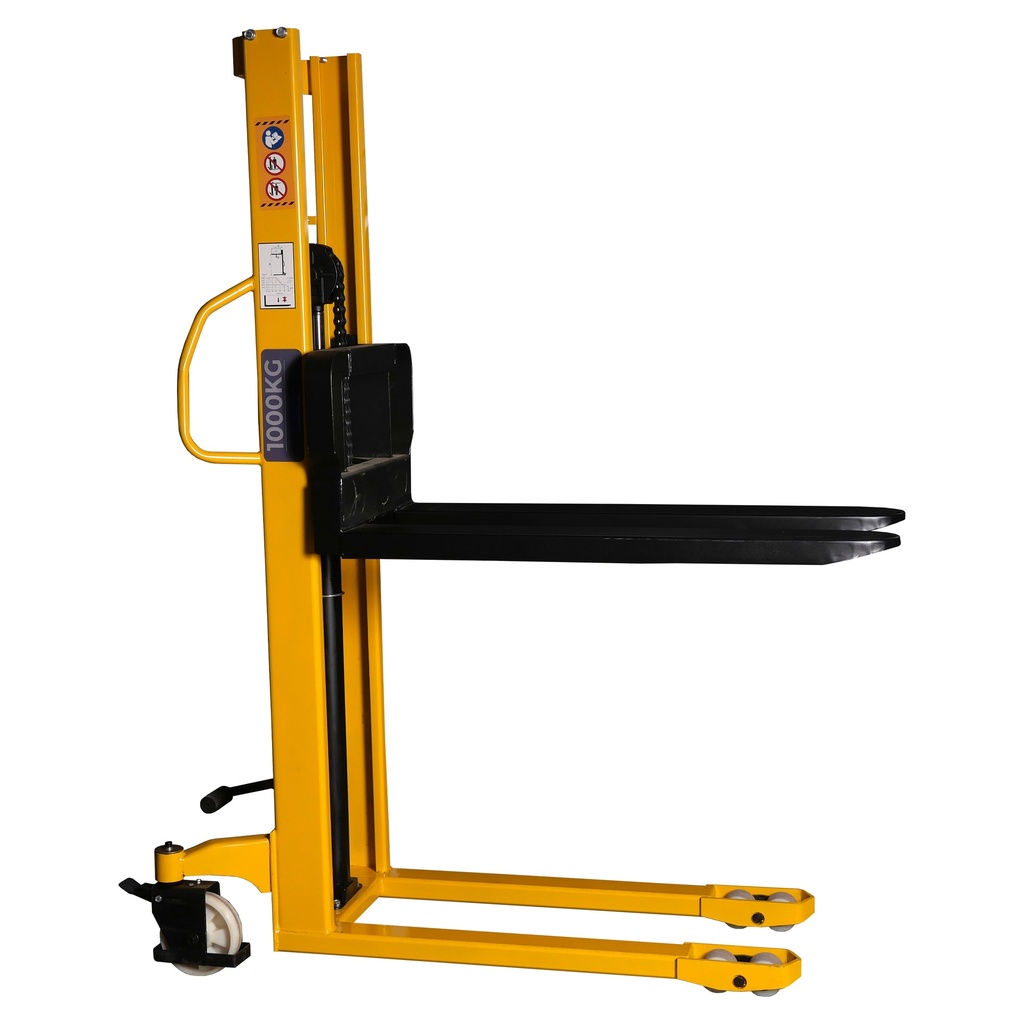

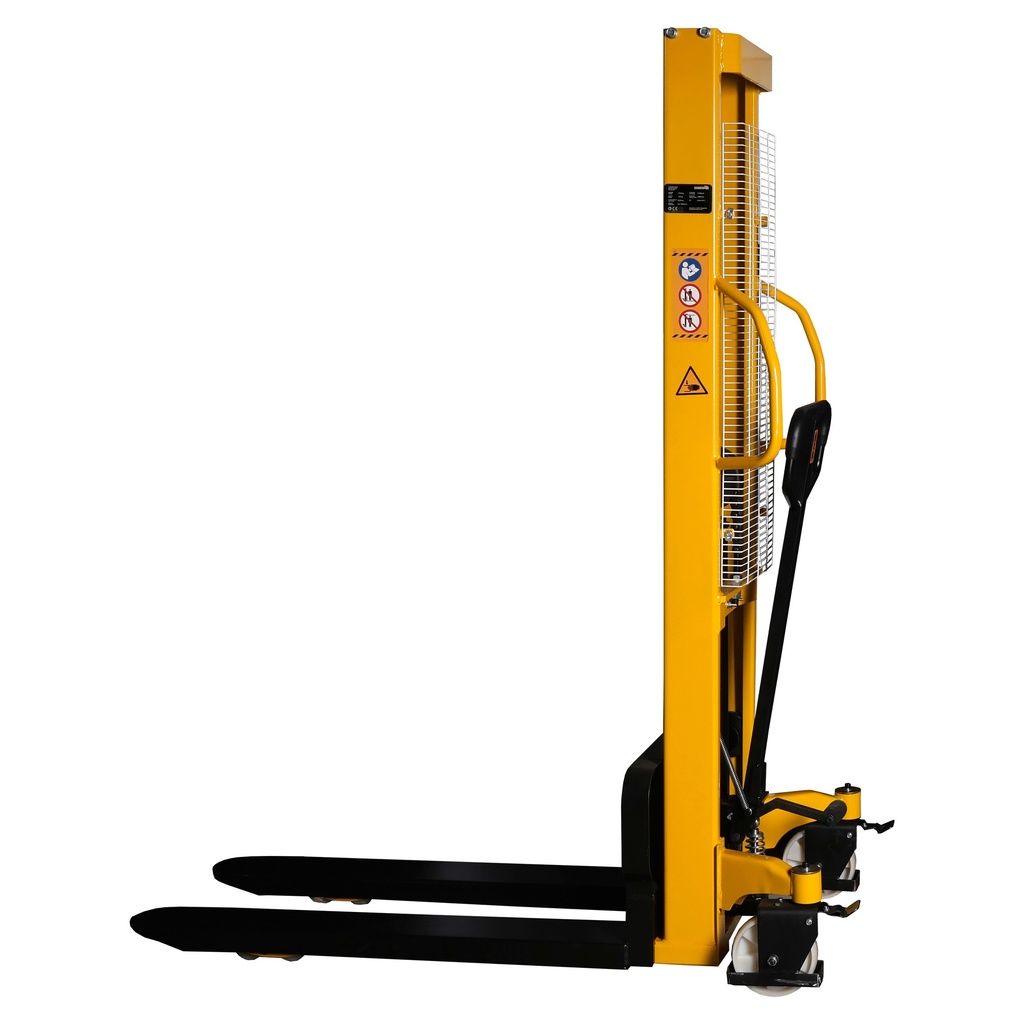

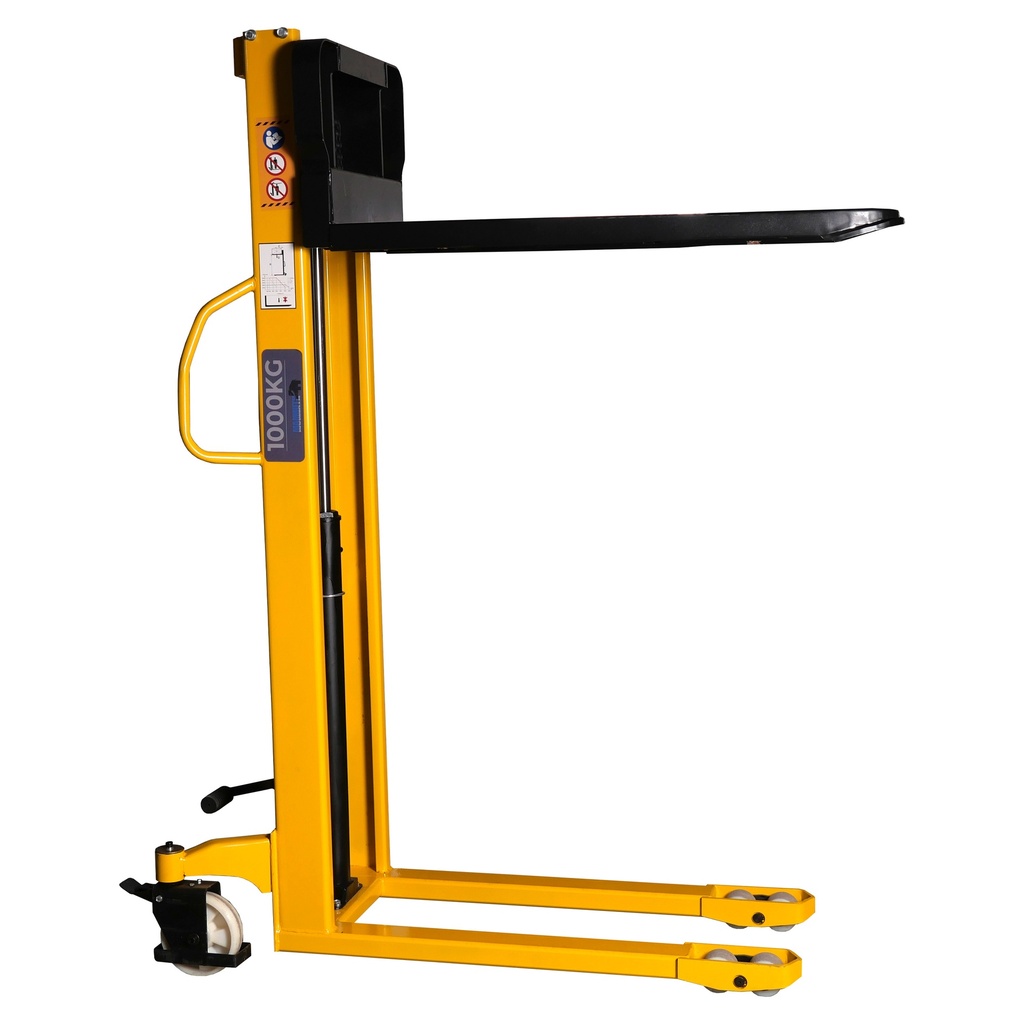

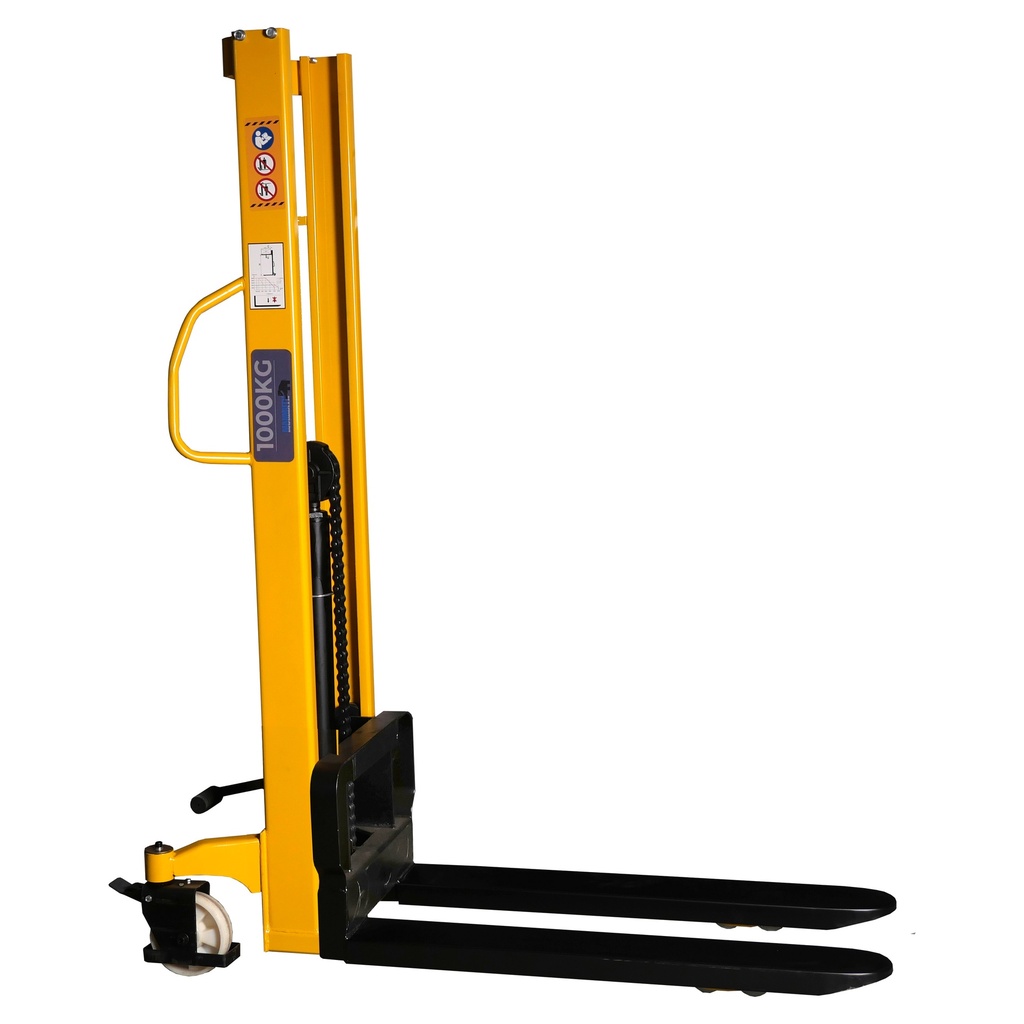

The manual stacker from Mammuth is an efficient solution for manual transport, stacking, and pallet positioning. With a lifting capacity of 1000 kg and a maximum lifting height of 160 cm, it is ideal for small warehouses, retail floors.
Designed with a minimized turning radius and compact size, this stacker is perfect for narrow passages and tight spaces, allowing for easy navigation even in confined areas.
Equipped with wheels that include a parking brake, the stacker ensures stability during loading and unloading. The C profile mast adds strength and durability for reliable performance under heavy loads.

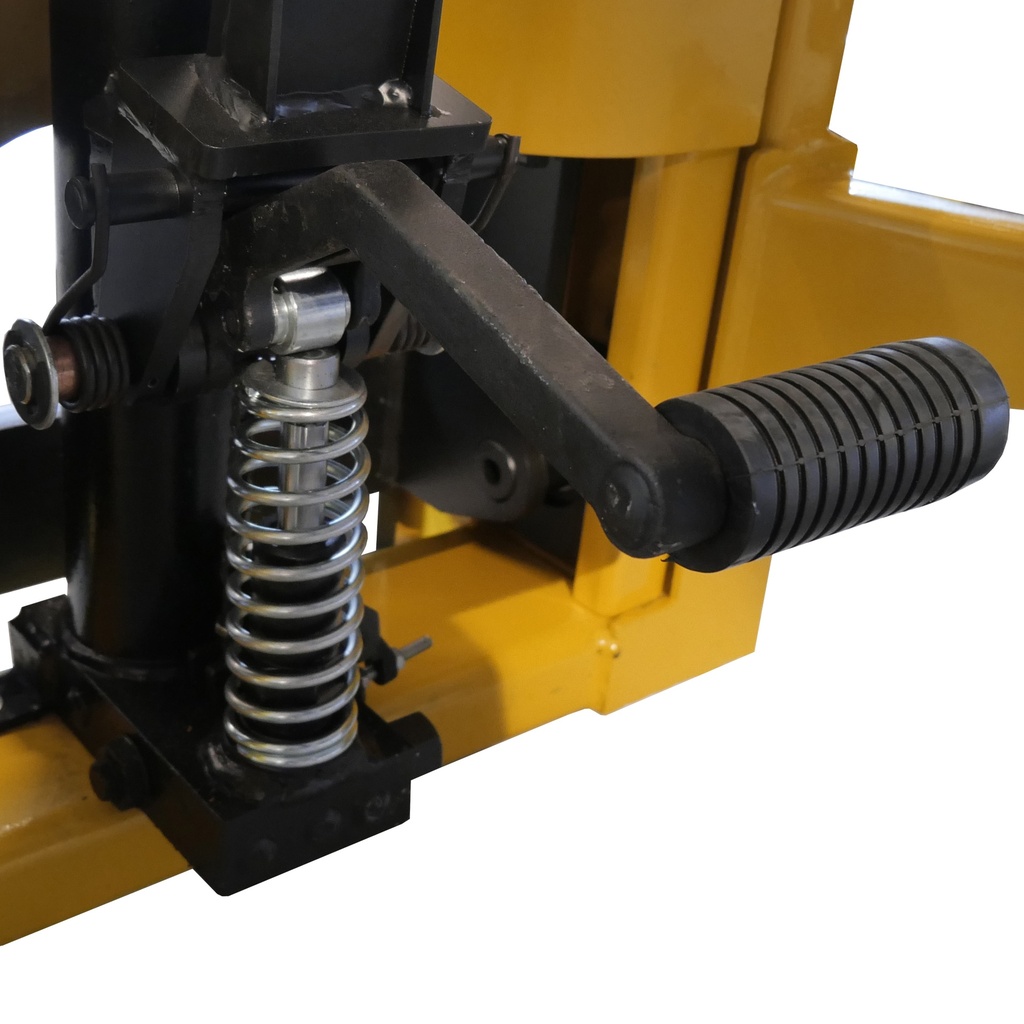

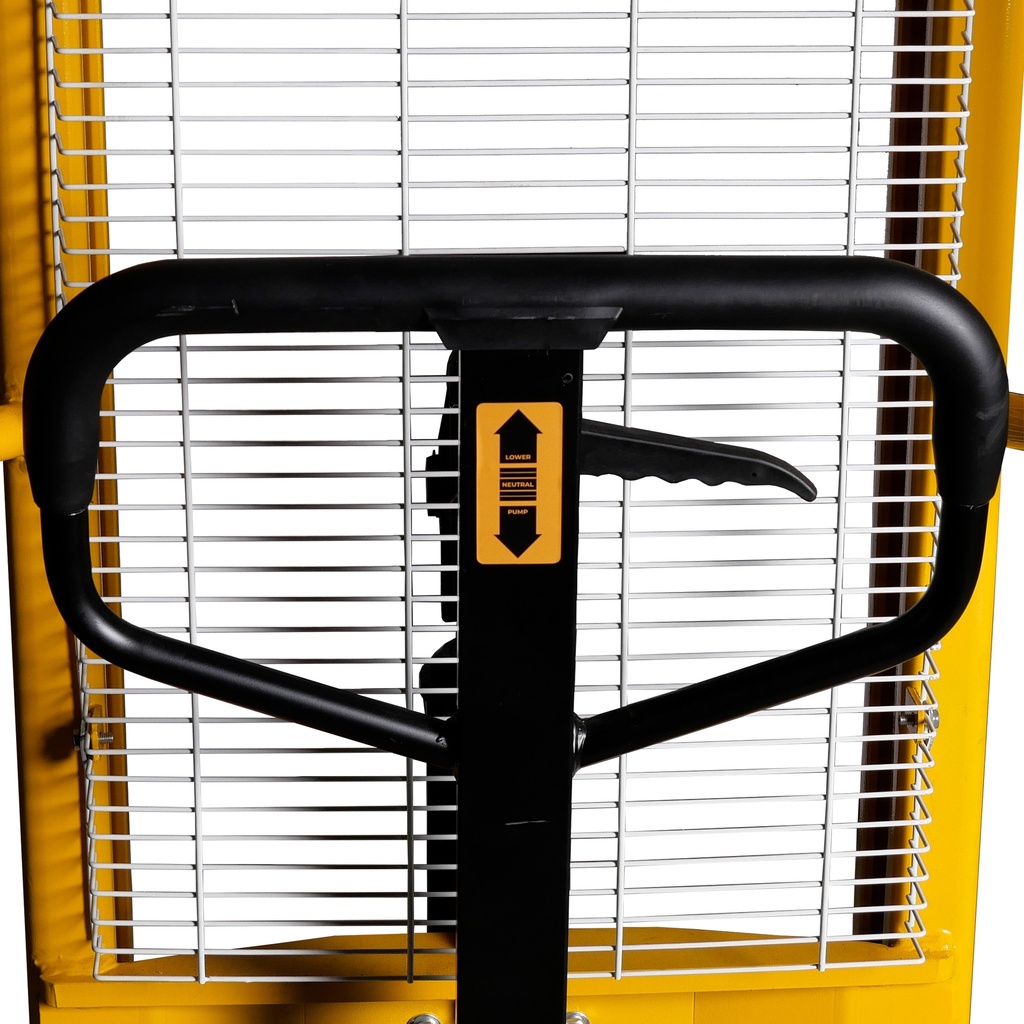

The handle and foot pedal lifting mechanism allows for smooth operation.
Made of high-strength steel, the stacker is durable and long-lasting. The pressure-resistant caster bracket protects the operator from injury, enhancing safety.
Technical specifications
- Lifting capacity = 1000 kg
- Fork size (length x width x height) = 1150 x 160 x 55 mm
- Wheel material = Nylon
- Lifting speed loaded = 16 mm/sec
- Turning radius = 1600 mm
- Fork overall width = 565 mm
- Lifting height range = 85 -1610 mm
- Total length = 1750 mm
- Total width = 750 mm
- Lowering speed loaded = Controllable
- Mast lowered height = 2005 mm
- Mast extend height = 2005 mm
Dimensions and weights
- Weight =155.0Kg
- Product weight =155.0Kg
- Length =1600.0mm
- Width =735.0mm
- Height =2020.0mm
- Product Length =1600.0mm
- Product Width =730.0mm
- Product Height =2020.0mm
