PRODUCT DESCRIPTION
High lifter / pallet truck / hand pallet truck / pump cart

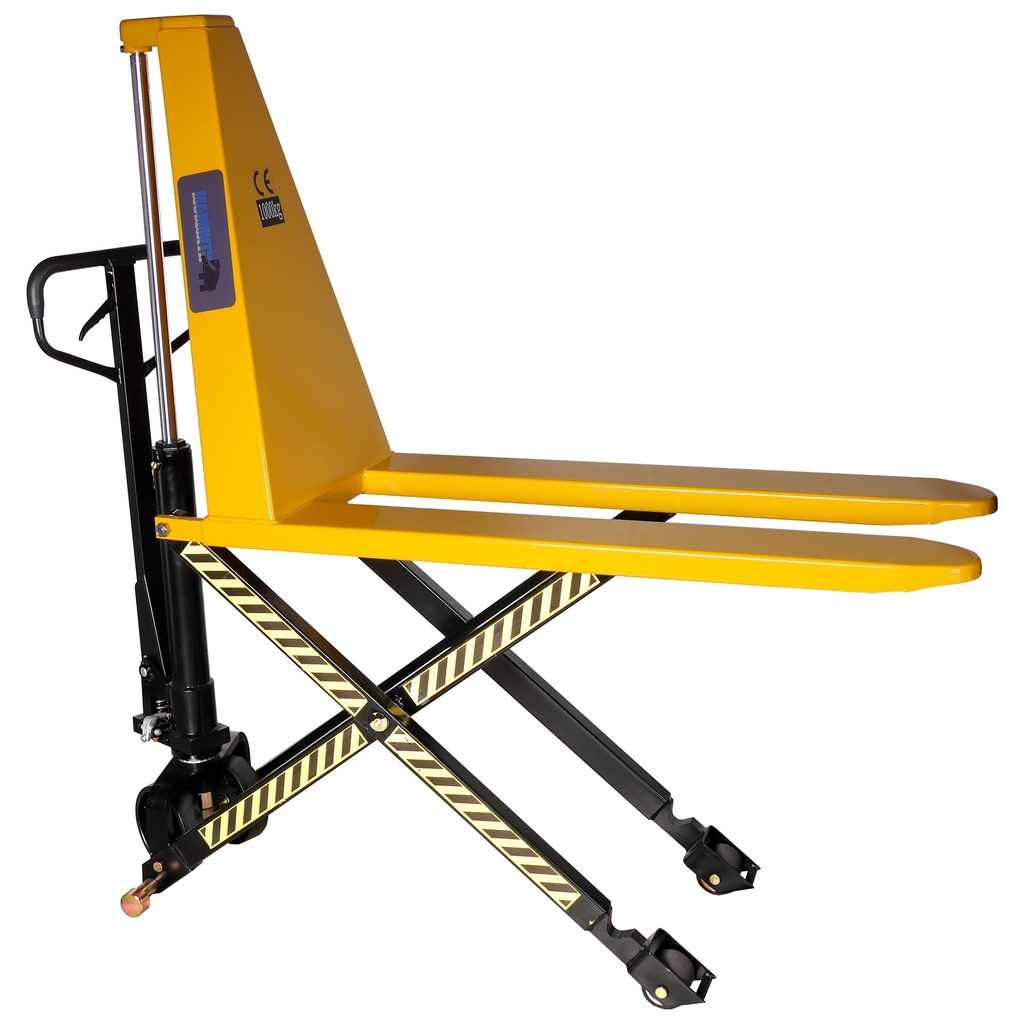

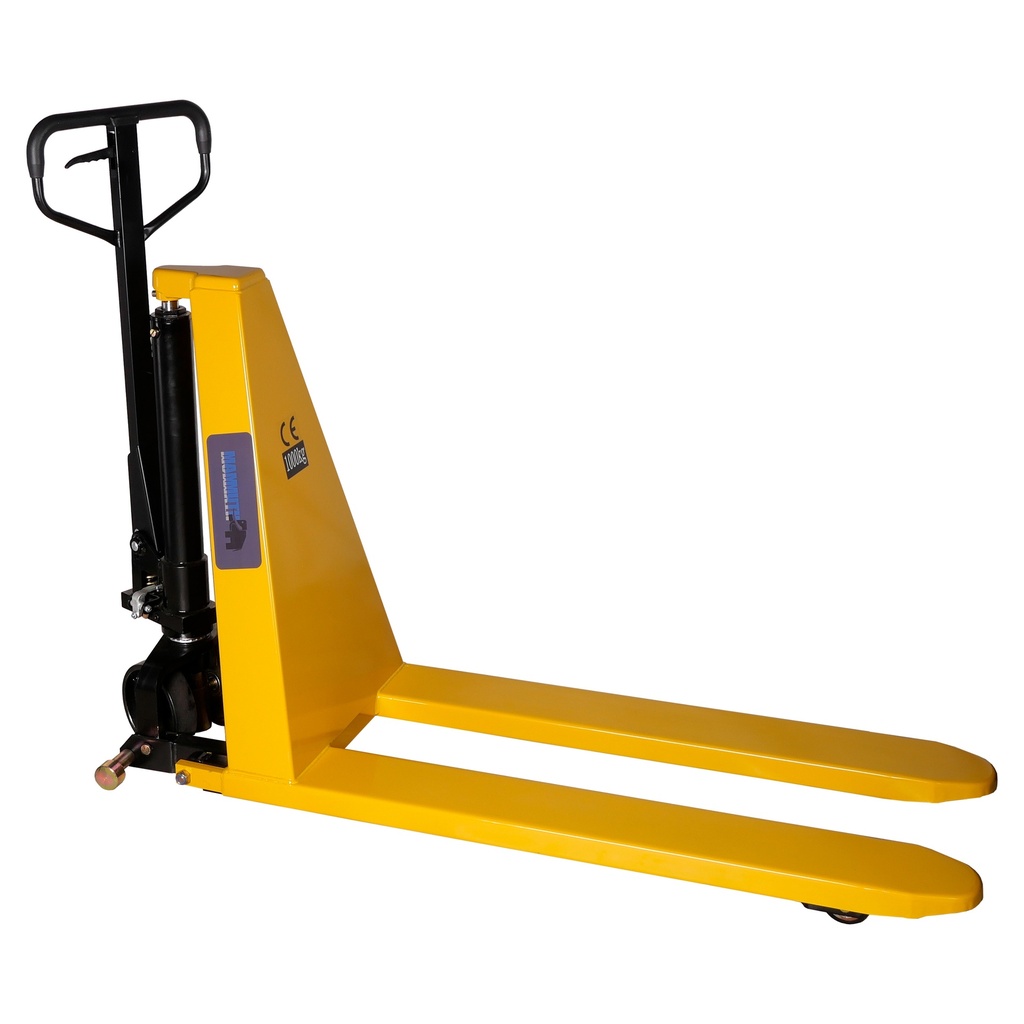

This Mammuth scissor pallet truck is ideal for moving and lifting pallets and for raising open pallets. The high lifter can be used as a standard pallet truck and lifting table.
Pallets up to 1000kg can be lifted easily and safely to an ergonomic and optimal working height of up to 800mm. The support legs touch the floor from a lifting height of 460mm for extra stability.

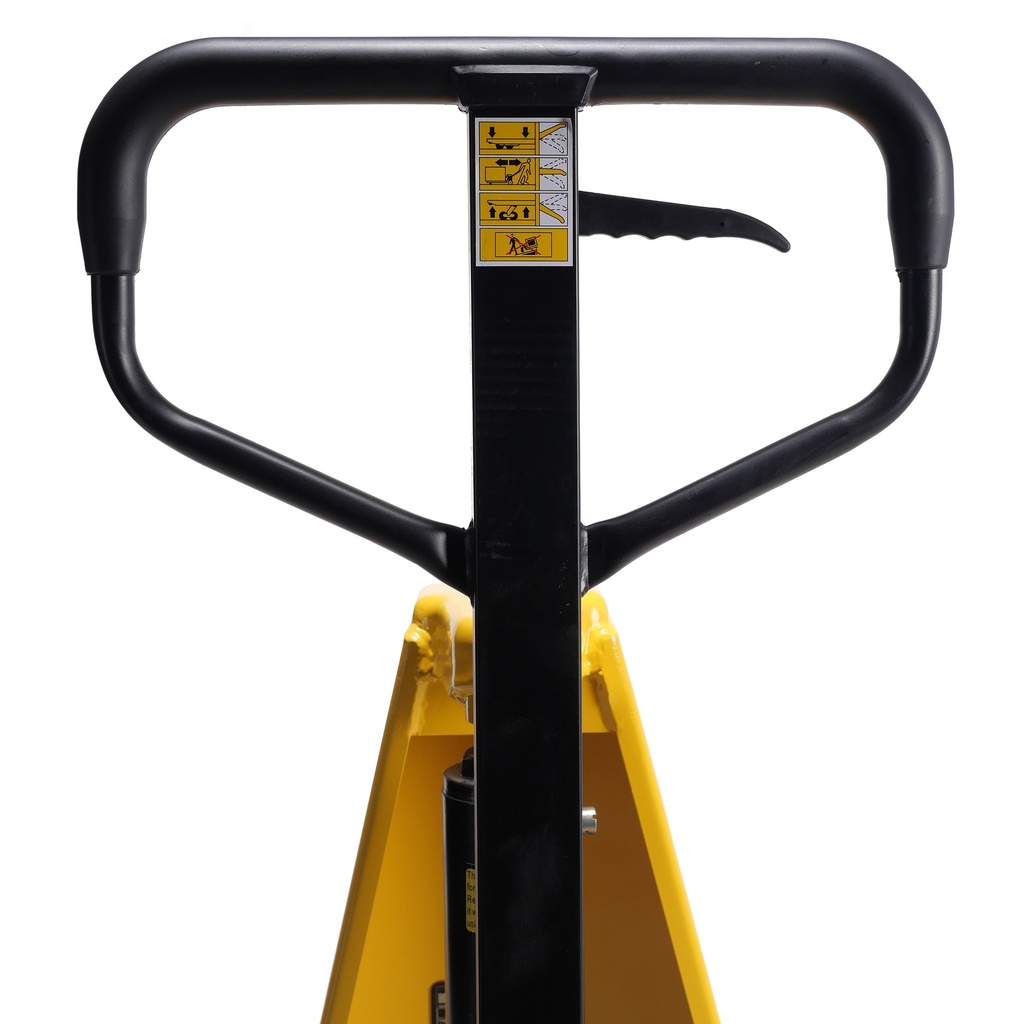

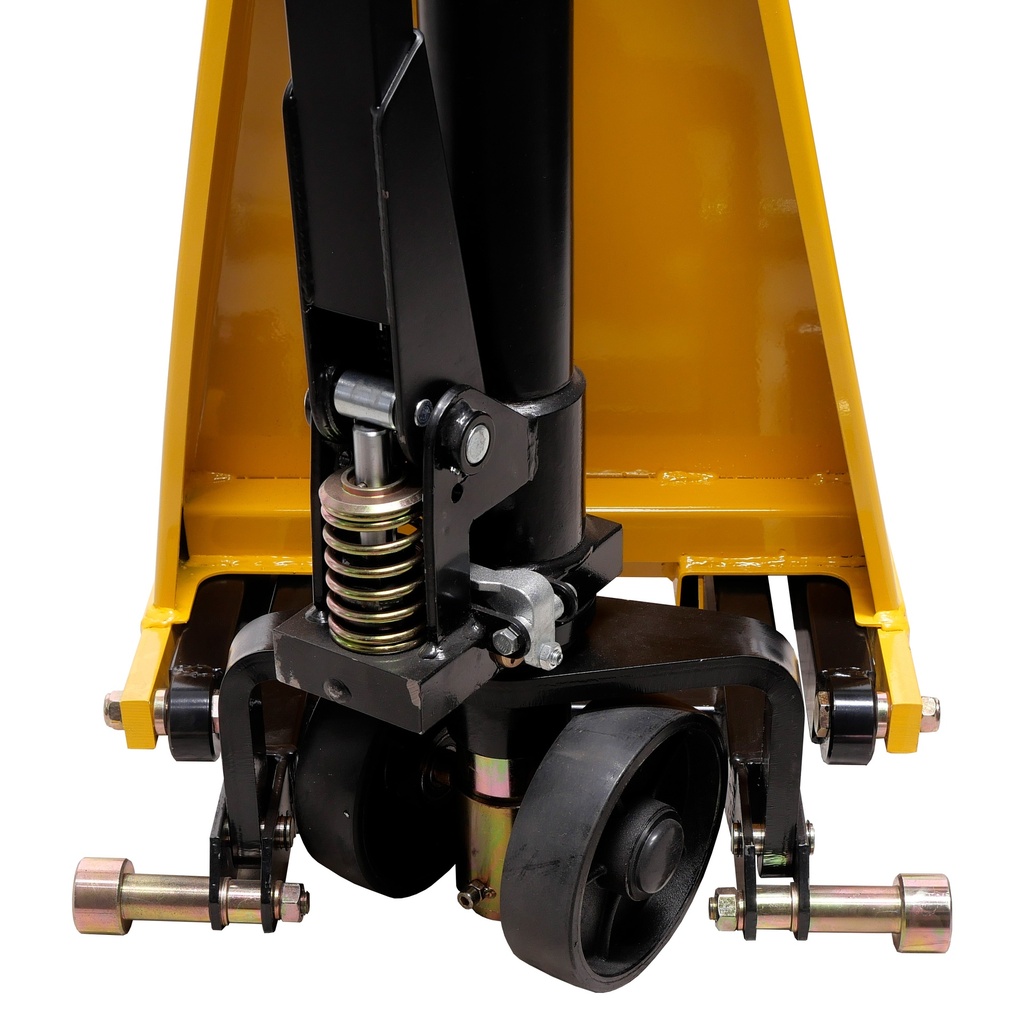

The scissor lift is also equipped with a rubber-coated handle, a robust cylinder and polyurethane steering and load wheels. The lifter also has a quick lift system, making lifting easy and fast.
Technical specifications
- Lifting capacity = 1000 kg
- Fork size (length x width x height) = 1150 x 160 x 85 mm
- Lifting height min. = 85 mm
- Lifting height max. = 800 mm
- Fork overall width = 540 mm
- Total height retracted = 1230 mm
- Total height extended = 1650 mm
- Wheel material = PU
- Load wheel diameter = 80 mm
- Steering wheel diameter = 180 mm
Dimensions and weights
- Weight =112.0Kg
- Product weight =112.0Kg
- Length =1700.0mm
- Width =540.0mm
- Height =940.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
